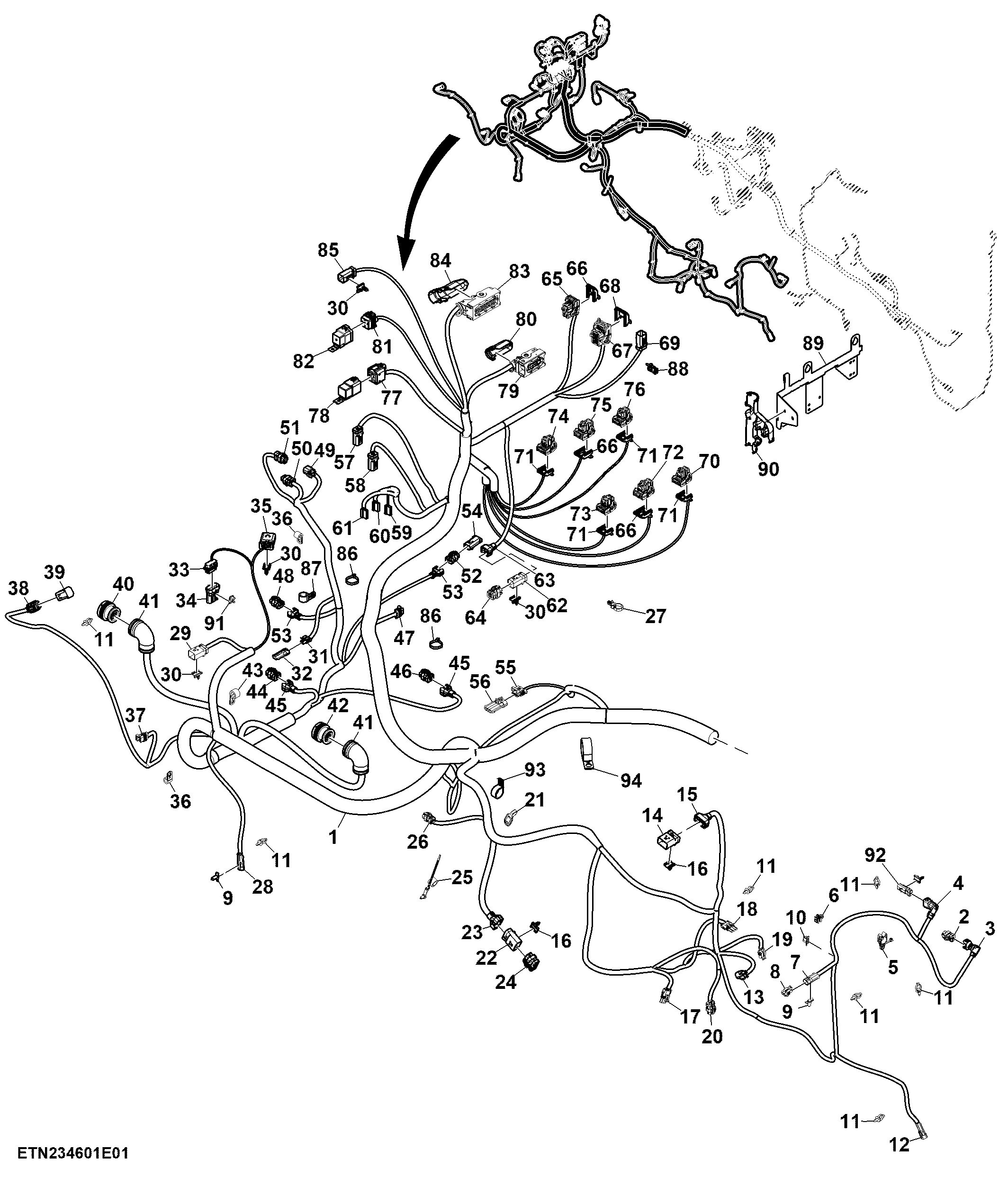

Wiring Harness, Chassis, 13.6 L T2/ T3 Engine (2/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA20856	1	Wiring Harness	-
2	57M9775	1	Elec. Connector Housing	Engine Interconnect, XX5083-1
3	57M14984	1	Elec. Connector Accessory	-
4	57M14967	1	Elec. Connector Accessory	-
5	TA18051	1	Tie Band	-
6	AH225366	1	Clip	-
7	57M7256	1	Elec. Connector Housing	Right Side Light Interconnect, XX403-2
8	57M7254	1	Elec. Connector Housing	-
8	57M7289	1	Elec.Connect Locking Device	-
9	57M8910	2	Clip	-
10	57M11952	1	Elec. Connector Accessory	-
11	RE258807	38	Tie Band	-
12	57M7985	1	Electrical Connector Assy	HYD Oil Filter Restriction SW, XS551
12	57M9712	1	Elec. Connector Accessory	-
13	57M8924	1	Elec. Connector Housing	HYD Oil Temperature, XB694
13	57M8633	1	Elec. Connector Accessory	-
14	57M9804	1	Elec. Connector Housing	Main To Rear Brakes Interconnect, XX024-1
15	57M14965	1	Elec. Connector Accessory	-
16	57M9939	2	Elec. Connector Accessory	-
17	RE12364	1	Electrical Connector Assy	Suspension Position Sensor, XB709
18	RE12364	1	Electrical Connector Assy	Suspension Pressure Motor, XM302
19	57M7254	1	Elec. Connector Housing	Suspension Bleed Valve, XY684
19	57M9712	1	Elec. Connector Accessory	-
20	57M9780	1	Elec. Connector Housing	Suspension Pressure Sensor, XB710
21	57M10528	1	Elec. Connector Accessory	-
22	57M9805	1	Elec. Connector Housing	Main To Hydraulic Trailer Brake Interconnect, XX790-1
23	57M14965	1	Elec. Connector Accessory	-
24	57M9801	1	Elec. Connector Housing	-
25	57M12055	1	Elec. Connector Accessory	-
26	57M9772	1	Elec. Connector Housing	Main To Fuel Sensor Interconnect, XX047-1
27	57M10233	4	Tie Band	-
28	57M7985	1	Electrical Connector Assy	Axle Filter Restrict Switch, XS555
28	57M9712	1	Elec. Connector Accessory	-
29	57M9796	1	Elec. Connector Housing	Main To Right Fender Lights Interconnect, XX702-1
30	57M9940	5	Elec. Connector Accessory	-
31	57M7254	1	Elec. Connector Housing	Main To Backup Alarm Interconnect, XX014-1
31	57M9523	1	Elec.Connect Locking Device	-
32	57M11253	1	Elec. Connector Housing	-
33	57M7262	1	Elec. Connector Housing	Main To Autoload Harness Interconnect, XX116-1
34	57M9213	1	Elec. Connector Housing	-
35	57M9804	1	Elec. Connector Housing	Main To Left Fender Lights Interconnect, XX701-1
36	57M12129	2	Clamp	-
37	57M7255	1	Elec. Connector Housing	Main To Sensor Tension Right Interconnect, XX305-1
37	57M7290	1	Elec. Connector Accessory	-
38	57M9786	1	Elec. Connector Housing	Rockshaft Pos, XB698
39	57M11336	1	Elec. Connector Accessory	-
40	57M9513	1	Elec. Connector Housing	Main To Steering/Break Sensor Interconnect 2, XX321-1
41	57M9227	2	Elec. Connector Accessory	-
42	57M12674	1	Elec. Connector Housing	Main To Steering/Break Sensor Interconnect 1, XX320-1
43	57M12137	1	Clamp	-
44	57M9817	1	Elec. Connector Housing	Right Steering Cross Shaft Speed Sensor, XB208
45	57M14979	2	Elec. Connector Accessory	-
46	57M9817	1	Elec. Connector Housing	Left Steering Cross Shaft Speed Sensor, XB201
47	57M7290	1	Elec. Connector Accessory	-
47	57M7255	1	Elec. Connector Housing	Main To Sensor Tension Left Interconnect, XX304-1
48	57M9780	1	Elec. Connector Housing	Axle Supply Pressure, XB711
49	57M11378	1	Elec. Connector Housing	Hydro Loop Override 1, XY719
49	57M11380	1	Elec. Connector Accessory	-
50	57M9780	1	Elec. Connector Housing	Right Hydro Pressure, XB203
51	57M9780	1	Elec. Connector Housing	Left Hydro Pressure, XB202
52	57M9780	1	Elec. Connector Housing	Draft Sensor, XX721-1
53	57M14977	2	Elec. Connector Accessory	-
54	57M11334	1	Elec. Connector Accessory	-
55	57M7255	1	Elec. Connector Housing	Diagnostic Pressure, X289
55	57M7290	1	Elec. Connector Accessory	-
56	57M7257	1	Elec. Connector Housing	-
57	57M9821	1	Elec. Connector Housing	Main To Rear Camera Interconnect, XX140-2
58	57M9821	1	Elec. Connector Housing	Main To Front Camera Interconnect, XX141-2
59	R77476	1	Electrical Connector Assy	Washer Pump Front 1 Output, XM01
60	R77476	1	Electrical Connector Assy	Washer Pump Front 2 Output, XM02
61	R77476	1	Electrical Connector Assy	Washer Pump Front 3 Output, XM03
62	57M9789	1	Elec. Connector Housing	Main To PTO Interconnect, XX303-1
63	57M14963	1	Elec. Connector Accessory	-
64	57M9786	1	Elec. Connector Housing	-
65	57M10615	1	Elec. Connector Housing	MECA - Cab Controller 1, XA107-1
66	57M10613	3	Elec. Connector Housing	-
67	57M10329	1	Elec. Connector Housing	MECA - Cab Controller 3, XA107-3
68	57M10401	1	Elec. Connector Accessory	-
69	57M9939	1	Elec. Connector Accessory	-
69	57M9789	1	Elec. Connector Housing	Main To Left Worklights Interconnect, XX131-1
70	57M10607	1	Elec. Connector Housing	Steer By Wire System Unit (XBBA) 3, XA985-3
71	57M10604	4	Elec. Connector Housing	-
72	57M10615	1	Elec. Connector Housing	Steer By Wire System Unit (XBBA) 2, XA985-2
73	57M10609	1	Elec. Connector Housing	Steer By Wire System Unit (XBBA) 1, XA985-1
74	57M10611	1	Elec. Connector Housing	Steer By Wire System Unit (XBBB) 3, XA986-3
75	57M10614	1	Elec. Connector Housing	Steer By Wire System Unit (XBBB) 2, XA986-2
76	57M10605	1	Elec. Connector Housing	Steer By Wire System Unit (XBBB) 1, XA986-1
77	57M8233	1	Electrical Connector Assy	Implement Power Relay, XKE100
78	AL156697	1	Relay	-
79	57M13340	1	Elec. Connector Housing	Main To Cab Interconnect 2, XX501-1
80	57M13343	1	Elec. Connector Accessory	-
81	57M7555	1	Elec. Connector Housing	ECU Power, XKE01
82	57M12655	1	Elec. Connector Accessory	-
83	57M8730	1	Elec. Connector Housing	Main To Cab Interconnect 1, XX500-1
84	57M8738	1	Elec. Connector Accessory	-
85	57M9789	1	Elec. Connector Housing	Main To Right Worklights Interconnect, XX133-1
86	R44302	10	Tie Band	-
87	57M12123	2	Clamp	-
88	57M10747	1	Elec. Connector Accessory	-
89	-	1	Part 100	ORDER TA20856
90	-	1	Part 101	ORDER TA20856
91	57M11407	1	Elec. Connector Accessory	-
92	57M9779	1	Elec. Connector Housing	Engine Interconnect 2, XX5083–3
93	57M13310	1	Clamp	-
94	57M13313	1	Clamp	-
