Открытый узел

SCV Coupler, 3/4 Inch, High Flow, Attachment

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

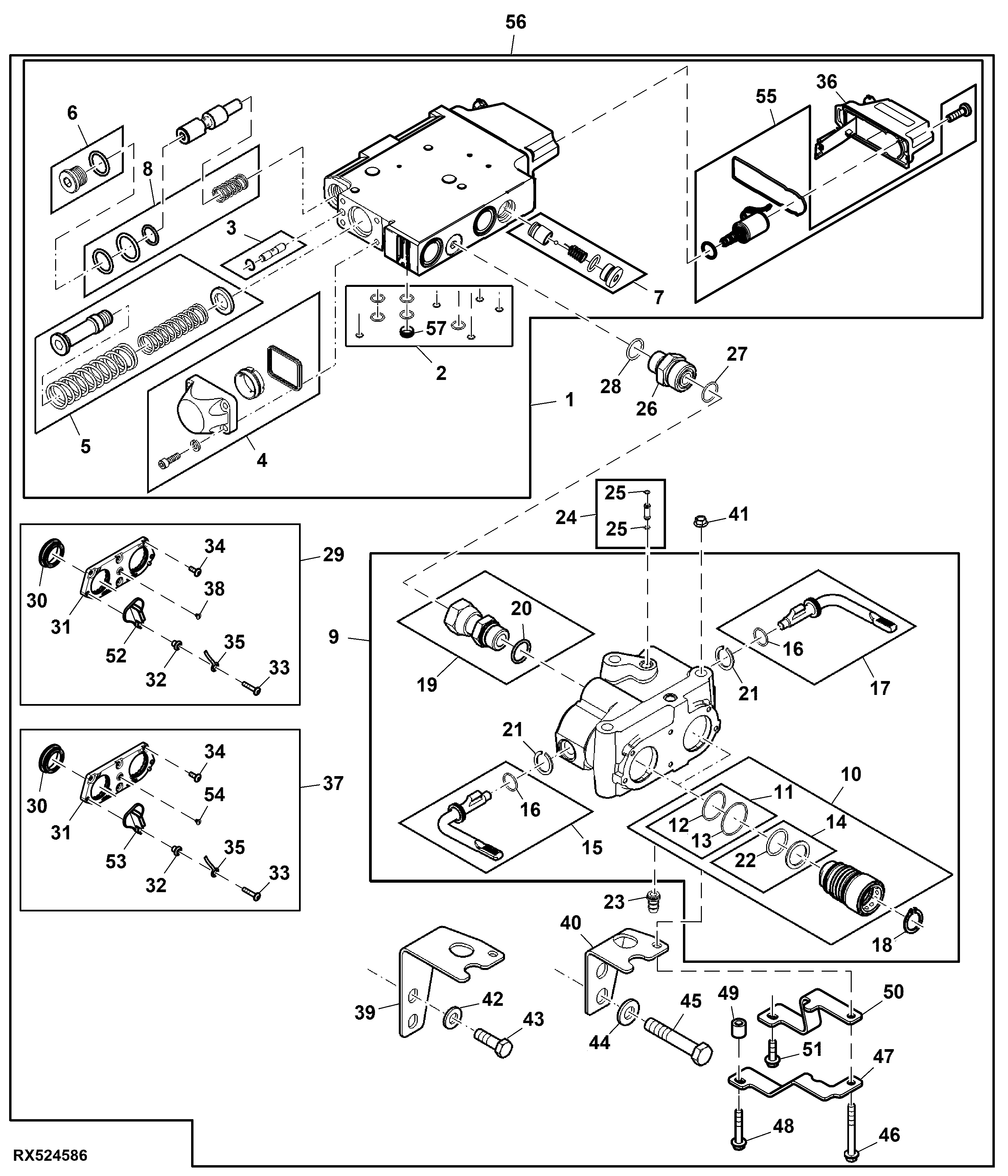

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE588376	1	Selective Control Valve	170 LPM, SUB FOR RE580229 OR RE337471
2	RE582808	1	Seal Kit	SUB FOR RE279692
3	RE279693	1	Valve Kit	SCV Workport Shuttle, USE WITH RE307841
4	RE279694	1	Cap Kit	-
5	RE568184	1	Spring Kit	Valve Spool Centering
6	RE279696	1	Plug Kit	-
7	RE591268	2	Check Valve	Load Check Valve, USE WITH RE588376 OR RE580229
8	RE568186	1	Spring Kit	-
9	RE590178	1	Breakaway Coupler	SUB FOR RE573039
10	RE581131	2	Breakaway Coupler	SUB FOR RE298945
11	RE582546	2	Seal Kit	-
12	R151702	2	O-Ring	-
13	T78784	2	O-Ring	-
14	RE327412	2	Seal Kit	-
15	R551312	1	Lever	LH
16	R27564	2	O-Ring	-
17	R551313	1	Lever	RH
18	R298956	2	Snap Ring	-
19	RE312257	2	Fitting	USE WITH RE573039
19	RE590177	2	Fitting	USE WITH RE590178
20	51M7047	2	O-Ring	23.600 X 2.900 mm
21	R207188	2	Ring	-
22	R235245	2	O-Ring	-
23	R267668	2	Hose Fitting	-
24	RE312613	2	Tube	-
25	R10093	4	O-Ring	-
26	38H5121	2	Adapter Fitting	-
27	T77858	2	O-Ring	-
28	51M7045	2	O-Ring	19.300 X 2.200 mm
29	RE575270	1	Cover	Number V, Violet, SCV Coupler
30	R552415	4	Grommet	-
31	R552413	2	Retainer	-
32	-	4	Part 33	-
33	19M9178	4	Screw	M6 X 30
34	19M8648	8	Screw	M6 X 16
35	-	4	Part 36	-
36	RE567605	1	Electronic Control Unit	USE WITH RE580229
36	RE588374	1	Electronic Control Unit	USE WITH RE588376
37	RE574695	1	Cover	Number I, Green, SCV Coupler, SUB FOR RE309618
38	L200313	1	Plug	-
39	R551361	1	Bracket	W/O Hitch, USE WITH 19M7837
40	R551362	1	Bracket	W/ Hitch
41	14M7299	1	Flange Nut	M12
42	24M7242	2	Washer	21.400 X 42 X 5 mm
43	19M9154	2	Cap Screw	M20 X 60
44	24M7243	2	Washer	25.400 X 50 X 6 mm
45	19M9375	2	Cap Screw	M24 X 130
46	19M7837	1	Screw	M12 X 110
47	R556198	1	Support	-
48	19M7817	1	Screw	M12 X 70
49	E84200	1	Spacer	13 X 25.400 X 25.400 mm (0.512" X 1" X 1")
50	R555856	1	Support	-
51	19M7791	1	Bolt	M12 X 40
52	-	2	Part 54	-
53	-	2	Part 55	-
54	L102157	1	Plug	-
55	RE580941	1	Valve Kit	SCV Pilot Valve, SUB FOR RE341710
56	BRE10107	1	Breakaway Coupler	-
57	R540643	1	Valve	SCV Service Shuttle

SCV Coupler, 3/4 Inch, High Flow, Attachment

Нет текстового описания
