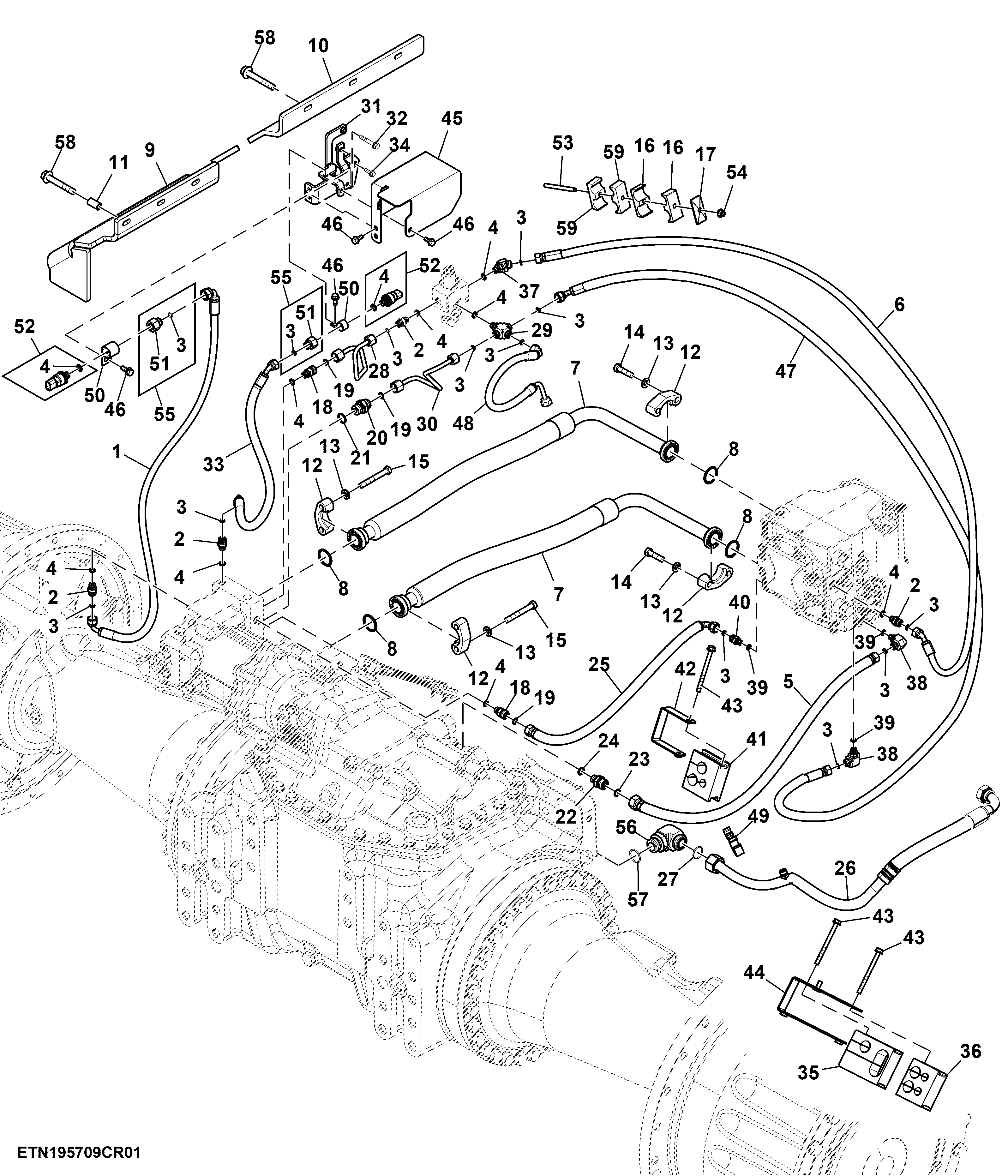

Oil Lines, Steering Pump, W/ Hitch, W/ Quick Coupler, W/ PTO, 130 cc (2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA15165	1	Oil Line	Loop Sensor, High Pressure
2	38H5002	4	Adapter Fitting	INCLUDES 51M7041
3	T77613	13	O-Ring	-
4	51M7041	10	O-Ring	11.300 X 2.200 mm
5	RE584518	1	Hydraulic Hose	Pump to Motor
6	RE583891	1	Hydraulic Hose	Charge Line Loop Over Ride Valve
7	RE583412	2	Oil Line	Pump to Motor Valve, INCLUDES T78393
8	T78393	4	O-Ring	-
9	TR109238	1	Cover	-
10	R307879	1	Cover	-
11	28H3387	3	Bushing	0.493" X 0.675" X 1-1/4"
12	AT131685	8	Flange Fitting	-
13	24M7047	16	Washer	13 X 24 X 2.500 mm
14	19M7496	8	Cap Screw	M12 X 45
15	19M7943	8	Cap Screw	M12 X 90
16	H115379	2	Clamp	-
17	H112567	1	Plate	-
18	38H5009	2	Adapter Fitting	INCLUDES 51M7041
19	T77857	3	O-Ring	-
20	38H5076	1	Adapter Fitting	INCLUDES 51M7045
21	51M7045	1	O-Ring	19.300 X 2.200 mm
22	38H5010	1	Adapter Fitting	-
23	T77932	1	O-Ring	-
24	51M7043	1	O-Ring	15.300 X 2.200 mm
25	RE584520	1	Hydraulic Hose	Pump to Motor Spool Valve
26	RE587769	1	Hydraulic Hose	Steering Motor Case Drain
27	T76938	1	O-Ring	-
28	RE583201	1	Oil Line	Motor Valve to Solenoid Valve Block
29	38H5147	1	Fitting	-
30	RE583200	1	Oil Line	Motor Valve to Solenoid Valve Block
31	TR106778	1	Bracket	-
32	19M7803	2	Screw	M8 X 70
33	RE583207	1	Hydraulic Hose	-
34	19M7786	2	Screw	M10 X 30
35	R559682	1	Block Clamp	-
36	R562964	1	Block Clamp	-
37	38H5208	1	Adapter Fitting	-
38	38H5022	2	Elbow Fitting	INCLUDES 51M7040
39	51M7040	3	O-Ring	9.300 X 2.200 mm
40	38H5008	1	Adapter Fitting	INCLUDES 51M7040
41	R560564	1	Block Clamp	-
42	RE584581	1	Bracket	-
43	19M7970	3	Screw	M8 X 100
44	RE584580	1	Bracket	-
45	R563400	1	Bracket	USE WITH BXX10823
45	TR106779	1	Bracket	-
46	19M7866	6	Screw	M8 X 20
47	RE587298	1	Hydraulic Hose	Pump Control Drain
48	RE587795	1	Hydraulic Hose	Loop Over Ride Tank
49	Z102278	1	Clamp	-
50	R72659	2	Clamp	-
51	TR105750	2	Adapter Fitting	-
52	RE584420	2	Pressure Sensor	840 Bar Sensor
53	L173496	1	Stud	-
54	14M7298	1	Flange Nut	M8
55	TA10845	2	Adapter Fitting	-
56	38H1037	1	Elbow Fitting	-
57	R29936	1	O-Ring	-
58	19M7808	6	Screw	M10 X 65
59	H114897	2	Clamp	-

Oil Lines, Steering Pump, W/ Hitch, W/ Quick Coupler, W/ PTO, 130 cc (2/2)
