Открытый узел

Oil Line, Steering Pump, W/O Hitch, 130 cc (2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24M7047	8	Washer	13 X 24 X 2.500 mm
2	28H3387	3	Bushing	0.493" X 0.675" X 1-1/4"
3	R307879	1	Cover	-
4	19M7866	6	Screw	M8 X 20
5	H115379	2	Clamp	-
6	38H5009	2	Adapter Fitting	INCLUDES 51M7041
7	51M7041	9	O-Ring	11.300 X 2.200 mm
8	H112567	1	Plate	-
9	AT131685	4	Flange Fitting	-
10	RE583201	1	Oil Line	Motor Valve to Solenoid Valve Block
11	RE583207	1	Hydraulic Hose	-
12	19M7803	2	Screw	M8 X 70
13	RE583200	1	Oil Line	Motor Valve to Solenoid Valve Block
14	RE583412	2	Oil Line	Pump to Motor Valve, INCLUDES T78393
15	T78393	4	O-Ring	-
16	T77857	3	O-Ring	-
17	38H5076	1	Adapter Fitting	INCLUDES 51M7045
18	51M7045	1	O-Ring	19.300 X 2.200 mm
19	19M7786	2	Screw	M10 X 30
20	24M7242	3	Washer	21.400 X 42 X 5 mm
21	19M9154	3	Cap Screw	M20 X 60
22	R559682	1	Block Clamp	-
23	RE584518	1	Hydraulic Hose	Pump to Motor
24	RE584520	1	Hydraulic Hose	Pump to Motor Spool Valve
25	R560564	1	Block Clamp	-
26	19M7943	8	Cap Screw	M12 X 90
27	19M7970	3	Screw	M8 X 100
28	RE584580	1	Bracket	-
29	38H5208	1	Adapter Fitting	-
30	RE584581	1	Bracket	-
31	RE587298	1	Hydraulic Hose	Pump Control Drain
32	R562964	1	Block Clamp	-
33	RE583891	1	Hydraulic Hose	Charge Line Loop Over Ride Valve
34	T76938	1	O-Ring	-
35	RE587769	1	Hydraulic Hose	Steering Motor Case Drain
36	RE587795	1	Hydraulic Hose	Loop Over Ride Tank
37	Z102278	1	Clamp	-
38	H114897	2	Clamp	-
39	T77613	9	O-Ring	-
40	TR105750	2	Adapter Fitting	-
41	L173496	1	Stud	-
42	14M7298	1	Flange Nut	M8
43	RE584420	2	Pressure Sensor	840 Bar Sensor
44	TR109238	1	Cover	-
45	TA11383	1	Bracket	-
46	14M7285	3	Nut	M10
47	TR106779	1	Bracket	-
48	TR106778	1	Bracket	-
49	TA15165	1	Oil Line	Loop Sensor, High Pressure
50	R72659	2	Clamp	-
51	38H5010	1	Adapter Fitting	-
52	T77932	1	O-Ring	-
53	51M7043	1	O-Ring	15.300 X 2.200 mm
54	38H1037	1	Elbow Fitting	-
55	R29936	1	O-Ring	-
56	38H5147	1	Fitting	-
57	38H5002	3	Adapter Fitting	INCLUDES 51M7041
58	19M7808	6	Screw	M10 X 65

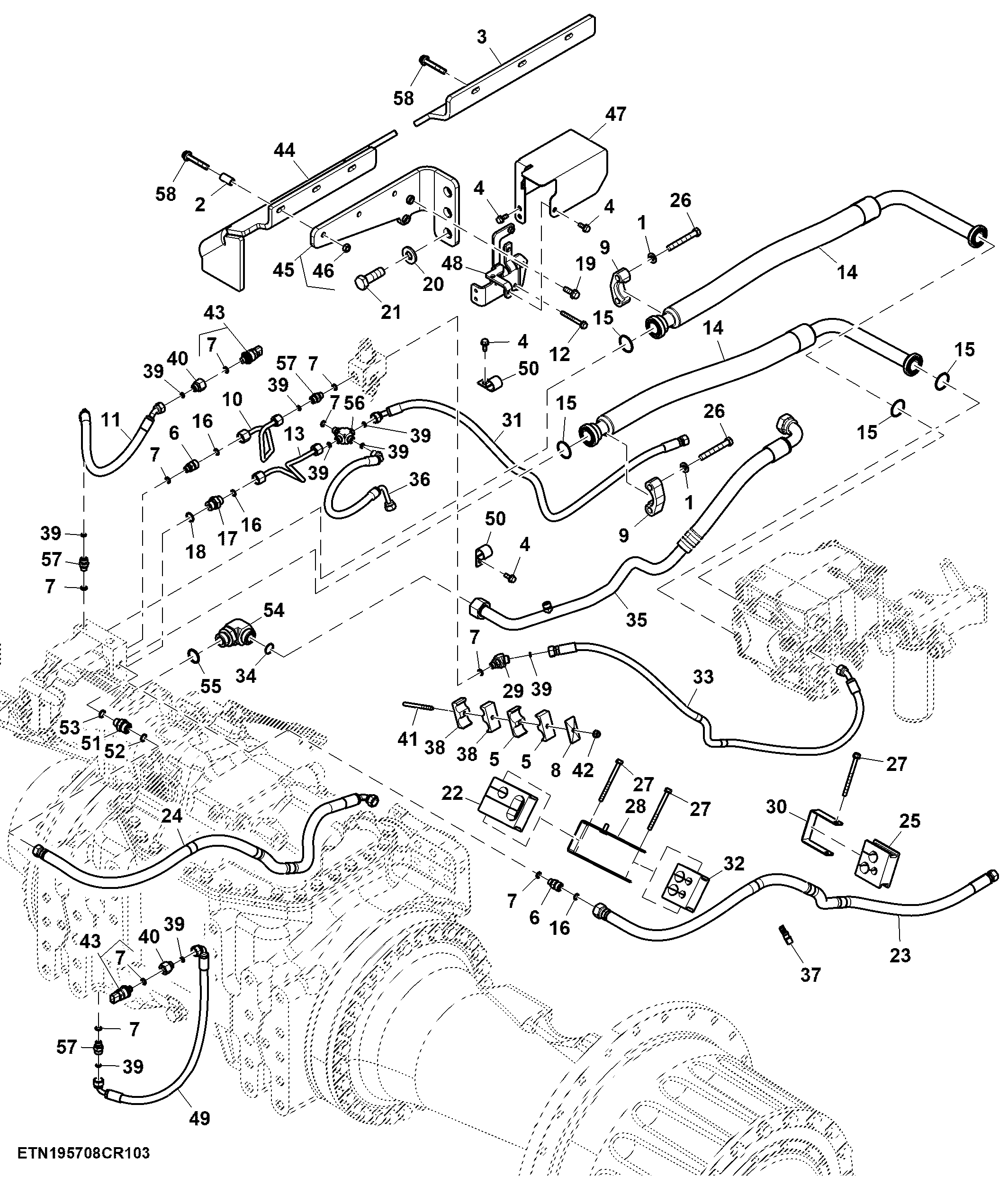

Oil Line, Steering Pump, W/O Hitch, 130 cc (2/2)
