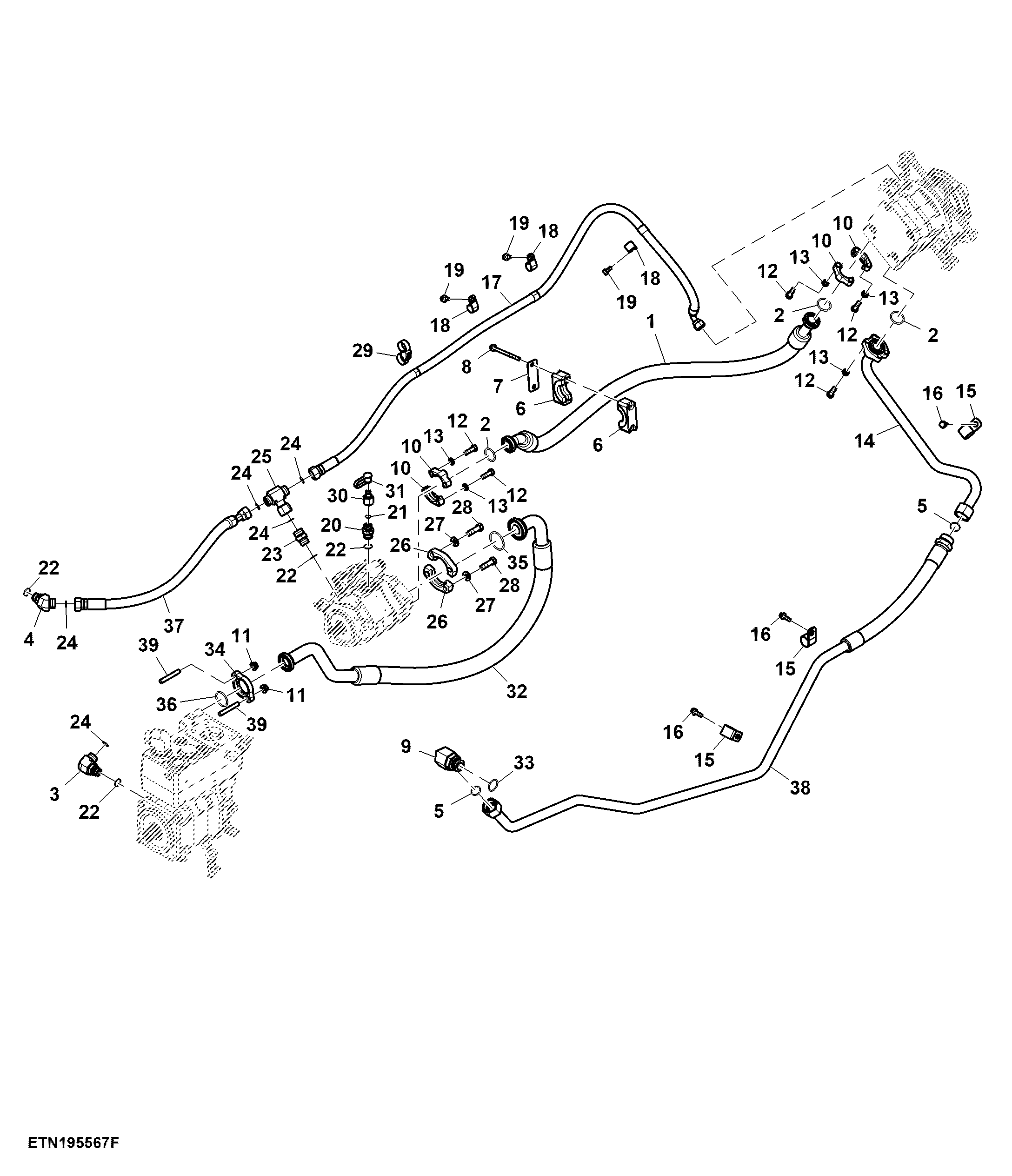

Fan Drive Lines and Fittings, 13.6 L, FT4/ Stage 5 Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA20898	1	Hydraulic Hose	Fan Drive Pressure, INCLUDES (2) T78313
2	T78313	3	O-Ring	-
3	38H5018	1	Elbow Fitting	-
4	38H5146	1	Elbow Fitting	-
5	T76938	2	O-Ring	-
6	AH230729	2	Hose Clamp	-
7	TR111457	1	Bracket	-
8	19M7970	2	Screw	M8 X 100
9	38H5020	1	Elbow Fitting	-
10	H61354	4	Flange Fitting	-
11	14M7296	2	Flange Nut	M10
12	19M7662	12	Cap Screw	M10 X 30
13	24M7106	12	Washer	10 X 18 X 2.500 mm
14	TA17930	1	Oil Line	Fain Drive Return, INCLUDES T78313
15	R72659	3	Clamp	-
16	19M7867	3	Screw	M8 X 25
17	TA19386	1	Hydraulic Hose	Fan Drive Case Drain
18	E53830	3	Clamp	-
19	19M7865	3	Screw	M8 X 16
20	38H5076	1	Adapter Fitting	INCLUDES 51M7045
21	T77857	1	O-Ring	-
22	51M7045	4	O-Ring	19.300 X 2.200 mm
23	38H5004	1	Adapter Fitting	INCLUDES 51M7045
24	T77932	5	O-Ring	-
25	38H5216	1	Tee Fitting	-
26	X51H-24	2	Flange Fitting	-
27	24M7240	4	Washer	13 X 25 X 3 mm
28	19M7493	4	Cap Screw	M12 X 40
29	R213663	1	Clamp	-
30	RE43774	1	Diagnostic Coupling	-
31	R77175	1	Cover	-
32	TA10174	1	Oil Line	Fan Drive Suction, INCLUDES 51M7065, T78393 AND R175113
33	51M7048	1	O-Ring	29.600 X 2.900 mm
34	R175113	1	Flange Fitting	-
35	51M7065	1	O-Ring	47.219 X 3.531 mm
36	T78393	1	O-Ring	-
37	TA17851	1	Hydraulic Hose	Rear Case Drain Line
38	TA22374	1	Oil Line	Fain Drive Rear Return, INCLUDES T76938
39	R516238	2	Stud	-

Fan Drive Lines and Fittings, 13.6 L, FT4/ Stage 5 Engine
