Chassis Wiring Harness, Extremity Position Lights

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA20865	1	Wiring Harness	INCLUDES (8) RE258807
2	57M11853	1	Elec. Connector Housing	Main Chassis Interconnect, XX003-2
2	RWA11036	1	Repair Wire Assembly	Cavity 4, 3, 8, 9, 18, 17
3	RE258807	8	Tie Band	-
4	57M9776	1	Elec. Connector Housing	CAN Terminator, XA916
4	57M11134	1	Elec. Connector Housing	-
4	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
5	TR110462	4	Clamp	-
6	57M9789	1	Elec. Connector Housing	ATD Harness Interconnect, XX171-2
6	RWA11025	1	Repair Wire Assembly	Cavity 1, 4, 5
7	57M15934	1	Elec. Connector Accessory	-
8	57M9940	2	Elec. Connector Accessory	-
9	57M15076	1	Elec. Connector Housing	Right Extremity Lights Interconnect, XX133-1
9	RWA11108	1	Repair Wire Assembly	Cavity 1, 2, 3
10	57M15077	1	Elec. Connector Housing	-
11	57M14930	1	Elec. Connector Housing	Right Side Light, XE329
12	57M9784	1	Elec. Connector Housing	Worklight Jumper Interconnect, XX401-1
12	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3
13	57M15917	1	Elec. Connector Accessory	-
14	57M9780	1	Elec. Connector Housing	-
15	57M12093	1	Elec. Connector Accessory	-
16	TR110464	4	Screw	-
17	R44302	3	Tie Band	-

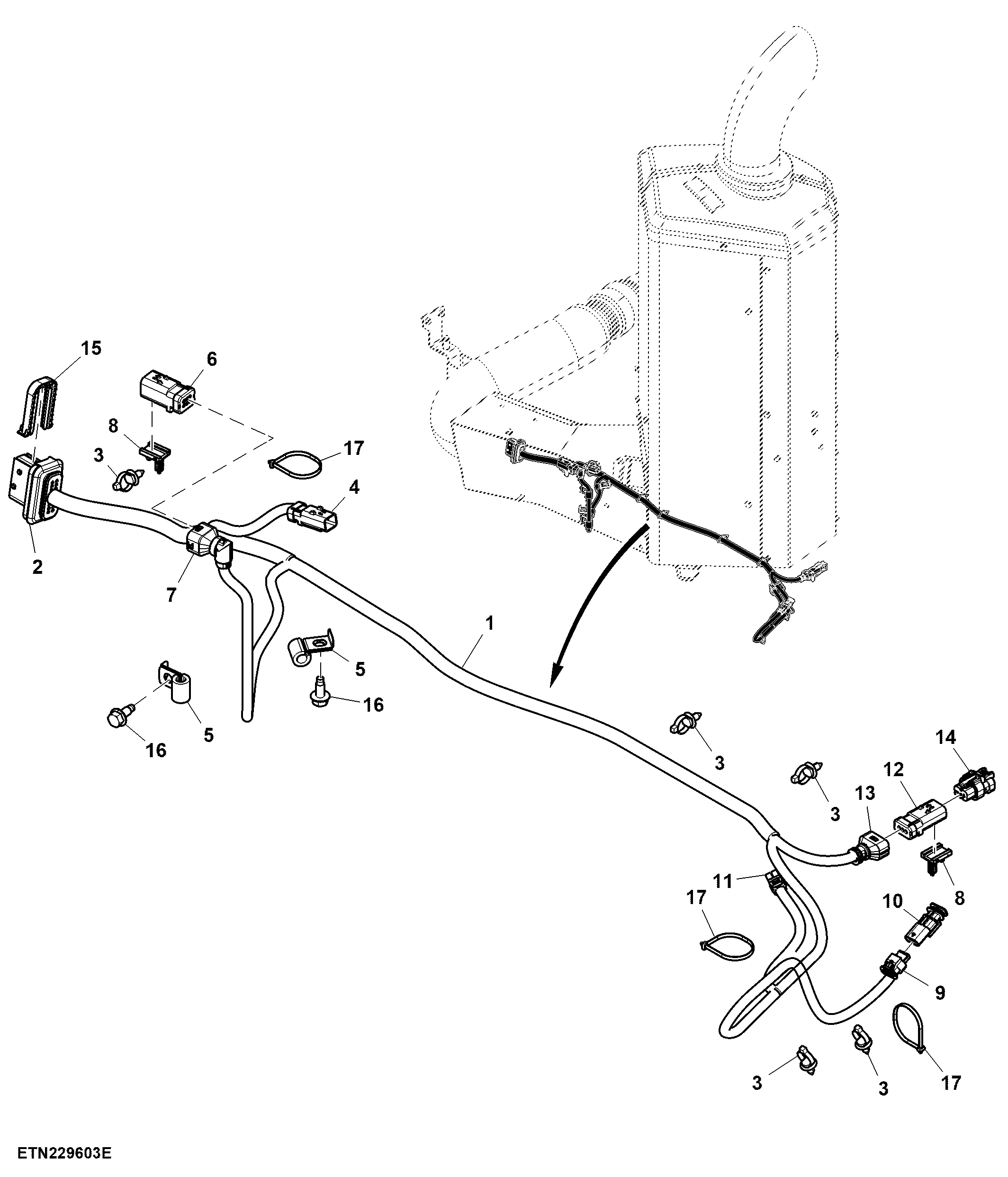

Chassis Wiring Harness, Extremity Position Lights
