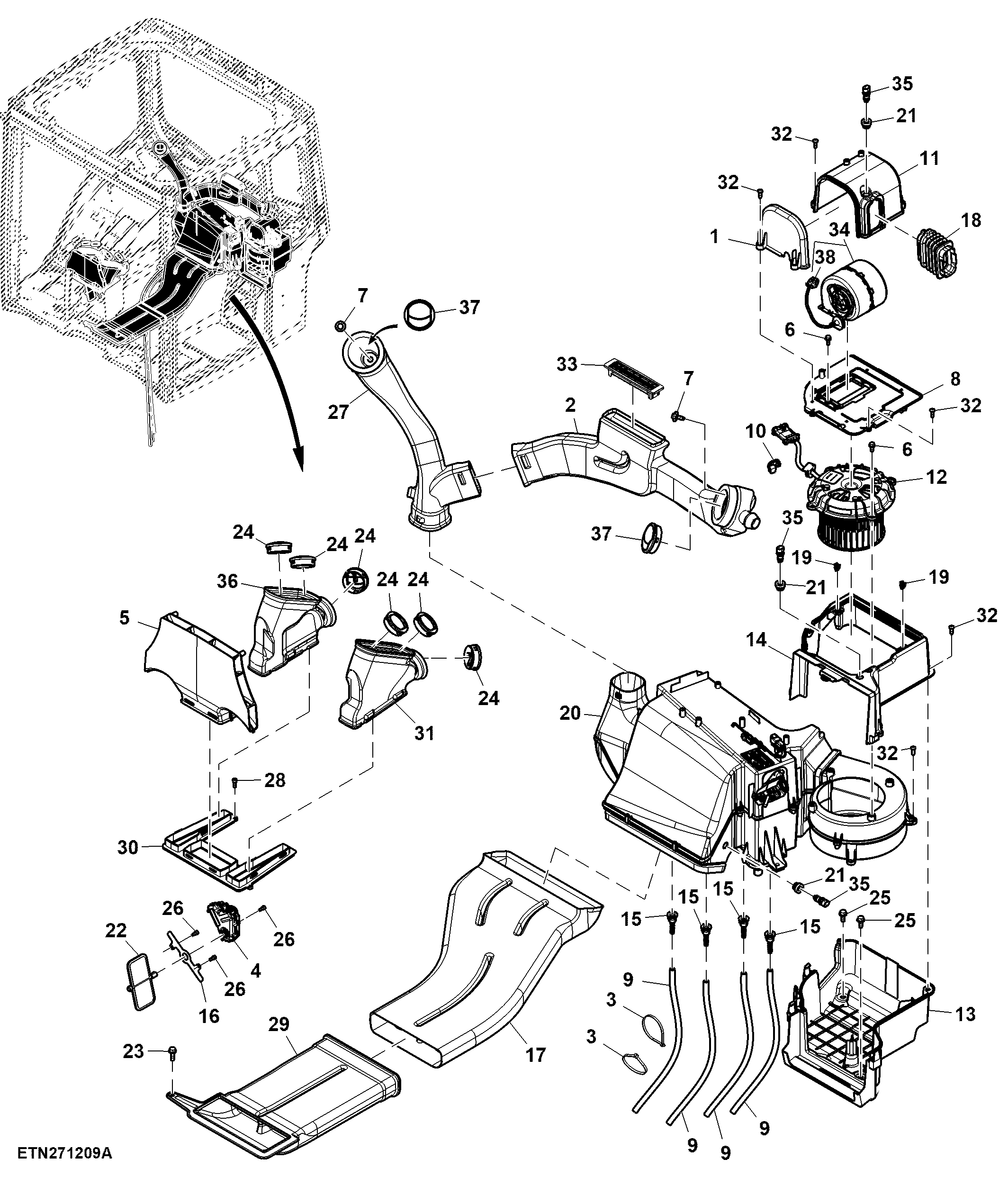

Air Conditioner, HVAC System; Hybrid

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R569143	1	Air Duct	Pressurizer Front Housing Cover
2	R569801	1	Air Duct	LH, Rear Duct
3	R105388	2	Tie Band	-
4	RE593781	1	Actuator	-
5	R569802	1	Air Duct	Front Control Support, Center Duct
6	19M10529	7	Screw	M6 X 12
7	19M7864	2	Screw	M8 X 12
8	R569146	1	Air Duct	Top Cover, Mixing Box
9	R568661	4	Line	Condensate Drain Hose
10	L206646	1	Tie Band	-
11	R571263	1	Air Duct	Pressurizer Rear Housing Cover
12	RE582716	1	Fan	Recirculation Fan Assembly
13	R569134	1	Air Duct	Lower Mixing Box
14	R569136	1	Air Duct	Upper Mixing Box
15	TR120236	4	Grommet	-
16	R561298	1	Cover	-
17	R569147	1	Air Duct	Rear Floor
18	R571344	1	Air Duct	Bellows
19	R120160	2	Clip	-
20	RE593786	1	Module	-
21	T388350	3	Grommet	-
22	R557162	1	Air Duct	Mode Door, Front Control Support
23	19M7867	1	Screw	M8 X 25
24	TR119163	6	Louver	SUB FOR RE589924
25	19M7866	7	Screw	M8 X 20
26	19M7600	5	Screw	M5 X 12
27	R569800	1	Air Duct	RH, Rear Duct
28	19M8553	4	Screw	M6 X 16
29	R569141	1	Air Duct	Front Floor
30	R565301	1	Air Duct	Control Support, Adapter Plate
31	R569151	1	Air Duct	Front Control Support, LH Duct
32	R224342	12	Screw	-
33	RE594562	1	Louver	-
34	TA22164	1	Blower	-
35	RE65815	3	Sensor	Air Temperature
36	R569148	1	Air Duct	Front Control Support, RH Duct
37	TR119164	2	Louver	SUB FOR RE582732
38	57M8839	1	Elec. Connector Housing	-
