Wiring Harness, SCV Extension, W/ Rear Hitch and Quick Coupler

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M12741	2	Elec. Connector Accessory	-
2	R552932	1	Bracket	-
3	RE258807	5	Tie Band	-
4	19M7866	1	Screw	M8 X 20
5	14M7273	1	Nut	M8
6	TA20853	1	Wiring Harness	-
7	57M9511	1	Elec. Connector Housing	Rear Implement To Main Chassis Interconnect, XX321-2
8	57M8035	2	Nut	-
9	57M9061	2	Elec.Connect Locking Device	-
10	57M10485	2	Elec. Connector Accessory	-
11	57M11837	1	Elec. Connector Housing	Rear Implement To Main Chassis Interconnect, XX320-2
12	57M10299	1	Elec. Connector Housing	Trailer Lights Interconnect, XX705-1
13	57M9498	1	Elec. Connector Housing	SCV 1, XA701
14	57M11897	6	Elec. Connector Accessory	-
15	57M9498	1	Elec. Connector Housing	Hitch Control Valve Unit, XA800
16	57M9498	1	Elec. Connector Housing	SCV 2, XA702
17	57M9498	1	Elec. Connector Housing	SCV 3, XA703
18	57M9498	1	Elec. Connector Housing	SCV 4, XA704
19	57M9498	1	Elec. Connector Housing	SCV 5, XA705
20	H224073	1	Tie Band	-
21	57M11354	1	Elec. Connector Housing	-
21	57M9500	1	Elec. Connector Accessory	-
22	57M9786	1	Elec. Connector Housing	Rear Camera, XA991
22	57M11336	1	Elec. Connector Accessory	-
22	57M9940	1	Elec. Connector Accessory	-
23	57M14988	1	Elec. Connector Accessory	-
24	57M14213	1	Elec. Connector Housing	Implement Connector, XA917-1
25	57M8635	1	Elec. Connector Housing	Implemnt CAN, XA917-2
25	57M8016	1	Elec.Connect Locking Device	-
26	RE12363	1	Electrical Connector Assy	Implement Switch, XS549
27	R78053	1	Electrical Connector Assy	-
28	57M12125	1	Clamp	-
29	57M10198	6	Elec. Connector Housing	-

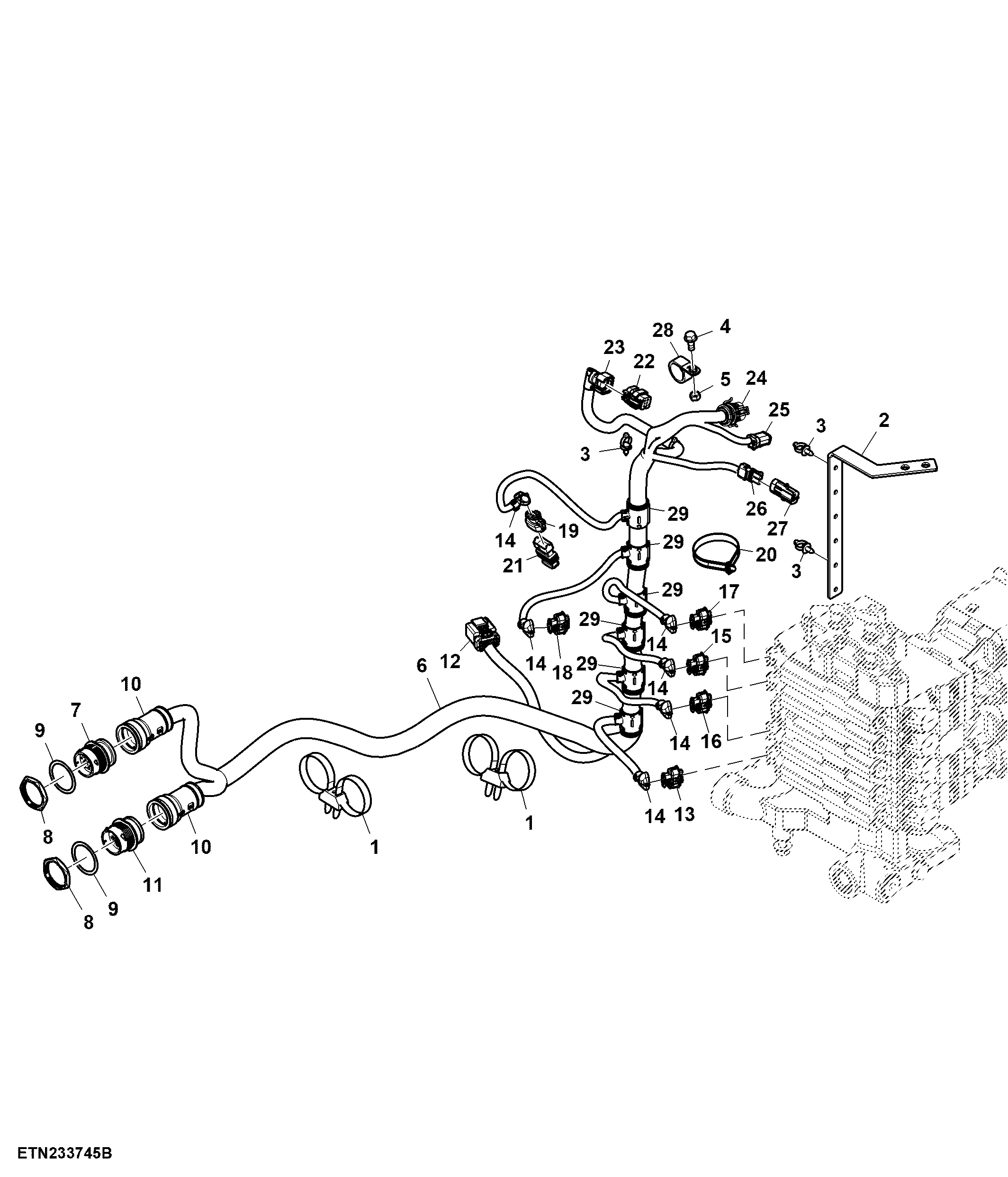

Wiring Harness, SCV Extension, W/ Rear Hitch and Quick Coupler
