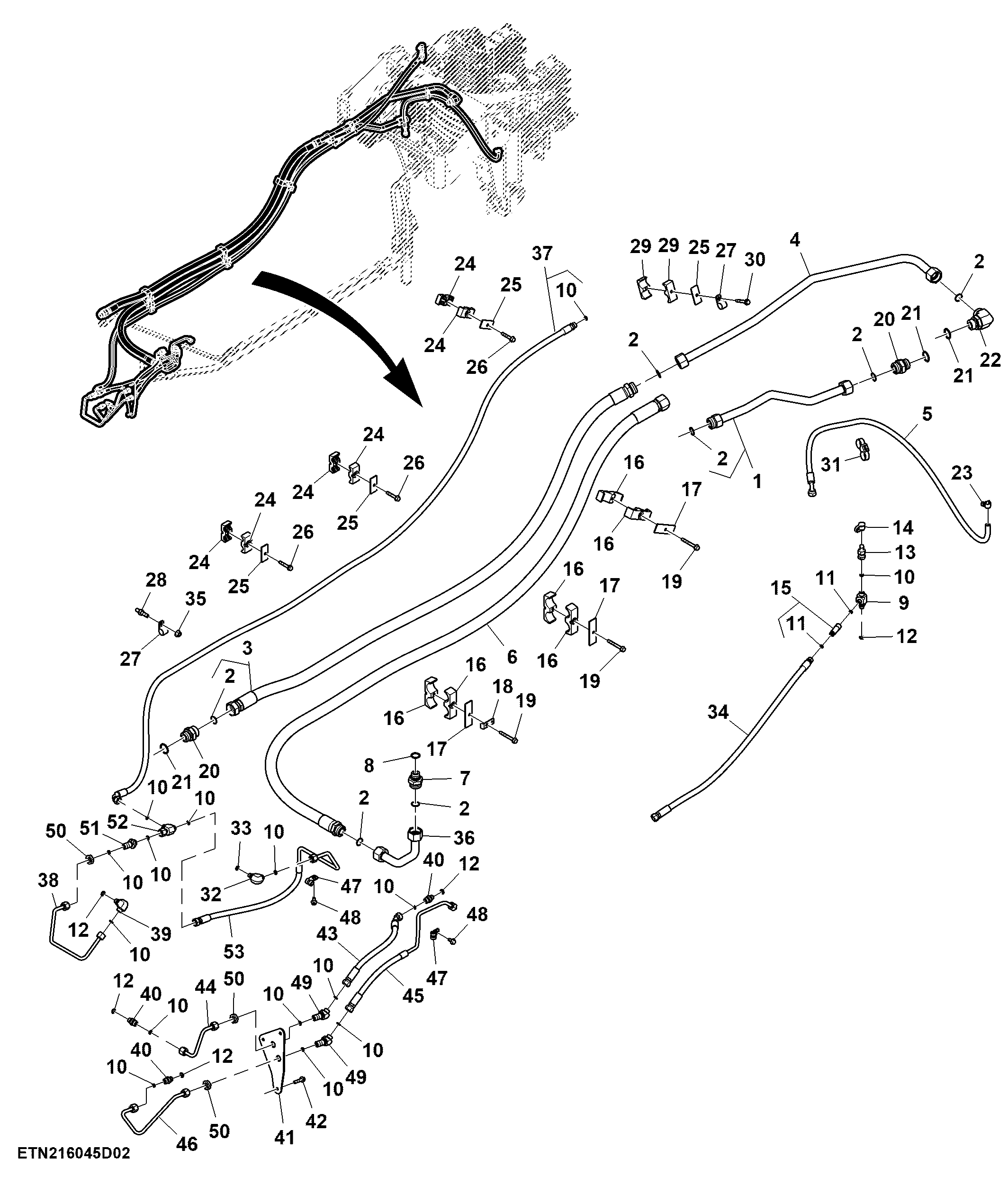

Rear SCV Lines, High Flow, W/ 4 or 6 SCV, W/O Hitch, W/ Scraper, W/ PST (2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE568314	1	Oil Line	Rear SCV Supply Line
2	T76938	7	O-Ring	-
3	RE567962	1	Hydraulic Hose	SCV Return
4	RE567416	1	Hydraulic Hose	SCV Return
5	RE569368	2	Hydraulic Hose	SCV Drain Hose to Differential Case
6	TA18437	1	Hydraulic Hose	SCV Supply, INCLUDES T76938
7	38H5014	1	Adapter Fitting	-
8	51M7047	1	O-Ring	23.600 X 2.900 mm
9	38H5275	1	Adapter Fitting	-
10	T77613	15	O-Ring	-
11	T77814	2	O-Ring	-
12	51M7041	5	O-Ring	11.300 X 2.200 mm
13	RE60701	1	Diagnostic Coupling	-
14	R77175	1	Cover	-
15	RE264764	1	Check Valve	High Flow SCV Load Sense
16	H150222	6	Hose Clamp	-
17	H114901	3	Plate	-
18	R326532	1	Bracket	-
19	19M7802	3	Screw	M8 X 65
20	38H5006	2	Adapter Fitting	INCLUDES 51M7048
21	51M7048	3	O-Ring	29.600 X 2.900 mm
22	38H5020	1	Elbow Fitting	-
23	R202160	1	Clamp	-
24	H135155	6	Clamp	-
25	H112567	4	Plate	-
26	19M7799	3	Screw	M8 X 45
27	E53830	2	Clamp	-
28	T161803	1	Stud	-
29	H115379	2	Clamp	-
30	19M8319	1	Screw	M8 X 50
31	R213663	1	Clamp	-
32	38H5022	1	Elbow Fitting	INCLUDES 51M7041
33	51M7040	1	O-Ring	9.300 X 2.200 mm
34	RE344963	1	Hydraulic Hose	Standard Flow SCV Load Sense
35	14M7296	1	Flange Nut	M10
36	TA18433	1	Oil Line	Standard SCV Supply Line
37	TA14328	1	Hydraulic Hose	SCV Load Sense Line, Scraper
38	TA14260	1	Oil Line	SCV Load Sense Line
39	38H5016	1	Elbow Fitting	INCLUDES 51M7041
40	38H5002	3	Adapter Fitting	INCLUDES 51M7041
41	TR111294	1	Bracket	-
42	19M8291	3	Screw	M8 X 35
43	TA18436	1	Hydraulic Hose	Priority Valve Load Sense Hose
44	TA14263	1	Oil Line	Priority Valve Load Sense Line
45	TA18431	1	Hydraulic Hose	Load Sense Combi-Line for Standard Pump
46	TA14264	1	Oil Line	Load Sense Line for Standard Pump
47	T269643	2	Clamp	-
48	19M7865	2	Screw	M8 X 16
49	38H5458	2	Elbow Fitting	-
50	38H5091	3	Nut	11/16"
51	38H5100	1	Union Fitting	-
52	38H5105	1	Tee Fitting	-
53	TA18430	1	Oil Line	High Flow Load Sense Combi-Line

Rear SCV Lines, High Flow, W/ 4 or 6 SCV, W/O Hitch, W/ Scraper, W/ PST (2/2)
