Открытый узел

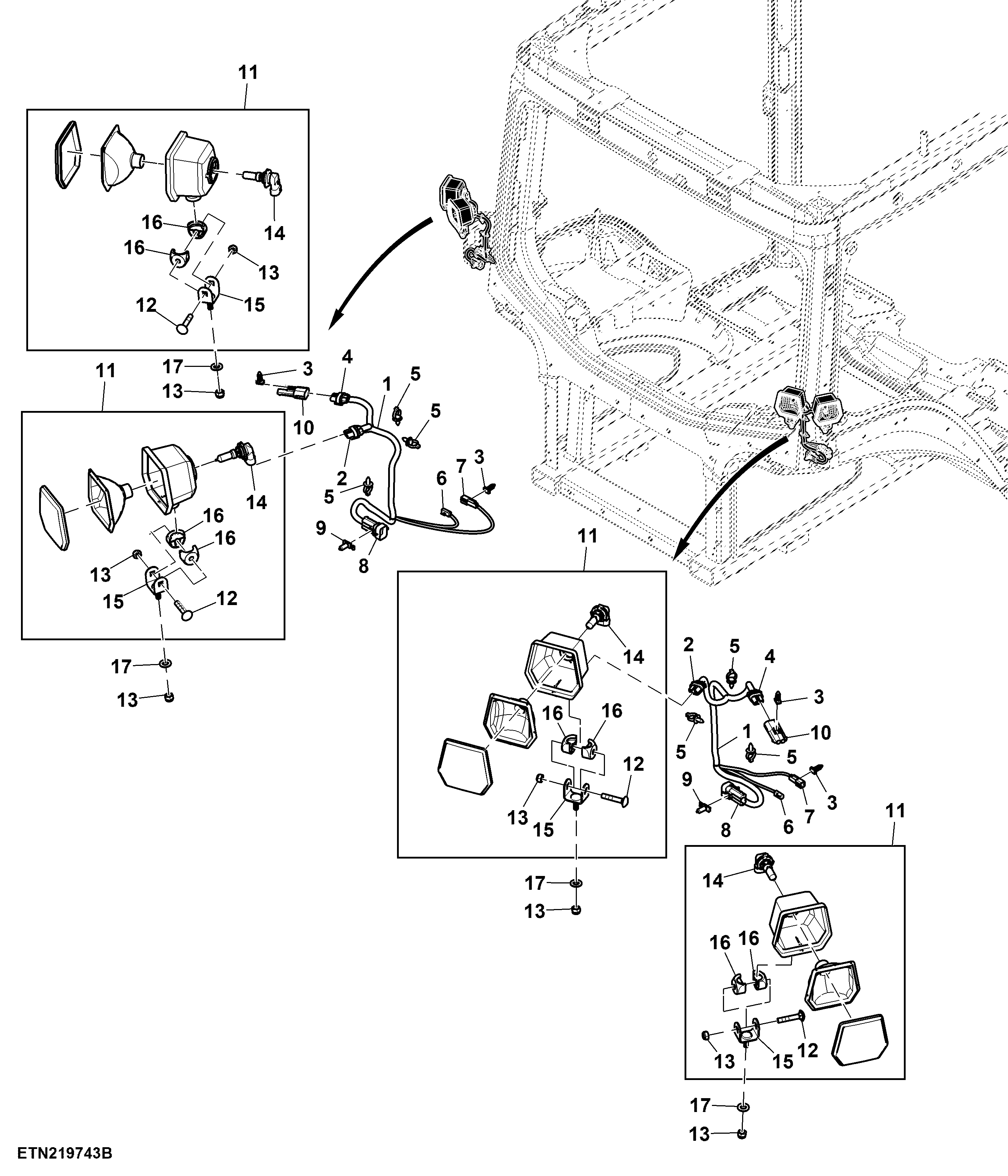

Rear Fender Flood Lamp, 4 Halogen Work Lights

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA19466	2	Wiring Harness	Work Lights Jumper
1	RE593498	2	Wiring Harness	Work Lights Jumper, ORDER TA19466
2	57M8839	2	Elec. Connector Housing	Work Light Fender Rear Outer, E169/E170
2	57M8129	4	Elec. Connector Terminal	-
3	57M9555	5	Clip	-
4	57M8839	2	Elec. Connector Housing	Work Light Fender Rear Inner, E109/E110
4	57M8129	2	Elec. Connector Terminal	-
5	RE258807	8	Tie Band	-
6	57M15416	2	Elec. Connector Housing	Clearance Extremity Interconnect, XX177-1/XX178-1; USE WITH RE593498
6	57M7785	2	Elec. Connector Housing	Clearance Extremity Interconnect, XX177-1/XX178-1; USE WITH TA19466
6	57M7724	2	Electrical Connector Assy	USE WITH 57M7785
7	57M7784	2	Electrical Connector Assy	TL Extremity Interconnect, XX175-1/XX176-1; USE WITH TA19466
7	57M7723	2	Electrical Connector Assy	USE WITH 57M7784
7	57M15075	2	Elec. Connector Housing	USE WITH 57M15082
7	57M15082	2	Elec. Connector Housing	TL Extremity Interconnect, XX175-1/XX176-1; USE WITH RE593498
8	57M7263	2	Elec. Connector Housing	Work Light Jumper/ Fender Interconnect, X131B/X133B
8	57M7291	2	Electrical Connector Assy	-
9	57M8910	2	Clip	-
10	57M8958	2	Elec. Connector Housing	-
11	RE593796	4	Floodlamp	13.5 V, 70.9 W
12	03M7369	4	Bolt	M8 X 45
13	14M7847	8	Lock Nut	M8
14	R571005	4	Bulb	12 V
15	R571006	4	Mounting Parts	-
16	R571007	8	Mounting Parts	-
17	24M7271	4	Washer	10.500 X 20 X 2 mm

Rear Fender Flood Lamp, 4 Halogen Work Lights
