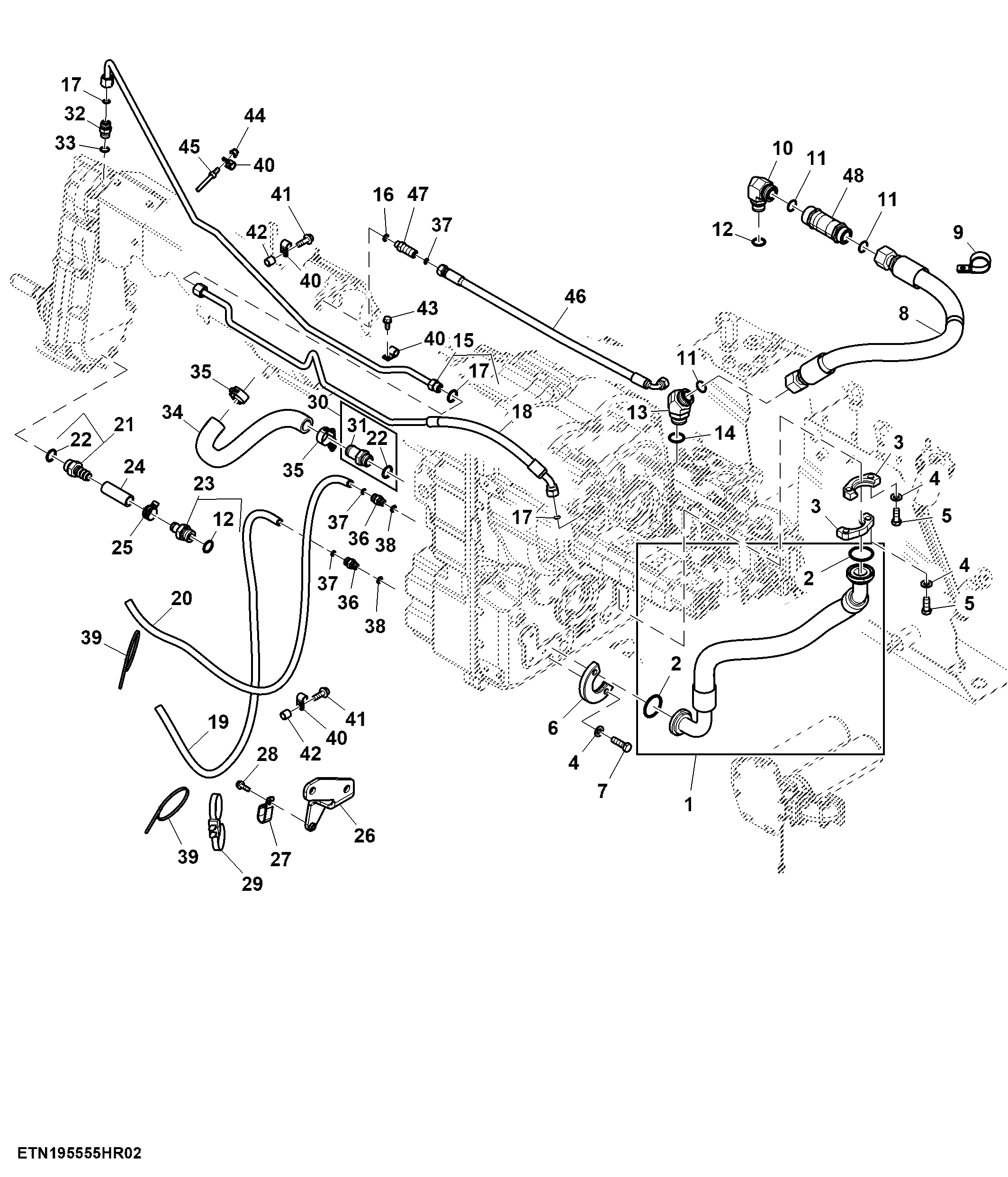

Oil Lines, High Flow Pump, W/ PTO (1/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE304759	1	Hydraulic Hose	Transmission Scavenge
2	51M7065	2	O-Ring	47.219 X 3.531 mm
3	X51H-24	2	Flange Fitting	-
4	24M7047	6	Washer	13 X 24 X 2.500 mm
5	19M8011	4	Cap Screw	M12 X 30
6	TR116960	1	Half Clamp	-
7	19M7493	2	Cap Screw	M12 X 40
8	TA22269	1	Hydraulic Hose	Cooler Bypass Return To Reservoir
9	R557994	1	Clamp	-
10	38H5028	1	Elbow Fitting	-
11	T76938	3	O-Ring	-
12	51M7047	2	O-Ring	23.600 X 2.900 mm
13	38H5206	1	Adapter Fitting	-
14	51M7048	1	O-Ring	29.600 X 2.900 mm
15	RE586781	1	Oil Line	PTO Dropbox Inlet
16	R26448	1	O-Ring	-
17	T77857	2	O-Ring	-
18	RE586288	1	Oil Line	PTO Dropbox Inlet
19	RE296012	1	Hydraulic Hose	PTO Lube
20	RE296013	1	Hydraulic Hose	PTO Pressure
21	RE329141	1	Fitting	-
22	U12547	2	O-Ring	-
23	RE328780	1	Fitting	-
24	R328785	1	Hose	PTO Return
25	R191781	1	Hose Clamp	-
26	RE588811	1	Bracket	-
27	R49921	1	Clamp	-
28	19M7867	1	Screw	M8 X 25
29	57M12741	1	Elec. Connector Accessory	-
30	AT354413	1	Hose Fitting	-
31	H101246	1	Hose Fitting	-
32	38H1161	1	Adapter Fitting	-
33	R26375	1	O-Ring	-
34	R545213	1	Hydraulic Hose	PTO Clutch Return
35	RE224072	2	Hose Clamp	-
36	38H5002	2	Adapter Fitting	INCLUDES 51M7041
37	T77613	3	O-Ring	-
38	51M7041	2	O-Ring	11.300 X 2.200 mm
39	R105388	2	Tie Band	-
40	R34557	4	Clamp	-
41	19M7786	2	Screw	M10 X 30
42	28H3381	2	Spacer	0.493" X 0.675" X 5/8"
43	19M7866	1	Screw	M8 X 20
44	14M7396	1	Lock Nut	M8
45	R543476	1	Stud	-
46	RE585186	1	Hydraulic Hose	PTO Clutch Vent
47	38H1212	1	Adapter Fitting	-
48	TA20833	1	Check Valve	Cooler Bypass, INCLUDES T76938

Oil Lines, High Flow Pump, W/ PTO (1/2)
