Открытый узел

Oil Lines, High Flow Pump, W/O PTO

Oil Lines, High Flow Pump, W/O PTO

Oil Lines, High Flow Pump, W/O PTO

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

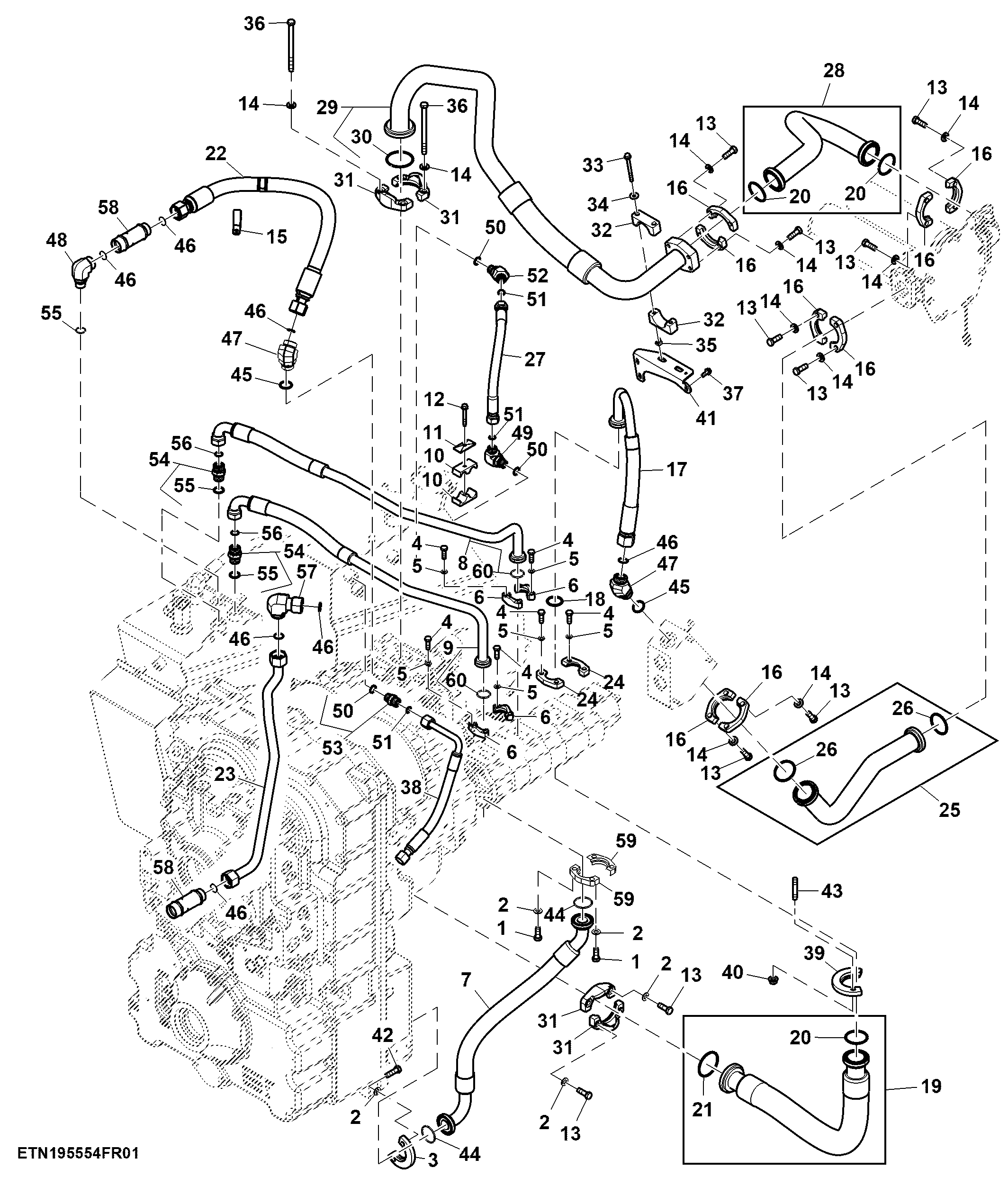

Oil Lines, High Flow Pump, W/O PTO

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M8011	4	Cap Screw	M12 X 30
2	24M7047	10	Washer	13 X 24 X 2.500 mm
3	TR116960	1	Half Clamp	-
4	19M7662	12	Cap Screw	M10 X 30
5	24M7106	12	Washer	10 X 18 X 2.500 mm
6	H61354	4	Flange Fitting	-
7	RE304759	1	Hydraulic Hose	Transmission Scavenge, INCLUDES (2) 51M7065
8	RE571806	1	Oil Line	Axle Scavenge To Reservoir
9	RE571808	1	Oil Line	Transmission Scavenge To Reservoir
10	H115379	2	Clamp	-
11	H112567	1	Plate	-
12	19M7801	1	Screw	M8 X 60
13	19M7403	20	Cap Screw	M12 X 35
14	24M7240	20	Washer	13 X 25 X 3 mm
15	R557994	1	Clamp	-
16	R37023	8	Flange Fitting	-
17	TA10375	1	Oil Line	Hydraulic Charge Outlet
18	U10289	2	O-Ring	-
19	TA10376	1	Hydraulic Hose	Hydraulic Charge Pump In
20	51M7066	3	O-Ring	56.744 X 3.531 mm
21	51M7067	1	O-Ring	69.444 X 3.531 mm
22	TA22269	1	Hydraulic Hose	Cooler Bypass Return To Reservoir
23	TA20912	1	Oil Line	Transmission Cooler To Cooler Bypass
24	R29867	2	Flange Fitting	-
25	TA13841	1	Oil Line	Filter Inlet
26	U46457	2	O-Ring	-
27	TA12552	1	Hydraulic Hose	Pump Case Drain To Reservoir
28	TA12555	1	Oil Line	Filter Outlet
29	TA12556	1	Oil Line	Filter Outlet
30	U12331	1	O-Ring	-
31	T195864	4	Flange Fitting	-
32	H215566	2	Hose Clamp	-
33	19M7913	2	Screw	M8 X 90
34	24M7207	2	Washer	8.400 X 24 X 2 mm
35	AM140563	2	Nut	-
36	19M7904	4	Cap Screw	M12 X 160
37	19M7866	3	Screw	M8 X 20
38	TA17716	1	Hydraulic Hose	Pump Case Drain To Reservoir
39	TR116959	1	Half Clamp	-
40	14M7299	2	Flange Nut	M12
41	TR119726	1	Hose Support	-
42	19M7493	2	Cap Screw	M12 X 40
43	R139743	2	Stud	-
44	51M7065	2	O-Ring	47.219 X 3.531 mm
45	51M7048	2	O-Ring	29.600 X 2.900 mm
46	T76938	6	O-Ring	-
47	38H5206	2	Adapter Fitting	-
48	38H5028	1	Elbow Fitting	-
49	38H5018	1	Elbow Fitting	-
50	51M7045	3	O-Ring	19.300 X 2.200 mm
51	T77932	3	O-Ring	-
52	38H5146	1	Elbow Fitting	-
53	38H5004	1	Adapter Fitting	-
54	38H5005	2	Adapter Fitting	-
55	51M7047	3	O-Ring	23.600 X 2.900 mm
56	T77858	2	O-Ring	-
57	38H5207	1	Elbow Fitting	-
58	TA20833	2	Check Valve	INCLUDES T76938
59	T47649	2	Flange Fitting	-
60	T78313	2	O-Ring	-
