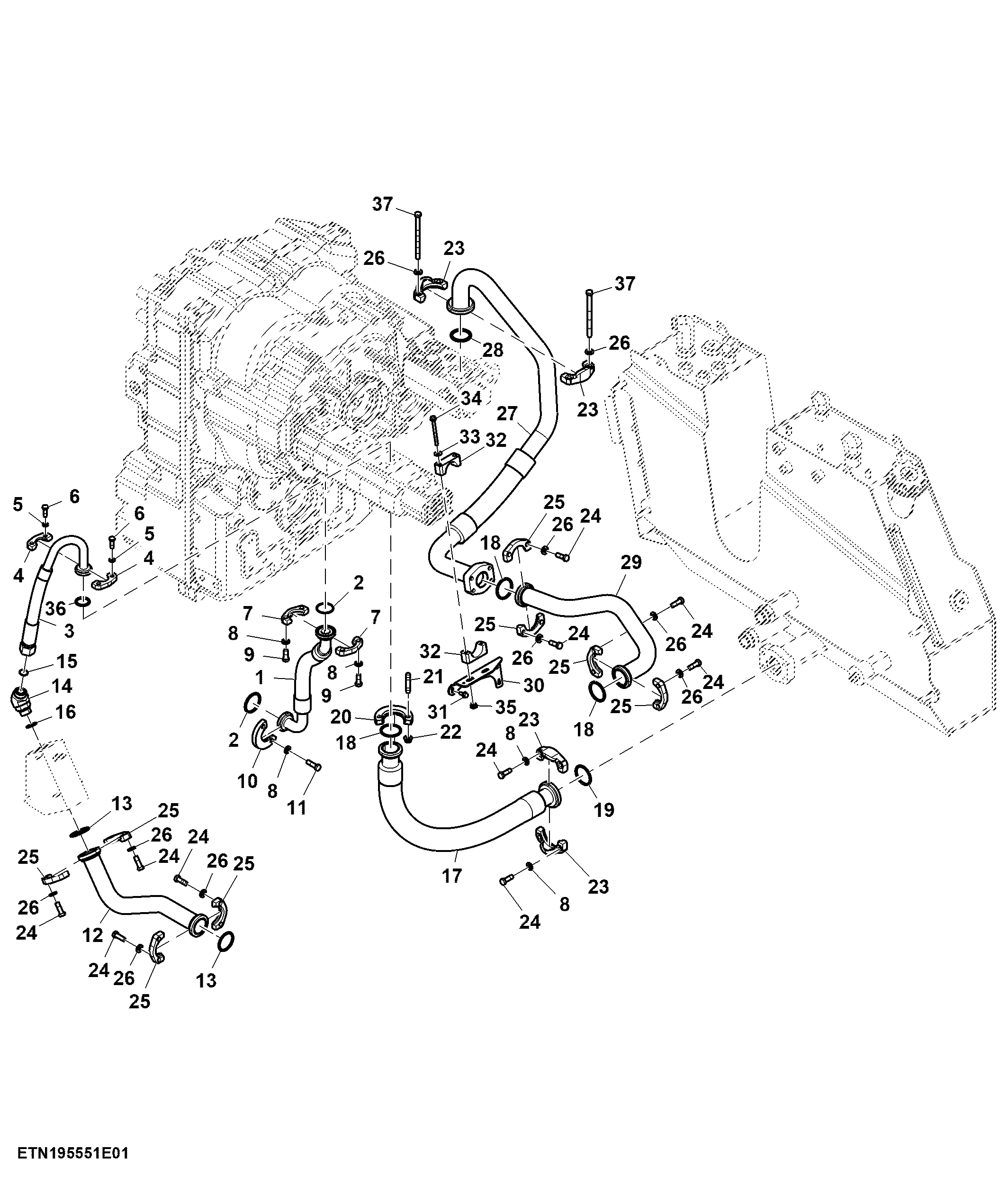

Oil Line, Standard Flow Pump, W/O PTO (1/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE304759	1	Hydraulic Hose	Transmission Scavenge, INCLUDES (2) 51M7065
2	51M7065	2	O-Ring	47.219 X 3.531 mm
3	TA10375	1	Oil Line	Hydraulic Charge Outlet
4	R29867	2	Flange Fitting	-
5	24M7106	4	Washer	10 X 18 X 2.500 mm
6	19M7662	4	Cap Screw	M10 X 30
7	X51H-24	2	Flange Fitting	-
8	24M7047	10	Washer	13 X 24 X 2.500 mm
9	19M8011	4	Cap Screw	M12 X 30
10	TR116960	1	Half Clamp	-
11	19M7493	2	Cap Screw	M12 X 40
12	TA13841	1	Oil Line	Filter Inlet, INCLUDES (2) U46457
13	U46457	2	O-Ring	-
14	38H5206	1	Adapter Fitting	-
15	T76938	1	O-Ring	-
16	51M7048	1	O-Ring	29.600 X 2.900 mm
17	TA10376	1	Hydraulic Hose	Hydraulic Charge Pump Inlet, INCLUDES 51M7066 AND 51M7067
18	51M7066	3	O-Ring	56.744 X 3.531 mm
19	51M7067	1	O-Ring	69.444 X 3.531 mm
20	TR116959	1	Half Clamp	-
21	R139743	2	Stud	-
22	14M7299	2	Flange Nut	M12
23	T195864	4	Flange Fitting	-
24	19M7403	20	Cap Screw	M12 X 35
25	R37023	8	Flange Fitting	-
26	24M7240	20	Washer	13 X 25 X 3 mm
27	TA12556	1	Oil Line	Filter Outlet, INCLUDES U12331
28	U12331	1	O-Ring	-
29	TA12555	1	Oil Line	Filter Outlet, INCLUDES (2) 51M7066
30	TR119726	1	Hose Support	-
31	19M7866	3	Screw	M8 X 20
32	H215566	2	Hose Clamp	-
33	24M7207	2	Washer	8.400 X 24 X 2 mm
34	19M7913	2	Screw	M8 X 90
35	AM140563	2	Nut	-
36	U10289	1	O-Ring	-
37	19M7904	4	Cap Screw	M12 X 160

Oil Line, Standard Flow Pump, W/O PTO (1/2)
