Открытый узел

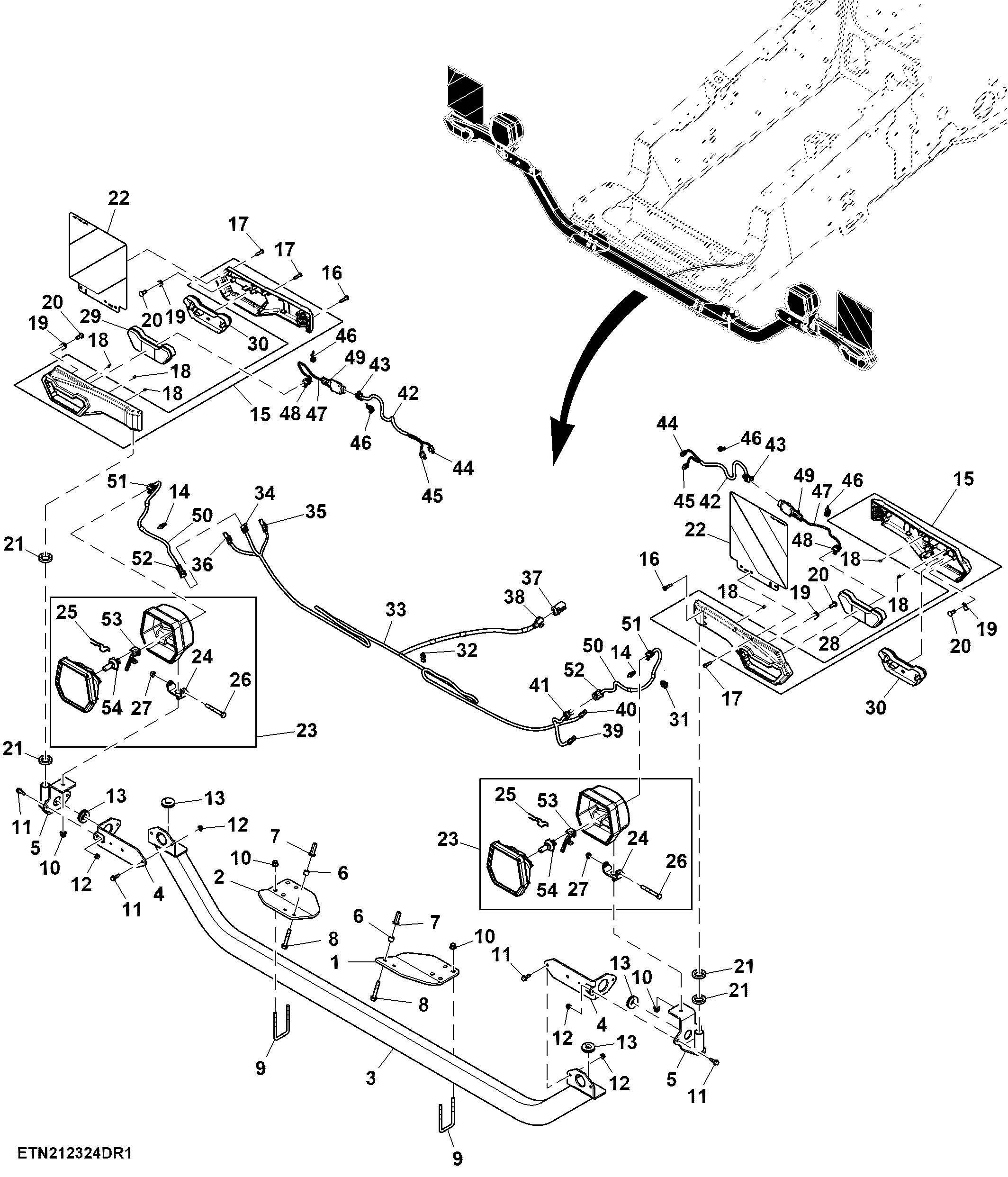

Light Bar, Extremity Arm (For EU) (1/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R542128	1	Bracket	-
2	R542127	1	Bracket	-
3	TA17884	1	Support	-
4	TR112201	2	Bracket	-
5	TA18181	2	Support	-
6	28H3394	4	Bushing	0.493" X 0.675" X 1/2"
7	T150768	4	Nut	-
8	19M7807	4	Screw	M10 X 60
9	R573435	4	U-Bolt	SUB FOR N304439
10	14M7400	10	Lock Nut	M10
11	19M7867	8	Screw	M8 X 25
12	14M7298	8	Flange Nut	M8
13	T230452	4	Grommet	-
14	RE258807	2	Tie Band	-
15	RE590493	2	Arm	-
16	21M7686	10	Screw	M5 X 20
17	37M7372	10	Screw	-
18	R566417	8	Clip	-
19	R569996	12	Bracket	-
20	R263172	12	Screw	-
21	R180671	6	Washer	-
22	RE595094	2	Plate	-
23	RE593798	2	Headlight	-
24	R571001	2	Mounting Parts	-
25	R571002	2	Spring Pin	-
26	19M10931	2	Cap Screw	M10 X 80
27	14M7848	2	Lock Nut	M10
28	RE592943	1	Lamp	13.5 V, Front Position, LH
29	RE592942	1	Lamp	13.5 V, Front Position, RH
30	RE595255	2	Lens	-
31	AH225366	2	Clip	-
32	57M10362	1	Clamp	-
33	TA10666	1	Wiring Harness	Front Lights
34	57M7255	1	Elec. Connector Housing	Right Roadlights, XE323/XXE325-1
34	57M7290	1	Elec. Connector Accessory	-
35	57M15416	1	Elec. Connector Housing	Front Turn Right, XX419-1
36	57M15082	1	Elec. Connector Housing	Ground Turn Right, XX409-1
37	57M9796	1	Elec. Connector Housing	Main Chassis Interconnect, XX007-2
38	57M9842	1	Elec. Connector Accessory	-
39	57M15416	1	Elec. Connector Housing	Front Turn Left, XX418-1
40	57M15082	1	Elec. Connector Housing	Ground Turn Left, XX408-1
41	57M7255	1	Elec. Connector Housing	Left Roadlights, XE322/XXE324-1
41	57M7290	1	Elec. Connector Accessory	-
42	TA11875	2	Wiring Harness	Turn Signal And Marker
43	57M7255	2	Elec. Connector Housing	Turn/Clearance Light, XE176/XE177/XE178/XE179
43	57M7290	2	Elec. Connector Accessory	-
44	57M15075	2	Elec. Connector Housing	Interconnect 1, X408/XX409/XX708/XX709
45	57M15079	2	Elec. Connector Housing	Interconnect 2, XX418/XX419/XX718/XX719
46	57M9229	4	Clip	-
47	TA19217	2	Sensor Kit	LED Light Dongle
48	57M7255	2	Elec. Connector Housing	-
49	57M7257	2	Elec. Connector Housing	-
50	TA14691	2	Wiring Harness	Road Light Jumper
51	57M7255	2	Elec. Connector Housing	XE324
51	57M7290	2	Elec. Connector Accessory	-
52	57M7257	2	Elec. Connector Housing	XX324-2
52	57M7290	2	Elec. Connector Accessory	-
53	R571003	2	Wiring Harness	Auxiliary Driving Light
54	R571004	2	Bulb	12V

Light Bar, Extremity Arm (For EU) (1/2)

Нет текстового описания
