Открытый узел

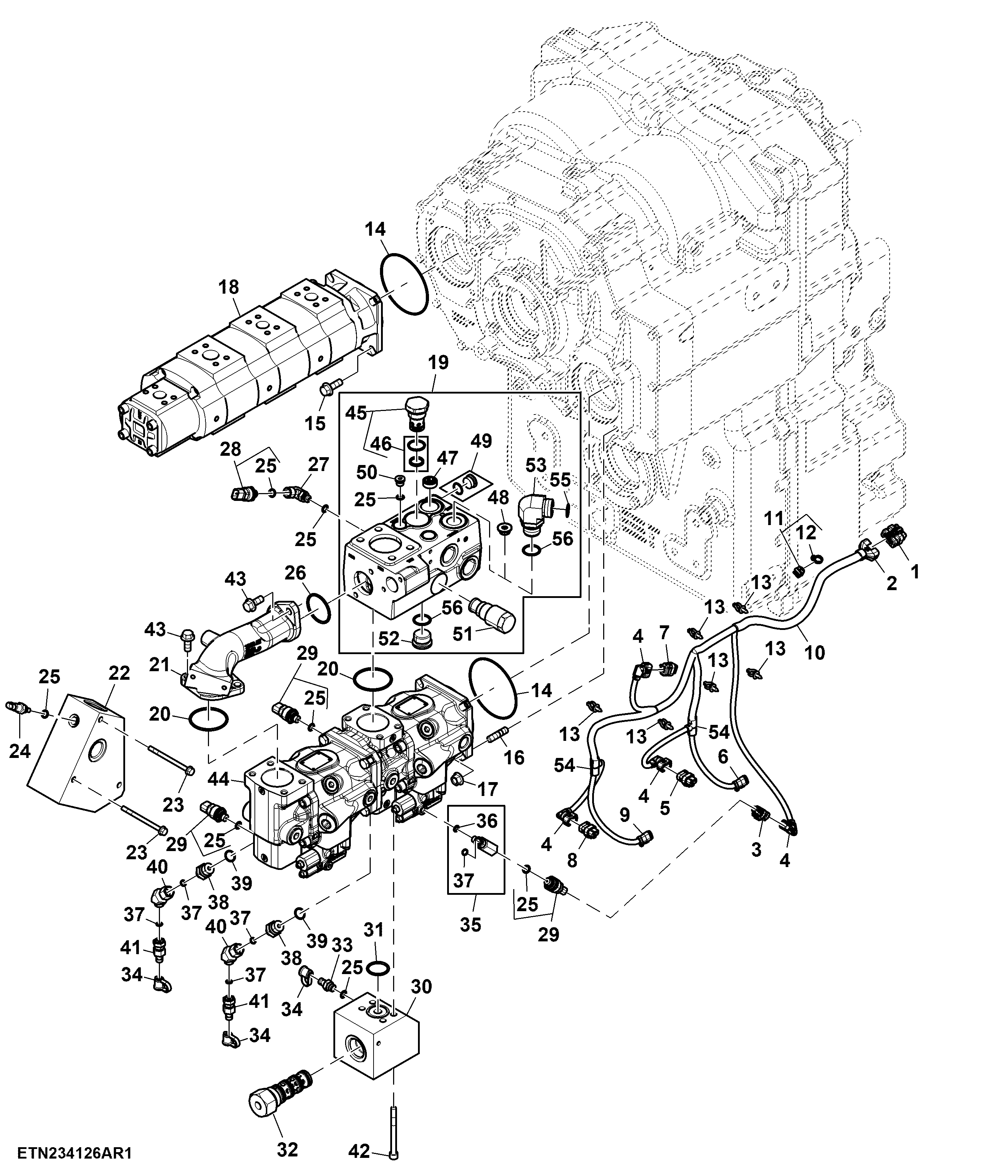

Hydraulic Pump, High Flow

Hydraulic Pump, High Flow

Hydraulic Pump, High Flow

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Hydraulic Pump, High Flow

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M9800	1	Elec. Connector Housing	Hyd Pump-Transmission Interconnect, XX332-2
2	57M9844	1	Elec. Connector Accessory	-
3	57M9780	1	Elec. Connector Housing	Load Sense Resolved, XB274
4	57M10156	4	Elec. Connector Accessory	-
5	57M9780	1	Elec. Connector Housing	Pump Outlet Pressure, XB270/XB261
6	57M8637	1	Elec. Connector Housing	Swash Plate Angle, XB272
6	57M8019	1	Elec. Connector Terminal	-
7	57M9780	1	Elec. Connector Housing	Hyd Charge Press, XB717
8	57M9780	1	Elec. Connector Housing	Pump Outlet Pressure (High Flow), XB271
9	57M8637	1	Elec. Connector Housing	Swash Plate Angle (High Flow), XB273
9	57M8019	1	Elec. Connector Terminal	-
10	TA20851	1	Wiring Harness	Dual Hydraulic Pump Extension
11	AH225363	1	Clip	-
12	R44302	1	Tie Band	-
13	RE258807	6	Tie Band	-
14	T34448	2	O-Ring	-
15	19M7790	4	Screw	M12 X 35
16	42M7105	4	Stud	-
17	14M7299	4	Flange Nut	M12
18	TA10135	1	Hydraulic Pump	Quad Pump
19	TA18230	1	Pressure Relief Valve	Deluxe Cooler Bypass
20	51M7067	2	O-Ring	69.444 X 3.531 mm
21	TR112745	1	Elbow Fitting	-
22	R547248	1	Manifold	Charge Return
23	19M7873	3	Screw	M8 X 110
24	RE52722	1	Temperature Sensor	Hydraulic Oil Temperature, XB694
25	51M7041	8	O-Ring	11.300 X 2.200 mm
26	51M7066	1	O-Ring	56.744 X 3.531 mm
27	AL117978	1	Adapter Fitting	-
28	RE584414	1	Pressure Sensor	15 Bar
29	RE584419	3	Pressure Sensor	320 Bar
30	TR107240	1	Manifold	Priority Valve
31	T78393	1	O-Ring	-
32	RE260748	1	Control Valve	Priority Valve
33	RE190805	1	Diagnostic Coupling	-
34	R77175	3	Cover	-
35	TA12425	1	Tee Fitting	-
36	51M7040	1	O-Ring	9.300 X 2.200 mm
37	T77613	5	O-Ring	-
38	R559715	2	Adapter Fitting	-
39	51M7085	2	O-Ring	19 X 2 mm
40	38H5437	2	Adapter Fitting	-
41	RE60701	2	Diagnostic Coupling	-
42	19M8941	4	Screw	M10 X 110
43	19M7789	4	Screw	M12 X 30
44	-	1	Part 46	85CC +85CC, Components On Separate Page
45	TA15092	1	Pressure Relief Valve	Cooler Bypass Surge Relief Valve
46	TCA18021	1	Seal Kit	-
47	TR113063	1	Orifice	-
48	TR113064	1	Orifice	-
49	AT361540	1	Fitting Plug	-
50	64M1017	2	Drain Plug	-
51	TA11301	1	Pressure Relief Valve	Oil Cooler Pressure
52	64M1024	1	Drain Plug	-
53	38H5020	1	Elbow Fitting	-
54	57M10277	2	Elec. Connector Accessory	-
55	T76938	1	O-Ring	-
56	51M7048	2	O-Ring	29.600 X 2.900 mm
