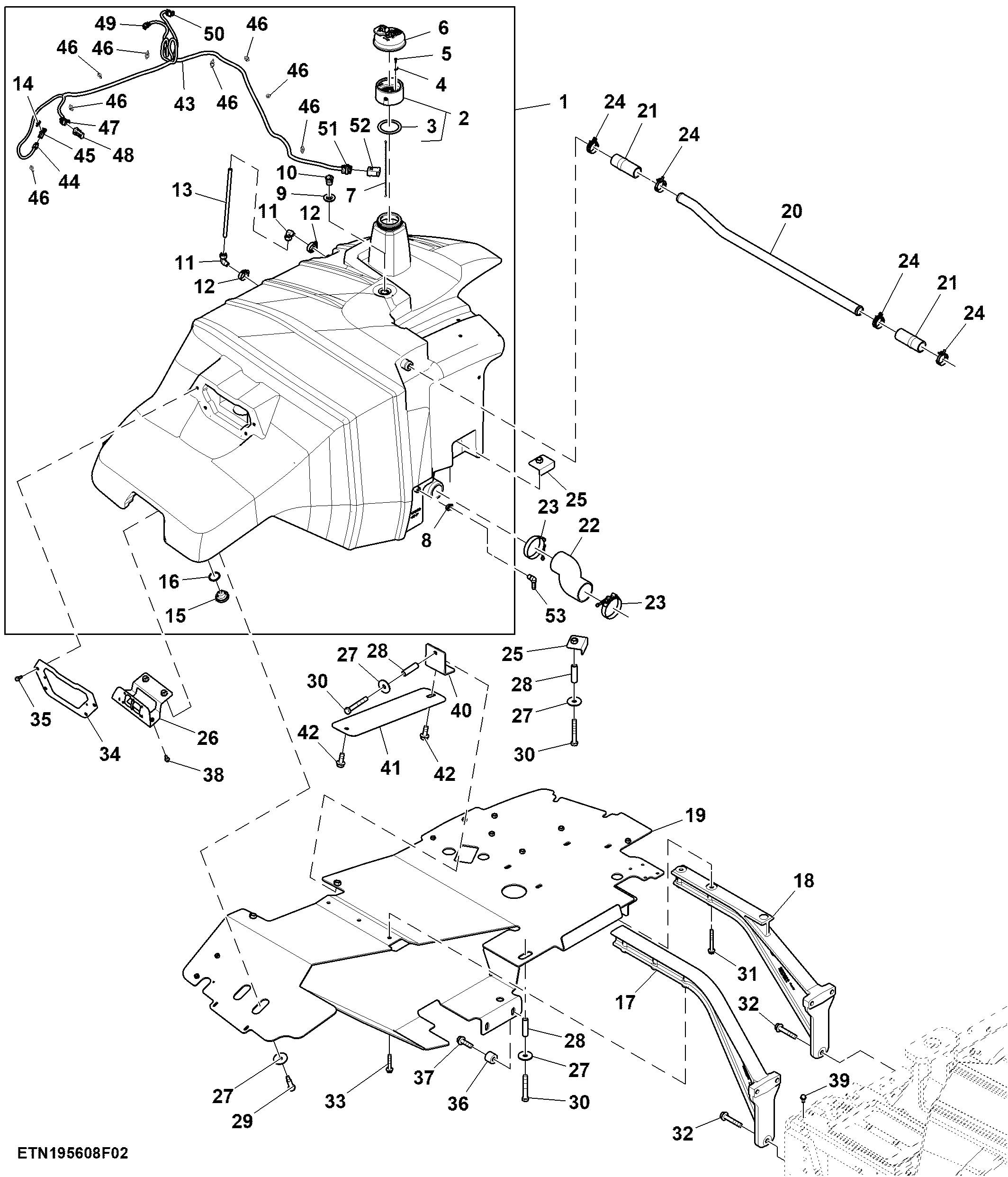

Fuel Tank, FT4/ Stage 5 Engine (2/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA17659	1	Fuel Tank	LH
2	RE566651	1	Adapter Fitting	-
3	H172014	1	Gasket	-
4	H174831	1	Anchor	-
5	T164203	1	Screw	-
6	AT346094	1	Cap	-
7	RE255766	1	Link Chain	-
8	AL212942	1	Clamp	-
9	R560528	1	Grommet	-
10	R237815	1	Vent	-
11	RE306486	2	Fitting	-
12	AR21839	2	Clamp	-
13	R539363	1	Tube	-
14	TR111525	1	Clip	-
15	T399688	1	Drain Plug	-
16	T401614	1	O-Ring	-
17	TR106914	1	Support	-
18	R307804	1	Support	-
19	TA18974	1	Support	-
20	R282651	1	Fuel Line	-
21	R294743	2	Hose	-
22	R298843	1	Hose	-
23	AT301456	2	Clamp	-
24	R198424	4	Half Clamp	-
25	TA17252	2	Bracket	-
26	RE589636	1	Bracket	-
27	24M7103	5	Washer	17.500 X 56 X 5 mm
28	R310303	3	Spacer	-
29	R543770	2	Cap Screw	-
30	19M7884	3	Cap Screw	M16 X 110
31	19M7820	2	Screw	M12 X 100
32	19M7845	6	Screw	M16 X 90
33	19M7817	3	Screw	M12 X 70
34	R570836	1	Cover	-
35	19M10365	4	Screw	M8 X 20
36	R547817	2	Spacer	-
37	19M7910	2	Screw	M16 X 55
38	19M7866	2	Screw	M8 X 20
39	HXE36109	1	Screw	-
40	TA18976	1	Bracket	-
41	TR118459	1	Bracket	-
42	19M7793	2	Screw	M16 X 40
43	TA17514	1	Wiring Harness	-
44	57M15076	1	Elec. Connector Housing	Light Rear Left Turn/ Tail Light, XX712-1
45	57M15077	1	Elec. Connector Housing	-
46	RE258807	15	Tie Band	-
47	57M7260	1	Elec. Connector Housing	SW Hitch External Raise/ Lower Left, XS312
47	57M7291	1	Electrical Connector Assy	-
48	57M7263	1	Elec. Connector Housing	-
48	57M7291	1	Electrical Connector Assy	-
49	57M8542	1	Elec. Connector Housing	Light Brake Left Fender, XE113
50	57M7255	1	Elec. Connector Housing	Light Turn Left Fender, XE103
50	57M7290	1	Elec. Connector Accessory	-
51	57M9800	1	Elec. Connector Housing	-
52	57M11338	1	Elec. Connector Accessory	-
53	KK15811	1	Fitting	-
