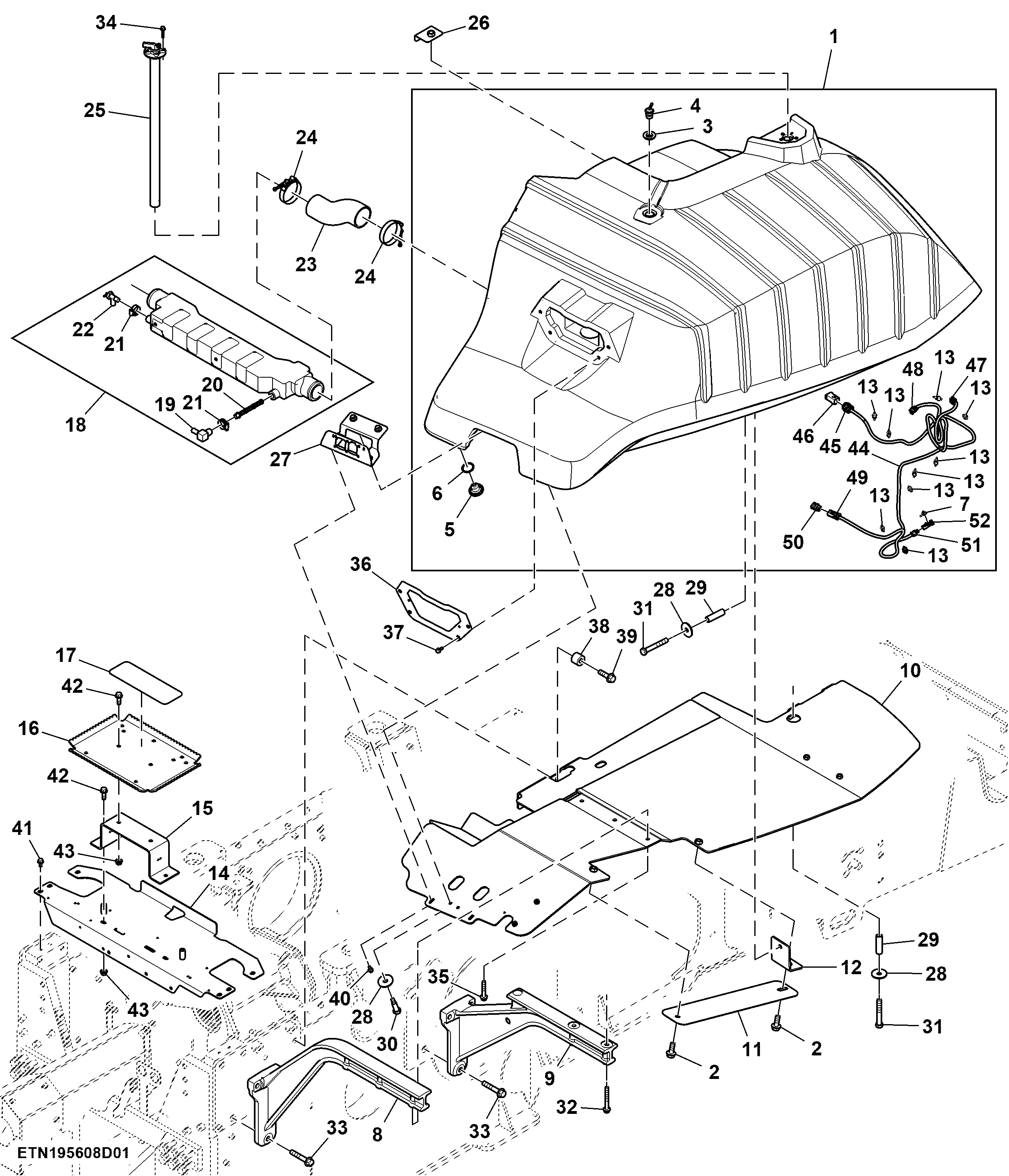

Fuel Tank, FT4 / Stage 5 Engine (1/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA22675	1	Fuel Tank	RH
2	19M7793	2	Screw	M16 X 40
3	R560528	1	Grommet	-
4	R237815	1	Vent	-
5	T399688	1	Drain Plug	-
6	T401614	1	O-Ring	-
7	TR111525	1	Clip	-
8	TR106914	1	Support	-
9	R307804	1	Support	-
10	TA18975	1	Support	-
11	TR118459	1	Bracket	-
12	TA18976	1	Bracket	-
13	RE258807	15	Tie Band	-
14	TA21981	1	Support	-
15	R313159	1	Bracket	-
16	R251884	1	Step	-
17	R65514	2	Strip	-
18	TA13580	1	Fuel Tank	-
19	R538665	1	Hose Fitting	-
20	AH165504	1	Fuel Filter	-
21	AR54815	2	Clamp	-
22	AT35831	1	Drain Valve	-
23	R298843	1	Hose	-
24	AT301456	2	Clamp	-
25	RE564158	1	Fuel Sender	-
26	TA17252	2	Bracket	-
27	RE590323	1	Bracket	-
28	24M7103	5	Washer	17.500 X 56 X 5 mm
29	R310303	3	Spacer	-
30	R543770	2	Cap Screw	-
31	19M7884	3	Cap Screw	M16 X 110
32	19M7820	2	Screw	M12 X 100
33	19M7845	6	Screw	M16 X 90
34	19M9197	5	Screw	M5 X 25
35	19M7817	3	Screw	M12 X 70
36	R570836	1	Cover	-
37	19M10365	4	Screw	M8 X 20
38	R547817	2	Spacer	-
39	19M7910	2	Screw	M16 X 55
40	19M7866	2	Screw	M8 X 20
41	HXE36109	5	Screw	-
42	19M7790	4	Screw	M12 X 35
43	14M7299	4	Flange Nut	M12
44	TA17515	1	Wiring Harness	Right Fender Lights
45	57M9792	1	Elec. Connector Housing	Right Fender to Main Chassis, XX702-2
46	57M11337	1	Elec. Connector Accessory	-
47	57M7255	1	Elec. Connector Housing	Light Turn Right Fender, XE104
47	57M7290	1	Elec. Connector Accessory	-
48	57M8542	1	Elec. Connector Housing	Light Turn Right Fender, XE104
49	57M9784	1	Elec. Connector Housing	SCV Light Kit, XX703-1
50	57M9780	1	Elec. Connector Housing	XX703-1_CAP
51	57M15076	1	Elec. Connector Housing	Rear Right Turn/ Tail Light, XX713-1
51	57M7290	1	Elec. Connector Accessory	-
52	57M15077	1	Elec. Connector Housing	-

Fuel Tank, FT4 / Stage 5 Engine (1/2)

Нет текстового описания
