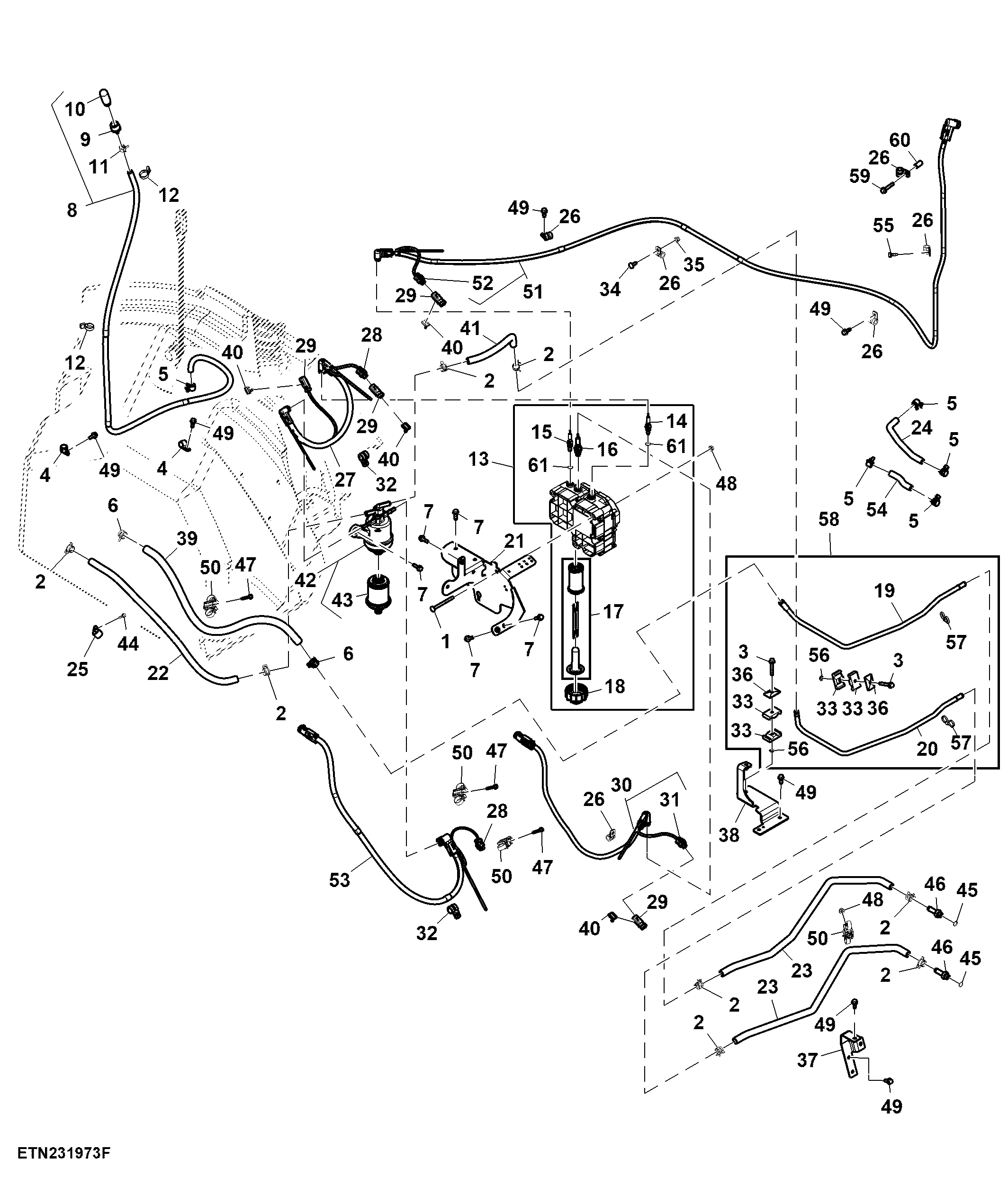

DEF Lines and Pumps, 13.6 L, Stage 5 Engine

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7295	3	Bolt	M8 X 90
2	R184863	8	Hose Clamp	-
3	19M7800	2	Screw	M8 X 50
4	AH77724	2	Clip	-
5	R251581	5	Clamp	-
6	T184924	2	Hose Clamp	-
7	19M7867	8	Screw	M8 X 25
8	TA21551	1	Hose	-
9	H216170	1	Fitting	-
10	H216169	1	Breather	-
11	R202160	1	Clamp	ORDER M164585
11	M164585	1	Hose Clamp	-
12	H224073	2	Tie Band	-
13	DZ121774	1	DEF Dosing Unit Pump	-
14	RE549603	1	Adapter Fitting	INCLUDES 51M7040
15	RE549604	1	Adapter Fitting	INCLUDES 51M7040
16	DZ113071	1	Adapter Fitting	-
17	DZ114640	1	Filter Kit	-
18	RE555351	1	Cap	-
19	TA10690	1	Line	DEF Header, Supply
20	TA10691	1	Line	DEF Header, Return
21	TA10707	1	Bracket	-
22	TR105617	1	Hose	DEF Filter
23	TR105615	2	Hose	-
24	TR105614	1	Hose	DEF Doser Return
25	E53830	1	Clamp	-
26	T269640	10	Clamp	-
27	DZ118180	1	DEF Line	Suction Jumper, INCLUDES 57M9772 AND 57M9776
28	57M9772	2	Elec. Connector Housing	-
29	57M9776	4	Elec. Connector Housing	-
30	DZ118181	1	DEF Line	Backflow
31	57M9774	1	Elec. Connector Housing	-
32	T76252	2	Clamp	-
33	H135156	4	Clamp	-
34	03M7184	2	Bolt	M8 X 20
35	14M7396	2	Lock Nut	M8
36	H121168	2	Plate	-
37	TA14224	1	Bracket	-
38	TA14223	1	Bracket	-
39	TR111385	1	Hose	Header Inlet
40	57M9940	4	Elec. Connector Accessory	-
41	TA10692	1	Hose	-
42	DZ118548	1	Filter	DEF Inline Filter Assembly
42	DZ124402	1	Filter	SUB FOR DZ118548
43	DZ110513	1	Filter Kit	-
43	DZ124403	1	Filter Kit	SUB FOR DZ110513
44	19M7775	1	Screw	M6 X 16
45	51M7042	2	O-Ring	13.300 X 2.200 mm
46	T352699	2	Adapter Fitting	-
47	19M7796	3	Screw	M6 X 30
48	14M7298	4	Flange Nut	M8
49	19M7866	9	Screw	M8 X 20
50	HXE53002	4	Clamp	-
51	DZ121607	1	DEF Line	Pressure Line
52	57M9773	1	Elec. Connector Housing	-
53	DZ121611	1	DEF Line	Suction Line, INCLUDES 57M9772
54	TR121999	1	Hose	-
55	TR110464	3	Screw	-
56	R280791	2	Push Nut	-
57	57M10421	2	Elec. Connector Accessory	-
58	TA20184	1	Line	-
59	19M8318	1	Screw	M8 X 45
60	28H3390	1	Spacer	0.364" X 0.540" X 1"
61	51M7040	2	O-Ring	9.300 X 2.200 mm

DEF Lines and Pumps, 13.6 L, Stage 5 Engine

Нет текстового описания
