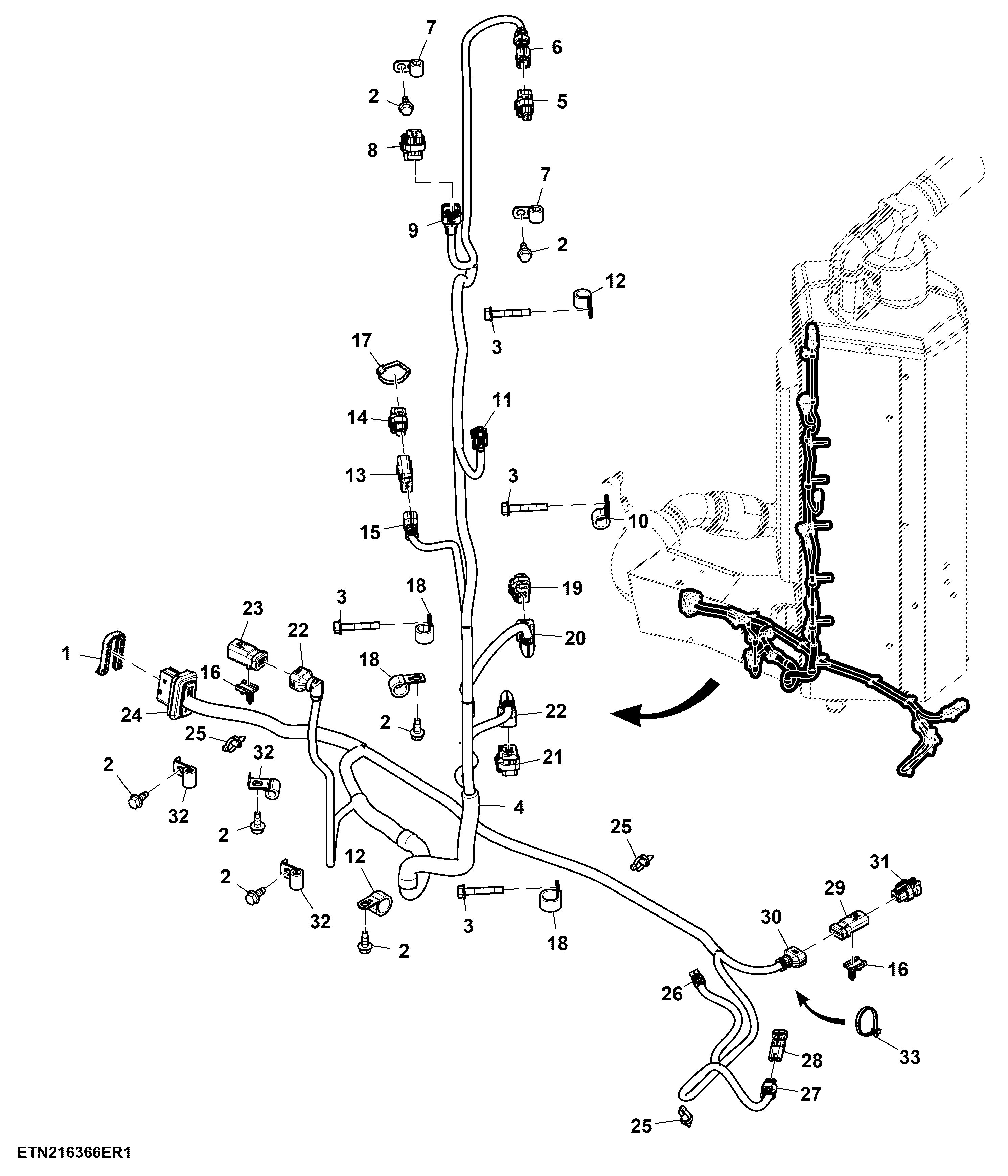

Chassis Wiring Harness, 13.6 L Stage 5 Engine, ATD/ SCR

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M12093	1	Elec. Connector Accessory	-
2	TR110464	7	Screw	-
3	19M7800	6	Screw	M8 X 50
4	TA20864	1	Wiring Harness	INCLUDES (8) RE258807, (4) 57M13298, (2) 57M12128, (2) 57M12124, R527993
5	57M9780	1	Elec. Connector Housing	DPF Delta Pressure-Face Seal, XB5109
6	57M15676	1	Elec. Connector Accessory	-
7	57M12128	2	Clamp	-
8	57M9787	1	Elec. Connector Housing	NOx Sensor SCR Outlet, XB5503
9	57M15920	1	Elec. Connector Accessory	-
10	57M13296	2	Clamp	-
11	57M10315	1	Elec. Connector Housing	SCR Dosing Control Valve, XY5020
12	57M12124	2	Clamp	-
13	57M9776	1	Elec. Connector Housing	CAN Terminator, XA916
13	57M9940	1	Elec. Connector Accessory	-
14	57M11134	1	Elec. Connector Housing	-
15	57M15493	1	Elec. Connector Accessory	-
16	57M9940	2	Elec. Connector Accessory	-
17	R527993	1	Tie Band	-
18	57M13298	4	Clamp	-
19	57M9818	1	Elec. Connector Housing	After Treatment Temperature Module, XB5204
20	57M15927	1	Elec. Connector Accessory	-
21	57M9787	1	Elec. Connector Housing	NOx Sensor DPF Outlet, XB5502
22	57M15934	2	Elec. Connector Accessory	-
23	57M9789	1	Elec. Connector Housing	ATD Lights To Roof Interconnect, XX171-2
24	57M11853	1	Elec. Connector Housing	ATD/ Main Chassis Interconnect, XX003
25	RE258807	8	Tie Band	-
26	57M14930	1	Elec. Connector Housing	Light Midbody Right Side, XE329
27	57M15076	1	Elec. Connector Housing	ATD To Right extremity Lights Interconnect, XX133-1
28	57M15077	1	Elec. Connector Housing	-
29	57M9784	1	Elec. Connector Housing	ATD To Works Light Interconnect, XX401-1
30	57M15917	1	Elec. Connector Accessory	-
31	57M9780	1	Elec. Connector Housing	-
32	TR110462	3	Clamp	-
33	R44302	2	Tie Band	-

Chassis Wiring Harness, 13.6 L Stage 5 Engine, ATD/ SCR

Нет текстового описания
