Chassis Wiring Harness, 13.6 L Stage 4 Engine, ATD / SCR

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TR110464	5	Screw	-
2	57M12093	1	Elec. Connector Accessory	-
3	19M7800	5	Screw	M8 X 50
4	TA20866	1	Chassis Wiring Harness	-
5	57M9787	1	Elec. Connector Housing	NOx DPF Outlet, XB5503, INCLUDES (6) 57M13298, (8) RE258807, (2) R44302
6	57M15920	1	Elec. Connector Accessory	-
7	57M9776	1	Elec. Connector Housing	CAN Terminator, XA916
8	57M11134	1	Elec. Connector Housing	-
9	R527993	1	Tie Band	-
10	57M13298	6	Clamp	-
11	57M10315	1	Elec. Connector Housing	SCR Dosing Control Valve, XY5020
12	57M9818	1	Elec. Connector Housing	Automatic Temperature Sensor 1, XB5204
13	57M15934	3	Elec. Connector Accessory	-
14	57M9787	1	Elec. Connector Housing	NOx SCR Outlet, XB5502
15	57M9789	1	Elec. Connector Housing	Roof Harness/ ATD Harness Interconnect, XX171-2
16	57M9940	2	Elec. Connector Accessory	-
17	57M11853	1	Elec. Connector Housing	ATD/ Main Chassis Interconnect, XX003-2
18	57M14930	1	Elec. Connector Housing	Right Side Light, XE329
19	57M15076	1	Elec. Connector Housing	ATD Harness/ Right Extremity Lights Interconnect, XX133-1
20	57M15077	1	Elec. Connector Housing	-
21	57M9784	1	Elec. Connector Housing	Work Light Jumper Interconnect, XX401-1
22	57M15917	1	Elec. Connector Accessory	-
23	57M9780	1	Elec. Connector Housing	-
24	R44302	2	Tie Band	-
25	TR110462	3	Clamp	-
26	RE258807	8	Tie Band	-
27	57M12123	1	Clamp	-

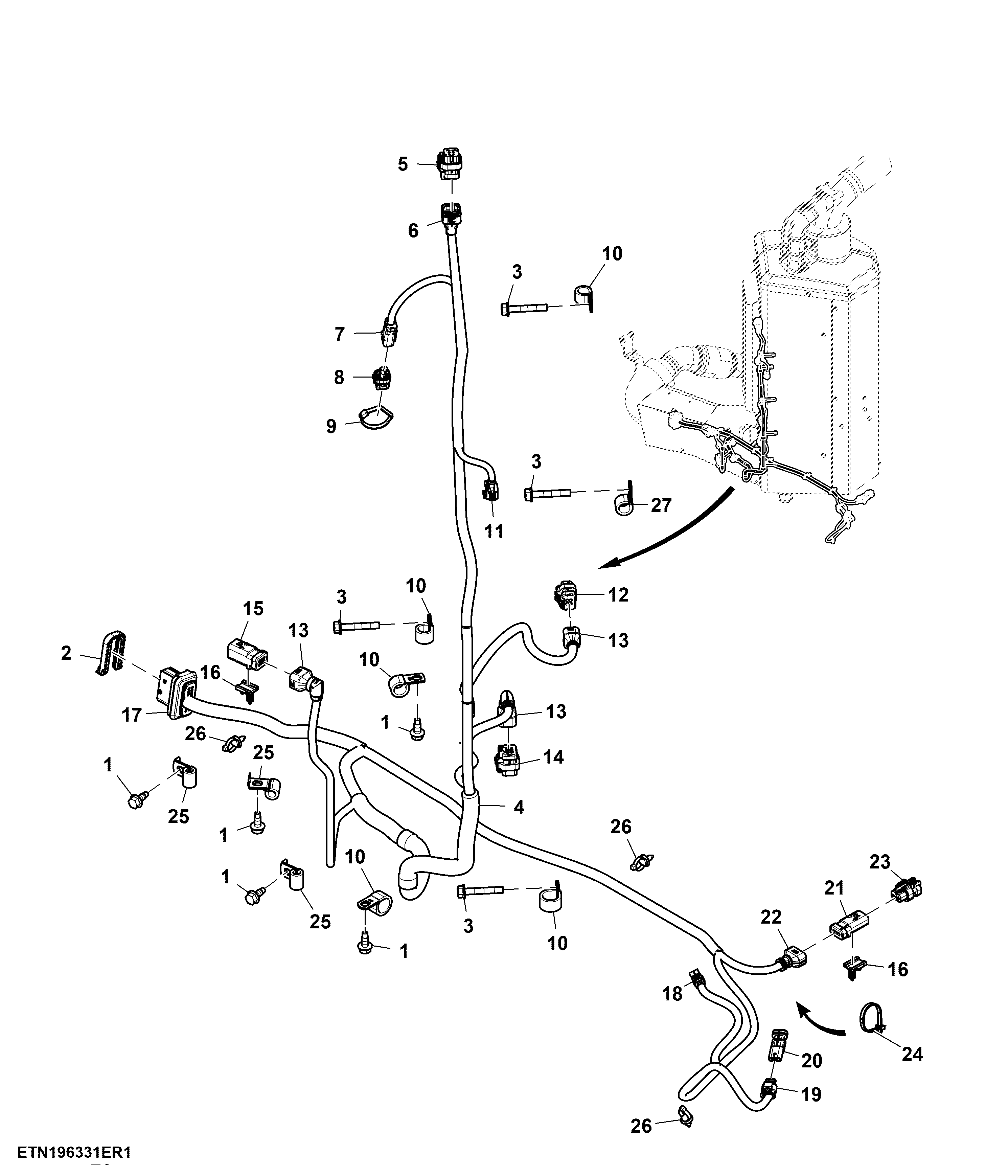

Chassis Wiring Harness, 13.6 L Stage 4 Engine, ATD / SCR
