Открытый узел

Wiring Harness, Chassis, W/ AutoTrac™, 13.6 L FT4 / Stage 5 Engine (3/4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA20844	1	Chassis Wiring Harness	-
2	57M11853	1	Elec. Connector Housing	Chassis to DEF Interconnect, XX210-1
2	RWA11036	1	Repair Wire Assembly	Cavity 1, 2, 4, 3, 7, 6, 11, 13, 12, 15, 18, 14
3	57M13073	1	Elec. Connector Accessory	-
4	57M12093	2	Elec. Connector Accessory	-
5	57M15586	1	Elec. Connector Housing	Chief Brick Fusion 62W Female Black Plastic, FEXX
5	57M15111	1	Elec. Connector Accessory	-
5	RWA11045	1	Repair Wire Assembly	Cavity 49, 51, 54, 34, 36, 30, 31, 32, 33, 25, 26, 27, 28, 29, 45, 46, 48
5	57M13357	1	Elec. Connector Terminal	Cavity 63, 65, 66
5	57M15434	1	Elec. Connector Seal	Cavity 63, 65, 66
5	57M10375	1	Elec. Connector Terminal	Cavity 64
5	57M15435	1	Elec. Connector Seal	Cavity 64
6	TA14886	1	Elec. Connector Accessory	-
7	57M7689	1	Fuse	10A, Alternator, FE28
8	57M7689	1	Fuse	10A, SCVLT, FE101
9	SJ15808	2	Relay	Ether, KE14
10	57M13178	1	Elec. Connector Accessory	2A, ECU, FE13
11	57M7690	1	Fuse	15A, Ether, FE14
12	57M7689	1	Fuse	10A, Alternator, FE07
13	57M7690	1	Fuse	15A, Steer, FE08
14	57M7691	1	Fuse	20A, ECU, FE01
15	57M8623	1	Fuse	25A, ECU, FE02
16	57M8623	1	Fuse	25A, ECU, FE03
17	57M8801	1	Fuse	60A, Implement Bus Breakaway Connector, FE100
18	57M13119	1	Elec. Connector Accessory	30A, Implement Bus Breakaway Connector ECU, FE30
19	57M14406	1	Elec. Connector Terminal	Alternator Power to Load Center, KSW2_OUT
20	57M10302	1	Elec. Connector Housing	Power Module, XX750-1
20	RWA11136	1	Repair Wire Assembly	Cavity 2, 6
21	57M11374	2	Elec. Connector Accessory	-
22	57M7290	1	Elec. Connector Accessory	-
22	RWA11083	1	Repair Wire Assembly	Cavity A, C
22	57M7687	1	Elec. Connector Housing	Service Light Switch, XS130
23	57M9779	1	Elec. Connector Housing	Battery Indicator Light, XE502
23	RWA11025	1	Repair Wire Assembly	Cavity 2
24	57M9940	4	Elec. Connector Accessory	-
25	57M8867	1	Elec. Connector Terminal	XGND14B_2
26	57M8897	1	Elec. Connector Terminal	XGND14A_1
27	57M7262	1	Elec. Connector Housing	Radar Extension, XB921
27	CB01489384	1	Elec. Connector Accessory	-
27	RWA11083	1	Repair Wire Assembly	Cavity E, F, C
28	57M7265	1	Elec. Connector Housing	XB921-1
28	57M12072	1	Elec. Connector Accessory	-
29	57M9796	1	Elec. Connector Housing	Transmission-2, XX232-1
29	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8
30	57M9804	1	Elec. Connector Housing	Transmission-1, XX230-1
30	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 10, 11, 12
31	57M9780	1	Elec. Connector Housing	Axle Supply Pressure, XB711
31	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
32	57M7985	1	Electrical Connector Assy	Axle Filter Restriction SW, XS555
32	RWA11082	1	Repair Wire Assembly	Cavity A, B
33	57M8910	3	Clip	-
34	57M9556	2	Elec. Connector Accessory	-
35	57M7985	1	Electrical Connector Assy	Hydraulic Oil Filter Restriction SW, XS551
35	RWA11082	1	Repair Wire Assembly	Cavity A, B
36	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
36	57M7255	1	Elec. Connector Housing	Diagnostic Pressure, X289
37	57M8219	1	Elec. Connector Terminal	-
38	57M12141	1	Clamp	-
39	57M7257	1	Elec. Connector Housing	Diagnostic Pressure, X289-1
39	57M7290	1	Elec. Connector Accessory	-
40	57M9780	1	Elec. Connector Housing	Chassis to Transmission Interconnect, XX331-1
40	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
41	57M15803	1	Elec. Connector Accessory	-
42	57M8901	1	Elec. Connector Terminal	Chassis Ground, XGND16
43	57M8919	1	Elec. Connector Housing	Road Wheel Angle Sensor, XB252
43	RWA11097	1	Repair Wire Assembly	Cavity B, C, D
44	57M10297	1	Elec. Connector Housing	Hyd Trailer Brake, XX790-1
44	RWA11137	1	Repair Wire Assembly	Cavity 9, 10
45	57M10298	1	Elec. Connector Housing	Cap
46	RWA11042	1	Repair Wire Assembly	Cavity 1, 2, 5, 7, 6, 9
46	57M11854	1	Elec. Connector Housing	AutoTrac™ / ACS™, XX204-1
47	TA21725	1	Wiring Harness	-
48	57M9800	1	Elec. Connector Housing	Hydraulic Sectional Steering Valve to Chassis Interconnect, XX980-2
49	57M15923	1	Elec. Connector Accessory	-
50	57M8625	1	Elec. Connector Housing	Pump Pressure 1, XB261
50	57M8624	1	Elec.Connect Locking Device	-
51	57M8625	1	Elec. Connector Housing	Pump Pressure 2, XB262
52	57M11405	2	Elec. Connector Accessory	-
53	57M8924	1	Elec. Connector Housing	Steer 1 Off, XY747/XY750
53	57M8633	1	Elec. Connector Accessory	-
54	57M9210	1	Elec. Connector Housing	Steer 1 Right, XY749/XY752
54	57M8633	1	Elec. Connector Accessory	-
55	57M8633	1	Elec. Connector Accessory	-
55	57M9210	1	Elec. Connector Housing	Steer 1 Left, XY748/XY751
56	57M8625	1	Elec. Connector Housing	Backup Pump Pressure, XB263
57	TA11665	1	Chassis Wiring Harness	-
58	57M11853	1	Elec. Connector Housing	Main Chassis Steering Interconnect, AutoTrac™ / ACS™, XX204-2
59	57M8924	1	Elec. Connector Housing	Hydraulic Oil Temperature, XB694
60	57M11380	1	Elec. Connector Accessory	-
61	57M9804	1	Elec. Connector Housing	Steering Harness to Hydraulic Sectional Steering Valve Interconnect, AutoTrac™ / ACS™, XX980-1
62	57M15923	1	Elec. Connector Accessory	-
63	RE258807	16	Tie Band	-
64	57M12128	1	Clamp	-
65	57M12123	7	Clamp	-
66	57M10233	4	Tie Band	-
67	57M12127	3	Clamp	-
68	RWA11030	1	Repair Wire Assembly	Cavity A1, C1, H1, A3, C2, E4, F1, D1, D2, F4, A4, F2, H2, J1, B2, B3, E1, G2, B4, E2, K1, K2, J3, B1, G1
68	RWA11032	1	Repair Wire Assembly	Cavity L1, L4, L3, L2, M3, M2, M4, M1
68	57M10614	1	Elec. Connector Housing	MECA Rear Controller 1, XA570-1
69	57M10613	1	Elec. Connector Housing	-
70	57M10367	1	Elec. Connector Housing	MECA Rear Controller 2, XA570-2
70	RWA11034	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
70	RWA11032	1	Repair Wire Assembly	Cavity 6, 17, 18, 29, 30, 41, 42, 53
70	RWA11030	1	Repair Wire Assembly	Cavity 7, 9, 10, 11, 12, 13, 14, 15, 16, 19, 21, 22, 23, 24, 25, 26, 27, 28, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 43, 44, 45, 46, 47, 48, 49, 50, 52
71	57M10401	1	Elec. Connector Accessory	-
72	57M12126	1	Clamp	-
73	57M13312	2	Clamp	-
74	57M12125	1	Clamp	-
75	57M10362	1	Clamp	-
76	57M13298	1	Clamp	-
77	57M13306	2	Clamp	-

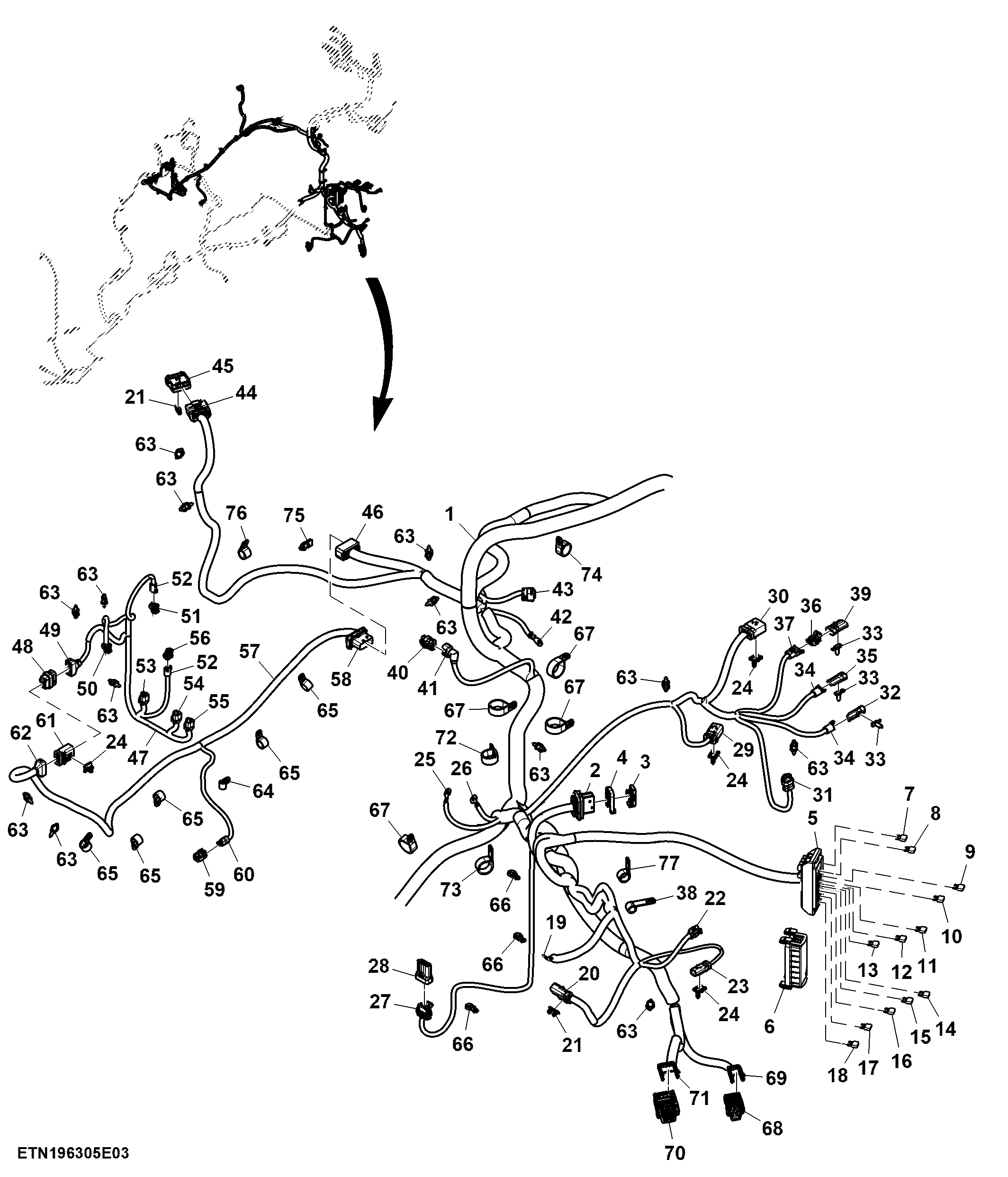

Wiring Harness, Chassis, W/ AutoTrac™, 13.6 L FT4 / Stage 5 Engine (3/4)

Нет текстового описания
