Oil Lines, High Flow Pump, For Scraper (1/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7299	3	Flange Nut	M12
2	19M7493	10	Cap Screw	M12 X 40
3	19M7662	10	Cap Screw	M10 X 30
4	19M7803	3	Screw	M8 X 70
5	19M7812	4	Screw	M10 X 100
6	19M7813	4	Screw	M12 X 45
7	19M7866	2	Screw	M8 X 20
8	19M7867	1	Screw	M8 X 25
9	19M7913	2	Screw	M8 X 90
10	19M8011	10	Cap Screw	M12 X 30
11	19M8543	2	Cap Screw	M20 X 30
12	24M7047	22	Washer	13 X 24 X 2.500 mm
13	24M7106	10	Washer	10 X 18 X 2.500 mm
14	24M7240	4	Washer	13 X 25 X 3 mm
15	24M7547	2	Washer	21 X 34 X 3 mm
16	38H5006	1	Adapter Fitting	INCLUDES 51M7048
17	38H5020	1	Elbow Fitting	-
18	38H5207	1	Elbow Fitting	-
19	51M7048	2	O-Ring	29.600 X 2.900 mm
20	51M7065	3	O-Ring	47.219 X 3.531 mm
21	T78784	1	O-Ring	-
22	RE581160	1	Oil Line	Return Manifold to Filter
23	TA18805	1	Oil Line	Return Manifold to Drain Line, INCLUDES T78784 AND T34248
24	AH234918	2	Hose Clamp	-
25	CB11489177	1	Clamp	-
26	N205415	1	Clamp	-
27	R125346	6	Clamp	-
28	R125347	6	Plate	-
29	R139743	2	Stud	-
30	R29867	4	Flange Fitting	-
31	R37023	2	Flange Fitting	-
32	T24959	1	Clamp	-
33	T283826	2	Flange Fitting	-
34	T34248	3	O-Ring	-
35	X51H-24	6	Flange Fitting	-
36	T76938	4	O-Ring	-
37	T78393	4	O-Ring	-
38	TA20912	1	Oil Line	Transmission Cooler to Cooler Bypass
39	TA11222	1	Oil Line	Front Axle Lube Supply
40	TA14136	1	Line	Charge Pump Supply
41	TA14957	1	Oil Line	Pump Outlet to PRV
42	U46457	4	O-Ring	-
43	TA17758	1	Hydraulic Hose	85CC HSSV Supply
44	TA21466	1	Oil Line	Transmission Scavenge Oil, INCLUDES (2) 51M7065
45	TA17765	1	Hydraulic Hose	Charge Supply Post Manifold, INCLUDES (2) U46457
46	TA21845	1	Hydraulic Hose	Charge Supply Hose Pre Manifold, INCLUDES (2) U46457
47	TA17767	1	Hydraulic Hose	Axle Lube Supply, INCLUDES 51M7065 AND T78393
48	TR110254	1	Manifold	Pump Outlet Manifold
49	TR111457	1	Bracket	-
50	TR116959	1	Half Clamp	-
51	TR116960	2	Half Clamp	-
52	TR116965	1	Manifold	Charge Supply Manifold
53	TR116966	1	Bracket	-
54	19M7403	2	Cap Screw	M12 X 35
55	42M7105	1	Stud	-
56	TA20833	1	Check Valve	INCLUDES T76938
57	19M8637	4	Cap Screw	M10 X 40
58	R116948	4	Washer	10.500 X 15.880 X 5.600 mm (0.413" X 5/8" X 0.220")

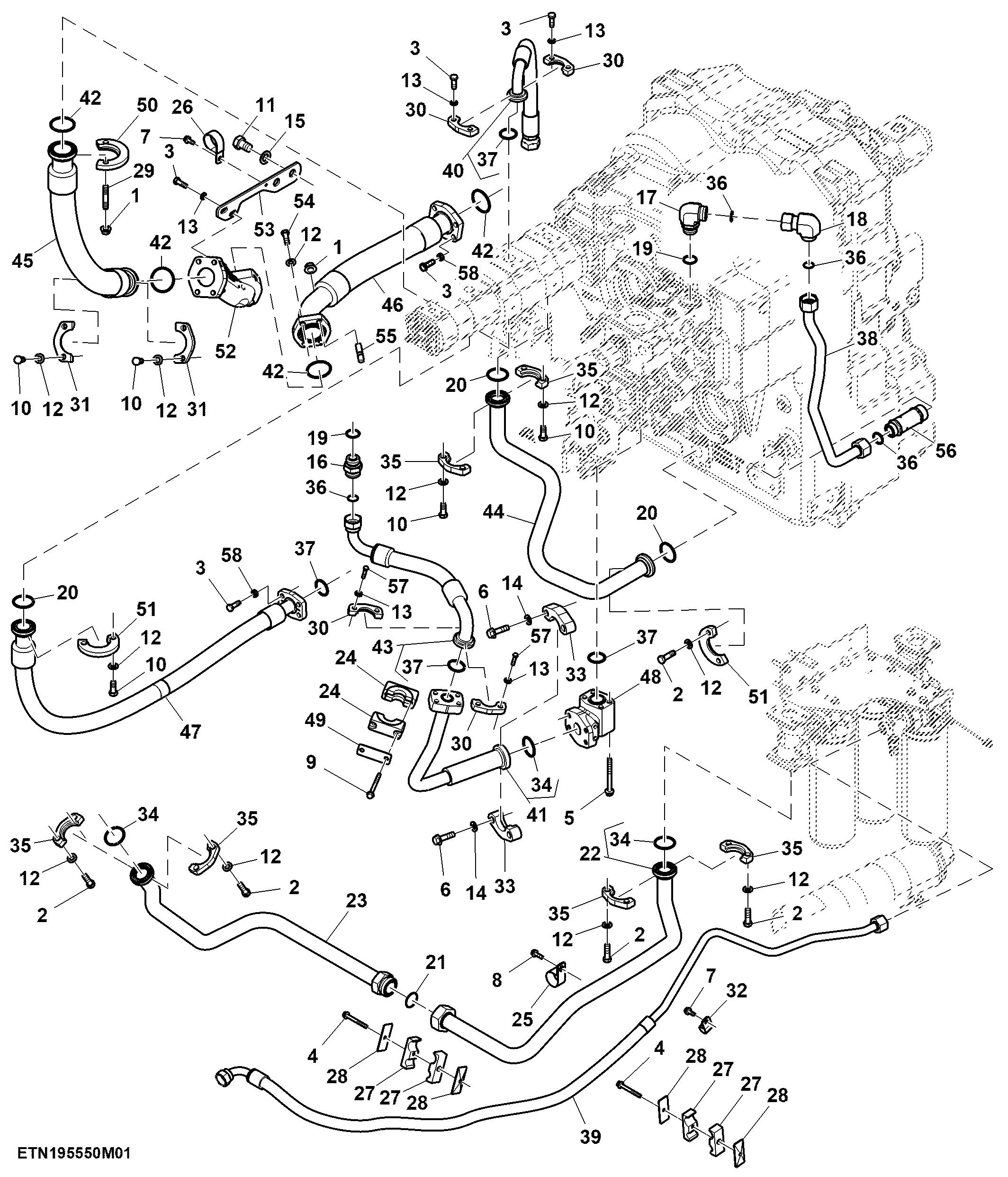

Oil Lines, High Flow Pump, For Scraper (1/2)
