Hydraulic Lines, High Flow Pump, 4 or 6 Rear SCV, W/ Short Drawbar Support (For Scraper) (2/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H5016	1	Elbow Fitting	INCLUDES 51M7041
2	51M7041	3	O-Ring	11.300 X 2.200 mm
3	T77613	13	O-Ring	-
4	RE567260	1	Hydraulic Hose	SCV Zero Pressure Drain
5	R202160	1	Clamp	-
6	R342142	2	Block Clamp	-
7	H114901	1	Plate	-
8	19M8039	1	Screw	M8 X 80
9	14M7298	1	Flange Nut	M8
10	R543914	1	Guide	-
11	21M7580	2	Socket Head Screw	M8 X 25
12	38H5275	1	Adapter Fitting	-
13	T77814	2	O-Ring	-
14	TR105551	2	Bracket	-
15	RE306508	1	Fitting	-
16	R26375	1	O-Ring	-
17	38H5105	2	Tee Fitting	-
18	RE60701	2	Diagnostic Coupling	-
19	TY22472	2	Clamp	-
20	19M7785	2	Screw	M10 X 25
21	38H5008	1	Adapter Fitting	INCLUDES 51M7040
22	51M7040	1	O-Ring	9.300 X 2.200 mm
23	RE592804	1	Hydraulic Hose	High Flow Load Sense, INCLUDES T77613
24	RE566860	1	Hydraulic Hose	Scraper SCV Accum To Stack
25	E53830	1	Clamp	-
26	19M7866	1	Screw	M8 X 20
27	RE567130	1	Oil Line	-
28	T78784	2	O-Ring	-
29	T34248	1	O-Ring	-
30	RE574870	1	Line	SCV Return high flow
31	51M7048	2	O-Ring	29.600 X 2.900 mm
32	X51H-24	2	Flange Fitting	-
33	24M7240	4	Washer	13 X 25 X 3 mm
34	19M7403	4	Cap Screw	M12 X 35
35	RE264764	1	Check Valve	-
36	RE342129	1	Hydraulic Hose	SCV Load Sense Connect at Top of Stack
37	RE575169	1	Hydraulic Hose	Load Sense Through Gudgeon, INCLUDES T77613
38	RE587017	1	Line	-
39	RE574609	1	Hydraulic Hose	High FLow SCV Return, INCLUDES (2) T78784
40	RE574869	1	Oil Line	SCV Combined Return
41	38H5002	1	Adapter Fitting	INCLUDES 51M7041
42	R77175	2	Cover	-
43	RE196771	1	Hydraulic Accumulator	-
44	TA10310	1	Hydraulic Hose	-
45	T78612	3	O-Ring	-
46	38H5149	2	Elbow Fitting	-
47	TR122507	1	Fitting	-

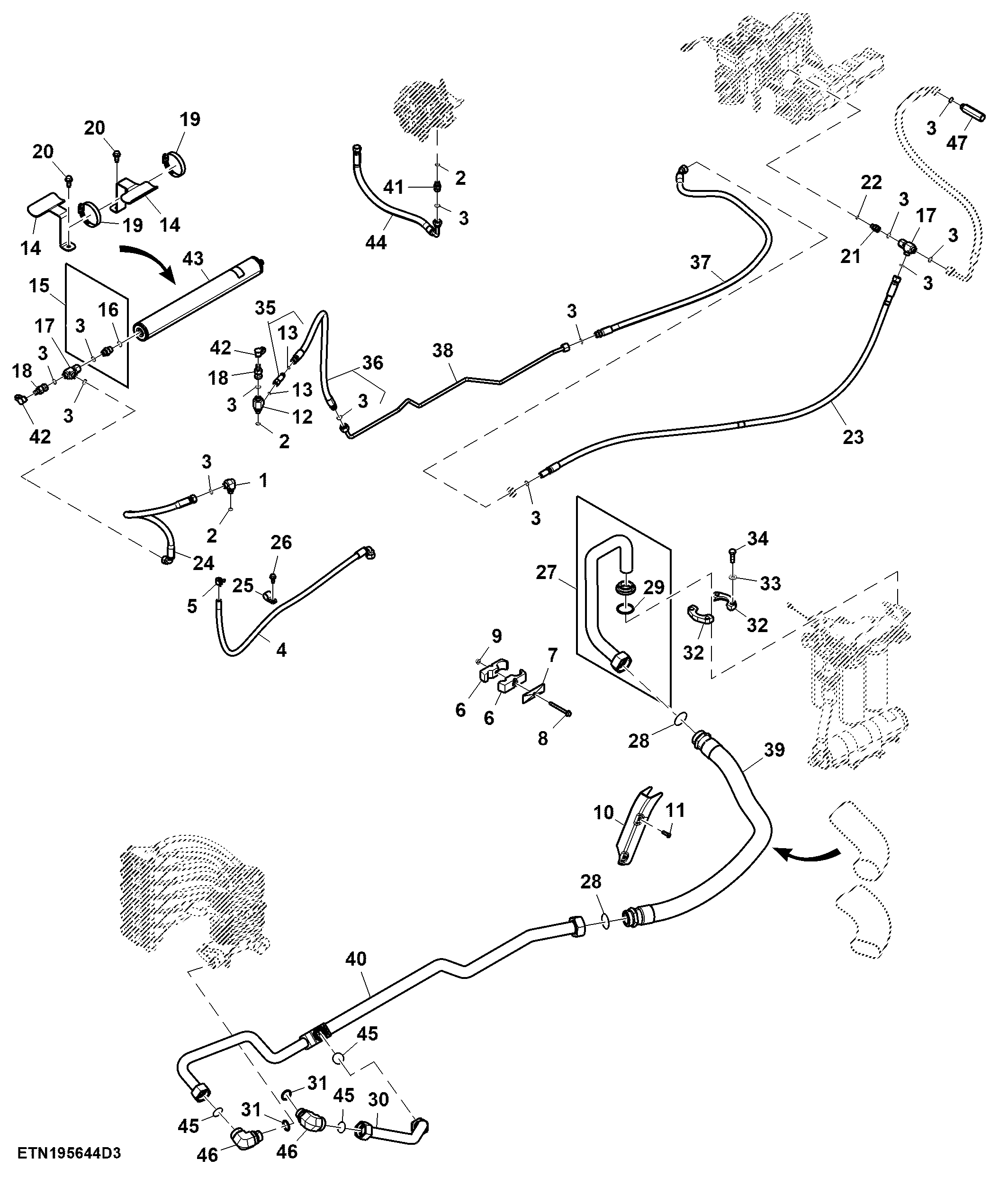

Hydraulic Lines, High Flow Pump, 4 or 6 Rear SCV, W/ Short Drawbar Support (For Scraper) (2/2)
