Oil Lines, High Flow Pump, For Scraper (2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7186	1	Bolt	M8 X 30
2	14M7296	1	Flange Nut	M10
3	14M7298	2	Flange Nut	M8
4	14M7573	1	Flange Nut	M8
5	19M7662	16	Cap Screw	M10 X 30
6	19M7784	2	Screw	M10 X 20
7	19M7804	1	Screw	M10 X 40
8	19M7866	6	Screw	M8 X 20
9	19M7868	1	Screw	M8 X 30
10	19M7904	4	Cap Screw	M12 X 160
11	19M7791	8	Bolt	M12 X 40
12	24M7106	16	Washer	10 X 18 X 2.500 mm
13	24M7240	4	Washer	13 X 25 X 3 mm
14	28H1497	1	Bushing	0.493" X 0.675" X 1-1/2"
15	38H5019	1	Elbow Fitting	INCLUDES 51M7047
16	38H5023	1	Elbow Fitting	INCLUDES 51M7041
17	TA19664	1	Oil Line	Front Axle Scavenge Pump Outlet
18	38H5066	1	Elbow Fitting	-
19	38H5206	1	Adapter Fitting	-
20	38H5401	1	Adapter Fitting	-
21	38H5405	1	Tee Fitting	-
22	38H5503	1	Adapter Fitting	-
23	42M7129	1	Stud	-
24	51M7041	2	O-Ring	11.300 X 2.200 mm
25	51M7045	1	O-Ring	19.300 X 2.200 mm
26	51M7047	1	O-Ring	23.600 X 2.900 mm
27	51M7048	2	O-Ring	29.600 X 2.900 mm
28	51M7049	1	O-Ring	38.600 X 2.900 mm
29	AT121321	1	Hose Clamp	-
30	N205415	2	Clamp	-
31	TA19663	1	Hydraulic Hose	Front Axle Scavenge Pump Outlet
32	H61354	4	Flange Fitting	-
33	N189220	1	Tie Band	-
34	R109479	1	Clamp	-
35	R244801	1	Spacer	-
36	R29424	2	Flange Fitting	-
37	R29867	2	Flange Fitting	-
38	R37023	4	Flange Fitting	-
39	R46667	4	Clamp	-
40	R553326	1	Stud	-
41	TA20833	1	Check Valve	INCLUDES T76938
42	R73291	1	Clamp	-
43	RE567487	1	Hydraulic Hose	Rear Axle Lube Supply
44	TA26777	1	Hydraulic Hose	Rear axle scavenge Pump, INCLUDES T78393
45	RE580135	1	Hydraulic Hose	Transmission Scavage Pump Return
46	RE583681	1	Check Valve	-
47	TA21637	1	Oil Line	-
48	RE594813	1	Line	Rear Axle Lube
49	T195864	2	Flange Fitting	-
50	T24959	1	Clamp	-
51	T59014	1	O-Ring	-
52	T76938	3	O-Ring	-
53	T77613	2	O-Ring	-
54	T77857	1	O-Ring	-
55	T77858	5	O-Ring	-
56	T78313	2	O-Ring	-
57	T78393	1	O-Ring	-
58	TA25913	1	Hydraulic Hose	Pump Load Sense
59	TA21892	1	Oil Line	Filter Return to Pump, INCLUDES (2) U46457
60	TA17754	1	Line	Case Drain to Reservoir
61	TA22505	1	Line	HF Pump to HSSV
62	TA17777	1	Bracket	-
63	TR121742	1	Bracket	-
64	TA17787	1	Hydraulic Hose	Rear Axle Scavenge Pump Outlet
65	TA17802	1	Bracket	-
66	TA21893	1	Oil Line	Charge Supply Line
67	TA18322	1	Bracket	-
68	TA18342	1	Bracket	-
69	TA20911	1	Hydraulic Hose	Cooler Bypass to Reservoir
70	TA18887	1	Oil Line	HF Case Drain to Reservoir
71	TA18895	1	Oil Line	Low Pressure Manifold Return
72	TR116971	1	Block Clamp	-
73	TR118289	1	Bracket	-
74	TR118398	1	Block Clamp	-
75	U12331	1	O-Ring	-
76	U46457	2	O-Ring	-
77	H224073	2	Tie Band	-
78	AN209168	1	Swivel	-
79	R557817	3	Screw	-

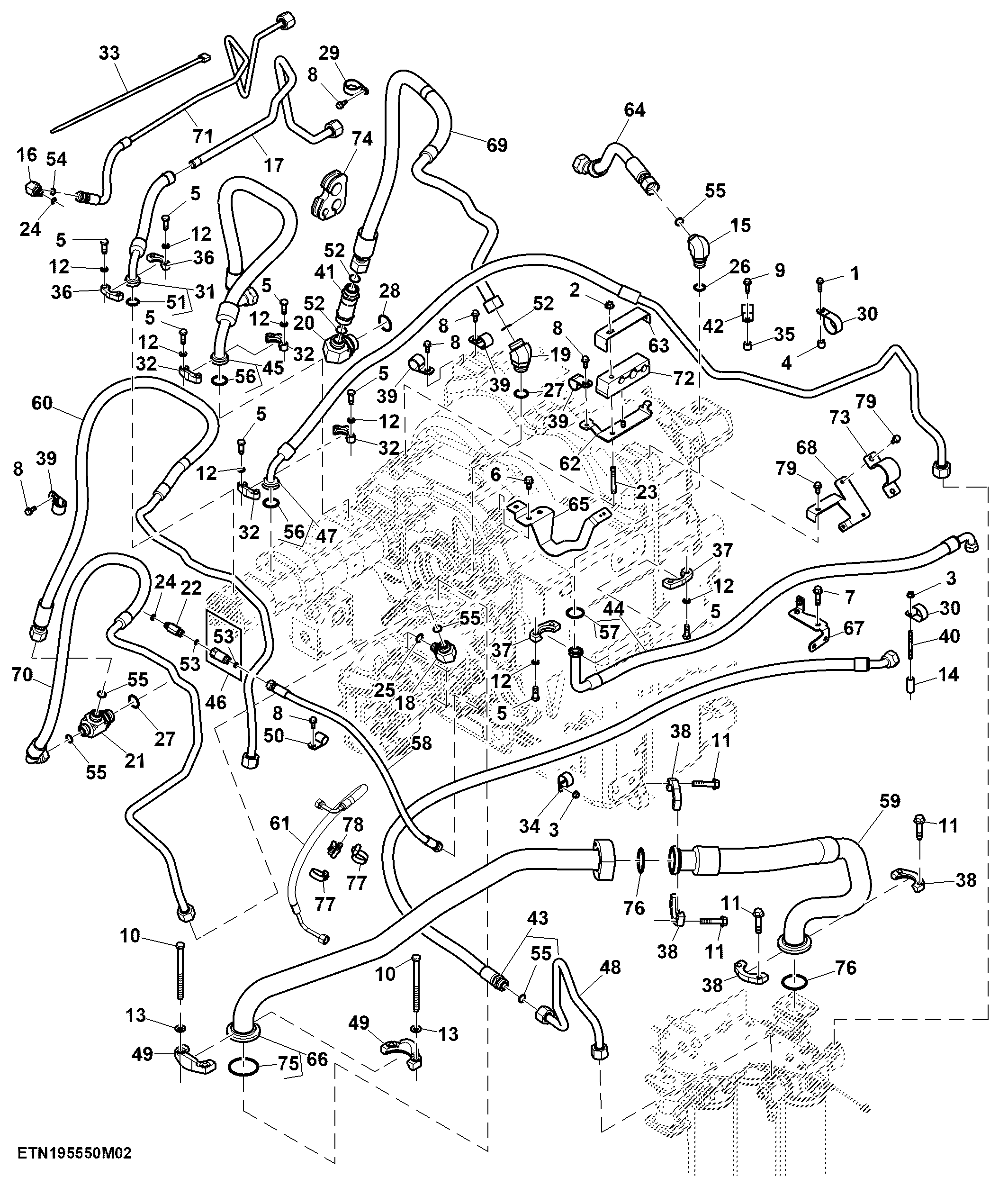

Oil Lines, High Flow Pump, For Scraper (2/2)
