Oil Lines, 4 Rear SCV, Standard Flow, Long Drawbar Support (For Scrapper) (2/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R342142	2	Block Clamp	-
2	H114901	1	Plate	-
3	19M8039	1	Screw	M8 X 80
4	14M7298	4	Flange Nut	M8
5	R543914	1	Guide	-
6	21M7580	2	Socket Head Screw	M8 X 25
7	TA22366	1	Oil Line	SCV, Load Sense
8	RE567130	1	Oil Line	SCV Return
9	T34248	1	O-Ring	-
10	RE568221	1	Hydraulic Hose	SCV Return
11	T78784	1	O-Ring	-
12	T78612	1	O-Ring	-
13	R519426	1	Screw	-
14	R548827	1	Clamp	-
15	R544978	2	Cover	-
16	H159104	1	Washer	9.250 X 13.720 X 9.520 mm (0.364" X 0.540" X 3/8")
17	19M9915	1	Screw	M8 X 130
18	24H1294	1	Washer	11/32" X 1-1/8" X 1/16"
19	19M8006	1	Screw	M8 X 120
20	24M7240	4	Washer	13 X 25 X 3 mm
21	19M7403	4	Cap Screw	M12 X 35
22	RE597299	1	Hydraulic Hose	Load Sense
23	T77613	5	O-Ring	-
24	RE570861	1	Cable	-
25	R551064	1	Hose Guard	-
26	R551065	1	Hose Guard	-
27	R76477	2	Tie Band	-
28	R105388	2	Tie Band	-
29	TA21437	1	Oil Line	SCV, Pressure
30	T76938	4	O-Ring	-
31	TA23649	1	Hydraulic Hose	SCV Supply
32	TA10310	1	Hydraulic Hose	LS to HSSV
33	38H5002	1	Adapter Fitting	-
34	51M7041	1	O-Ring	11.300 X 2.200 mm
35	38H5100	1	Union Fitting	-
36	RE587405	1	Hydraulic Hose	SCV Supply
37	38H5091	1	Nut	11/16"
38	X51H-24	2	Flange Fitting	-
39	R567883	1	Fitting	-
40	TR110475	1	Bracket	-
41	38H5095	2	Nut	1-7/16"
42	R565664	4	Isolator	-
43	24M7101	8	Washer	11 X 34 X 3 mm
44	19M8241	4	Cap Screw	M10 X 100
45	TA22506	1	Bracket	-
46	19M7866	3	Screw	M8 X 20
47	TA14504	1	Bracket	-
48	R73291	2	Clamp	-
49	R568700	1	Grommet	-
50	R568698	1	Half Clamp	-
51	R568697	1	Half Clamp	-
52	14M7296	2	Flange Nut	M10
53	19M7394	2	Cap Screw	M16 X 25
54	TR122507	1	Fitting	-

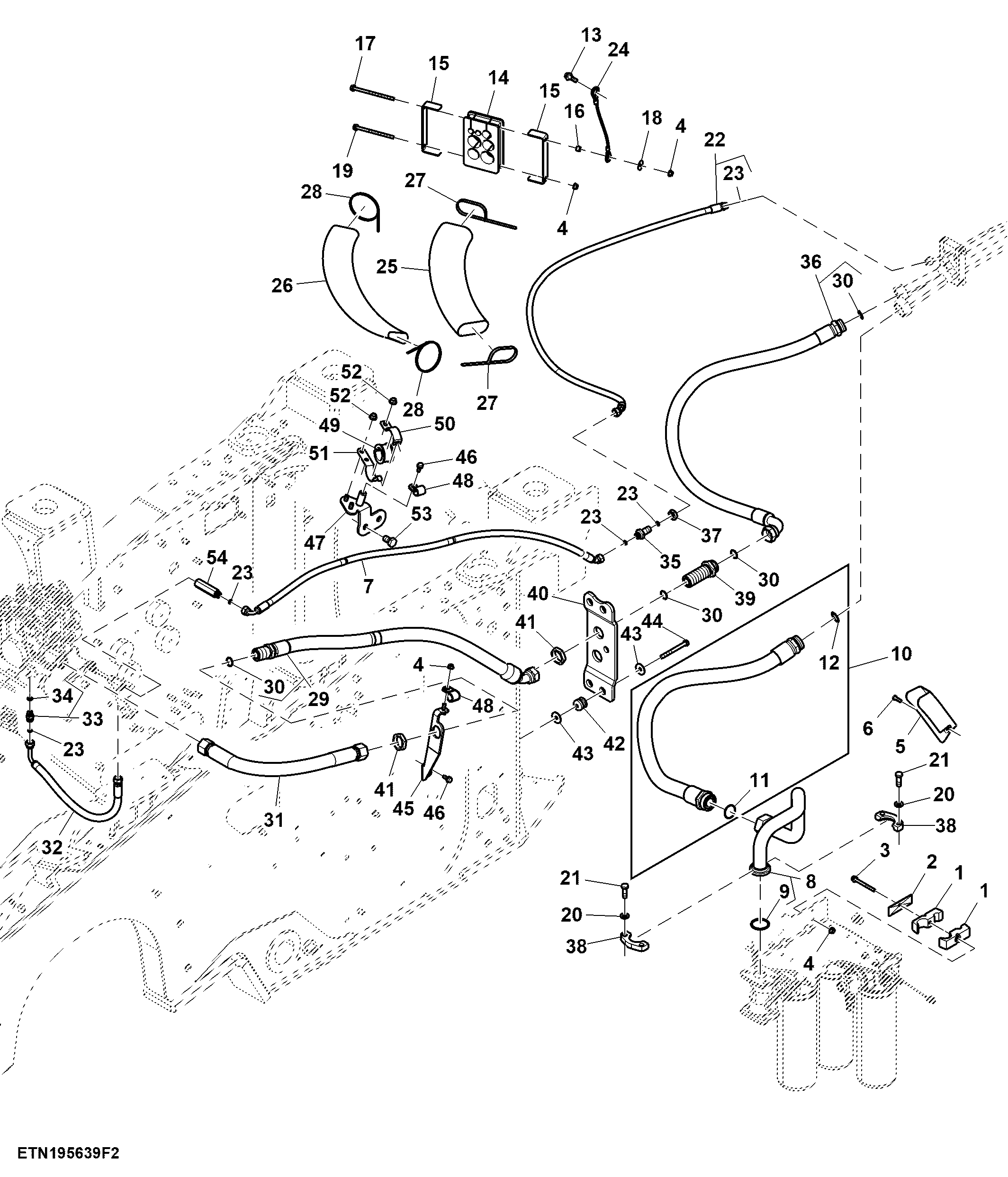

Oil Lines, 4 Rear SCV, Standard Flow, Long Drawbar Support (For Scrapper) (2/2)
