Открытый узел

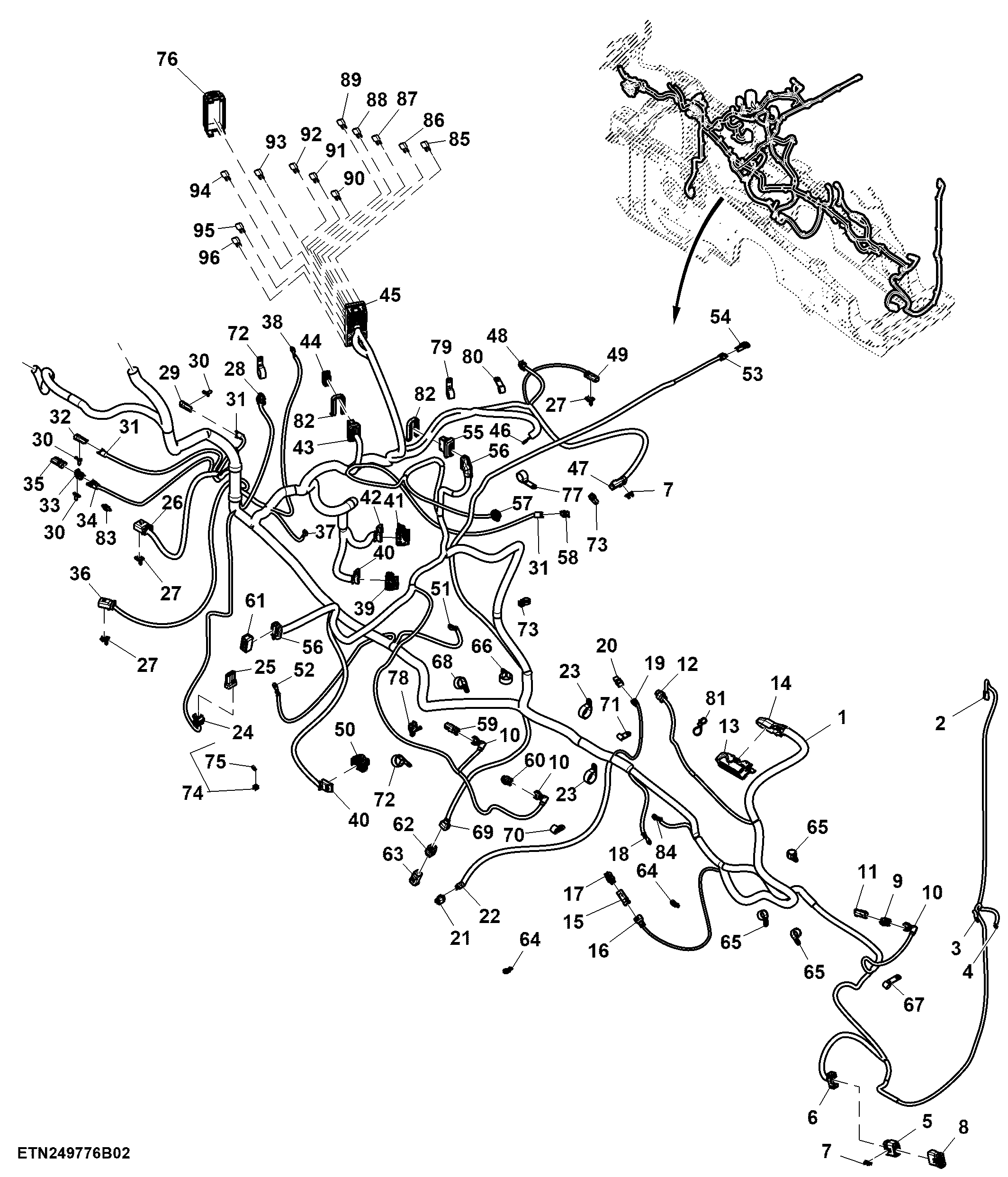

Wiring Harness, Chassis, W/ SFA, 13.6 L T2/ T3 Engine(2/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA20841	1	Chassis Wiring Harness	-
2	57M8812	1	Elec. Connector Housing	Ether Solenoid, XY5018
2	RWA11076	1	Repair Wire Assembly	Cavity B, A
3	57M7250	1	Elec. Connector Terminal	Horn, XB924-2
4	57M7250	1	Elec. Connector Terminal	Horn, XB924-1
5	57M10297	1	Elec. Connector Housing	Wheel Suspension, XX341-1
5	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 13, 14
6	57M12119	1	Elec. Connector Accessory	-
7	57M11374	2	Elec. Connector Accessory	-
8	57M10298	1	Elec. Connector Housing	-
9	57M9775	1	Elec. Connector Housing	Fan Speed, XX034-1
9	RWA11029	1	Repair Wire Assembly	Cavity 1, 2
10	57M15924	3	Elec. Connector Accessory	-
11	57M11333	1	Elec. Connector Accessory	-
12	57M9780	1	Elec. Connector Housing	Ether, XX5097-1
12	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
13	57M15968	1	Elec. Connector Housing	ECU, XA5505-3
13	RWA11044	1	Repair Wire Assembly	Cavity 13, 15, 17, 18, 19, 20, 21, 16, 46, 48, 55, 51, 53, 52, 32, 31, 12, 43, 44, 23, 27, 25, 29, 28, 37, 38, 39, 8, 11, 3, 2, 1, 7, 5, 4
13	RWA11047	1	Repair Wire Assembly	Cavity 62, 58, 57, 60, 59, 61
14	57M8738	1	Elec. Connector Accessory	-
15	57M9776	1	Elec. Connector Housing	CAN Termination, XA912
15	RWA11023	1	Repair Wire Assembly	Cavity 1, 2
16	57M15493	1	Elec. Connector Accessory	-
17	57M11134	1	Elec. Connector Housing	-
18	57M8901	1	Elec. Connector Terminal	Single Point Ground Stud 1, XGND11
19	57M10517	1	Elec. Connector Housing	Fan Solenoid, XY5014
19	57M8022	1	Elec.Connect Locking Device	-
19	RWA11058	1	Repair Wire Assembly	Cavity 1, 2
20	57M9037	1	Elec. Connector Housing	-
20	57M7621	1	Elec.Connect Locking Device	-
21	57M8924	1	Elec. Connector Housing	Front Diff Lock, XY683
21	RWA11097	1	Repair Wire Assembly	Cavity B, A
22	57M11380	1	Elec. Connector Accessory	-
23	57M12127	8	Clamp	-
24	RWA11083	1	Repair Wire Assembly	Cavity E, F, C
24	CB01489384	1	Elec. Connector Accessory	-
24	57M7262	1	Elec. Connector Housing	Radar Extension, XB921
25	57M7265	1	Elec. Connector Housing	-
25	57M12072	1	Elec. Connector Accessory	-
26	57M9804	1	Elec. Connector Housing	TRANSMISSION-1, XX230-1
26	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8, 10, 11, 12
27	57M9940	3	Elec. Connector Accessory	-
28	57M9780	1	Elec. Connector Housing	Axle Supply Pressure, XB711
28	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
29	57M7985	1	Electrical Connector Assy	Axle Filter Restriction SW, XS555
29	RWA11082	1	Repair Wire Assembly	Cavity A, B
30	57M8910	3	Clip	-
31	57M9556	4	Elec. Connector Accessory	-
32	57M7985	1	Electrical Connector Assy	HYD Oil Filter Restriction SW, XS551
32	RWA11082	1	Repair Wire Assembly	Cavity A, B
33	57M7255	1	Elec. Connector Housing	Diagnostic Pressure, X289
33	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
34	57M8219	1	Elec. Connector Terminal	-
35	57M7257	1	Elec. Connector Housing	-
35	57M7290	1	Elec. Connector Accessory	-
36	57M9796	1	Elec. Connector Housing	Transmission-2, XX232-1
36	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8
37	57M8897	1	Elec. Connector Terminal	XGND14A
38	57M8869	1	Elec. Connector Terminal	XGND14B
39	57M10614	1	Elec. Connector Housing	MECA Rear Controller 1, XA570-1
39	RWA11030	1	Repair Wire Assembly	Cavity A1, C1, H1, A3, C2, E4, F1, D1, D2, F4, A4, F2, H2, J1, B2, B3, E1, G2, B4, E2, K1, K2, J3, B1, G1
39	RWA11032	1	Repair Wire Assembly	Cavity L1, L3, L2, M3, M2, M1
40	57M10613	2	Elec. Connector Housing	-
41	57M10367	1	Elec. Connector Housing	MECA Rear Controller 2, XA570-2
41	RWA11034	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
41	RWA11032	1	Repair Wire Assembly	Cavity 6, 17, 18, 29, 30, 41, 42, 53
41	RWA11030	1	Repair Wire Assembly	Cavity 7, 9, 10, 11, 12, 13, 14, 15, 16, 19, 21, 22, 23, 24, 25, 26, 27, 28, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 43, 44, 45, 46, 47, 48, 49, 50, 52
42	57M10401	1	Elec. Connector Accessory	-
43	RWA11036	1	Repair Wire Assembly	Cavity 1, 2, 4, 3, 7, 6, 11, 13, 12, 15, 18, 14
43	57M11853	1	Elec. Connector Housing	CHASSIS TO DEF INTERCONNECT, XX210-1
44	57M13073	1	Elec. Connector Accessory	-
45	57M15111	1	Elec. Connector Accessory	-
45	57M15586	1	Elec. Connector Housing	Chief Brick Fusion 62W Female Black Plastic, FEXX
45	RWA11045	1	Repair Wire Assembly	Cavity 49, 51, 54, 34, 36, 30, 31, 32, 33, 25, 26, 27, 28, 29, 45, 46, 48
46	57M14406	1	Elec. Connector Terminal	ALT Power To Load Center, KSW2_OUT
47	57M10302	1	Elec. Connector Housing	Power Module, XX750-1
47	RWA11136	1	Repair Wire Assembly	Cavity 2, 6
48	57M7687	1	Elec. Connector Housing	Service Light Switch, XS130
48	57M7290	1	Elec. Connector Accessory	-
48	RWA11083	1	Repair Wire Assembly	Cavity A, C
49	57M9779	1	Elec. Connector Housing	Battery Indicator Light, XE502
49	RWA11025	1	Repair Wire Assembly	Cavity 2
50	57M10615	1	Elec. Connector Housing	Driveline Sence Controller, XA401
50	RWA11030	1	Repair Wire Assembly	Cavity A1, B3, K2, B1
50	RWA11032	1	Repair Wire Assembly	Cavity L1, L2, M2, M1
51	57M9535	1	Elec. Connector Terminal	XGND12B
52	57M11404	1	Elec. Connector Terminal	XGND12A
53	57M15076	1	Elec. Connector Housing	Extremity_Light_Conn, XX132-1
53	RWA11108	1	Repair Wire Assembly	Cavity 1, 2, 3
54	57M15077	1	Elec. Connector Housing	-
55	57M12091	1	Elec. Connector Housing	Chassis To Hood Interconnect 1, XX080-1
55	RWA11036	1	Repair Wire Assembly	Cavity 4, 3, 2, 1, 5, 9, 10, 6, 12, 14, 13, 11
55	RWA11039	1	Repair Wire Assembly	Cavity 8, 7, 16, 15
56	57M11864	2	Elec. Connector Accessory	-
57	57M9144	1	Elec. Connector Housing	Quadcan_Conn, XB5500
57	RWA11130	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
58	57M7254	1	Elec. Connector Housing	Coolant Level Loss, XB5009
58	RWA11083	1	Repair Wire Assembly	Cavity A, B
59	57M9779	1	Elec. Connector Housing	Starter Solenoid, XX5083-3
60	57M9775	1	Elec. Connector Housing	XX5083-1
60	RWA11027	1	Repair Wire Assembly	Cavity 1
61	57M11854	1	Elec. Connector Housing	Chassis To ATD/ SCR Interconnect, XX003-1
61	RWA11042	1	Repair Wire Assembly	Cavity 1, 2, 4, 8, 10, 9, 15, 18, 14
62	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3
62	57M9786	1	Elec. Connector Housing	SFA Position, XB301
63	57M11336	1	Elec. Connector Accessory	-
64	57M10233	31	Tie Band	-
65	57M12125	3	Clamp	-
66	57M12134	1	Clamp	-
67	57M13292	1	Clamp	-
68	57M12126	3	Clamp	-
69	57M15920	1	Elec. Connector Accessory	-
70	57M12138	1	Clamp	-
71	57M12146	1	Clamp	-
72	57M13312	3	Clamp	-
73	AH225366	2	Clip	-
74	AH225364	4	Clip	-
75	R44302	1	Tie Band	-
76	TA14886	1	Elec. Connector Accessory	-
77	57M12147	2	Clamp	-
78	TA18051	1	Tie Band	-
79	57M13306	2	Clamp	-
80	57M12141	1	Clamp	-
81	57M10421	1	Elec. Connector Accessory	-
82	57M12093	2	Elec. Connector Accessory	-
83	RE258807	9	Tie Band	-
84	57M8865	1	Elec. Connector Terminal	GND10
85	57M7689	1	Fuse	10A, Alternator, FE28
86	57M7689	1	Fuse	10A, SCVLT, FE101
87	SJ15808	2	Relay	Ether, KE14
88	57M13178	1	Elec. Connector Accessory	2A, ECU, FE13
89	57M7690	1	Fuse	15A, Ether, FE14
90	57M7689	1	Fuse	10A, Alternator, FE07
91	57M7690	1	Fuse	15A, Steer, FE08
92	57M7691	1	Fuse	20A, ECU, FE01
93	57M8623	1	Fuse	25A, ECU, FE02
94	57M8623	1	Fuse	25A, ECU, FE03
95	57M8801	1	Fuse	60A, Implement Bus Breakaway Connector, FE100
96	57M13119	1	Elec. Connector Accessory	30A, Implement Bus Breakaway Connector ECU, FE30

Wiring Harness, Chassis, W/ SFA, 13.6 L T2/ T3 Engine(2/3)

Нет текстового описания
