Oil Lines, SCV, W/ High Flow, W/ Long Drawbar Support, (For Scraper) (2/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R552359	2	Block Clamp	-
2	38H5016	1	Elbow Fitting	INCLUDES 51M7041
3	51M7041	2	O-Ring	11.300 X 2.200 mm
4	T77613	6	O-Ring	-
5	R344704	1	Cover	-
6	R344628	1	Cover	-
7	19M7866	1	Screw	M8 X 20
8	19M7970	3	Screw	M8 X 100
9	14M7298	1	Flange Nut	M8
10	M84309	1	Nut	-
11	TR105551	2	Bracket	-
12	RE196771	1	Hydraulic Accumulator	-
13	RE306508	1	Fitting	-
14	R26375	1	O-Ring	-
15	38H5105	1	Tee Fitting	-
16	RE60701	2	Diagnostic Coupling	-
17	R77175	2	Cover	-
18	TY22472	2	Clamp	-
19	19M7785	2	Screw	M10 X 25
20	RE342129	1	Hydraulic Hose	Load Sense, High Flow SCV
21	38H5149	2	Elbow Fitting	-
22	T78612	3	O-Ring	-
23	51M7048	4	O-Ring	29.600 X 2.900 mm
24	38H5275	1	Adapter Fitting	-
25	T77814	1	O-Ring	-
26	RE566860	1	Hydraulic Hose	Scraper SCV Accumulator To Stack
27	RE196770	1	Check Valve	-
28	T76938	3	O-Ring	-
29	RE574909	1	Line	Scraper Long Standard Pressure, High Flow
30	RE574910	1	Line	Scraper Long Load Sense
31	RE576876	1	Line	Scraper Long Standard Return, Combined
32	38H5120	1	Fitting	-
33	RE574870	1	Line	Scraper, Wheel, High Flow SCV Return
34	RE574911	1	Line	Scraper Long High Flow, Pressure
35	R129325	2	Clamp	-
36	H112567	1	Plate	-
37	RE210893	1	Plate	-
38	19M7800	1	Screw	M8 X 50
39	38H5020	1	Elbow Fitting	-

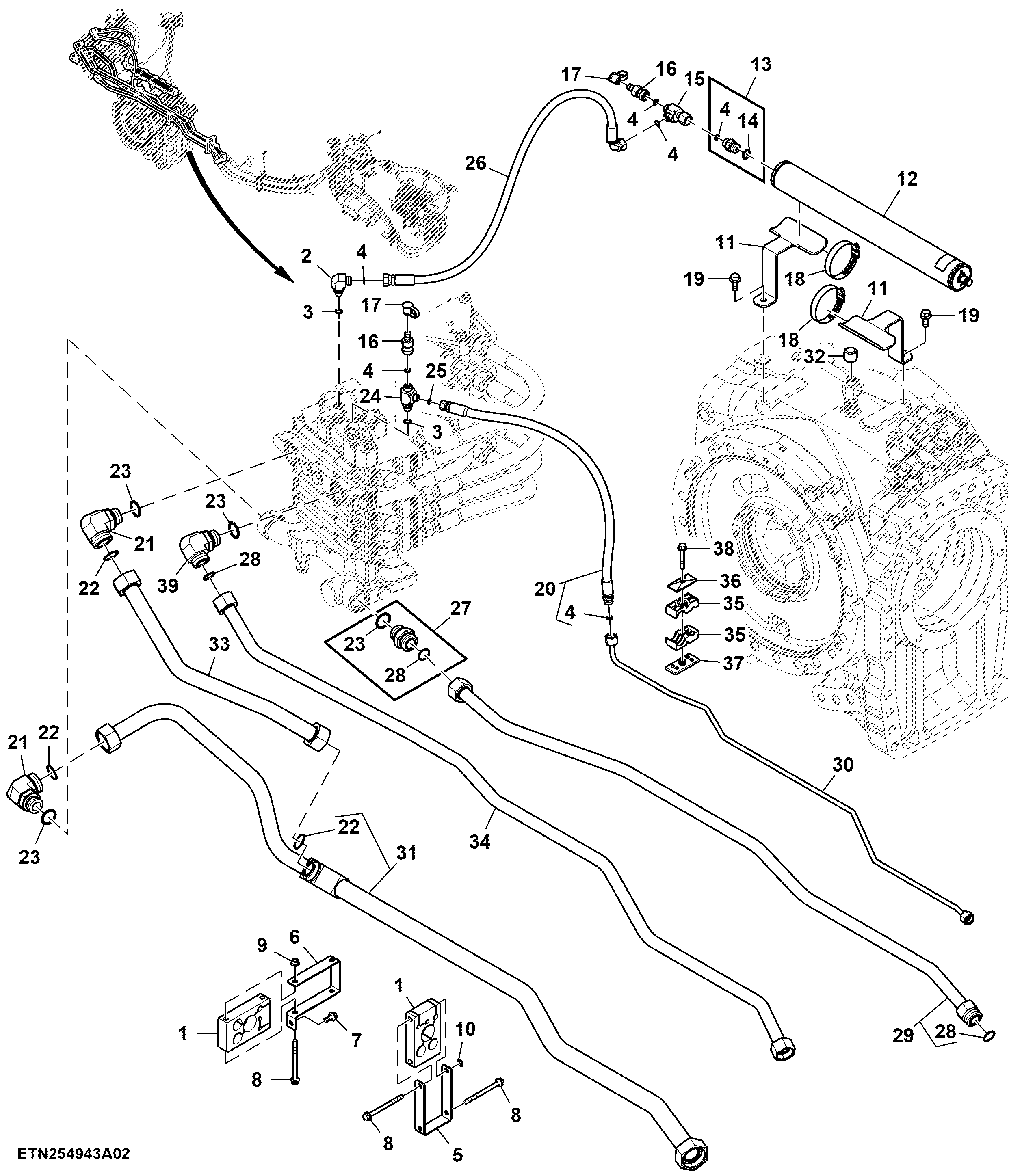

Oil Lines, SCV, W/ High Flow, W/ Long Drawbar Support, (For Scraper) (2/2)
