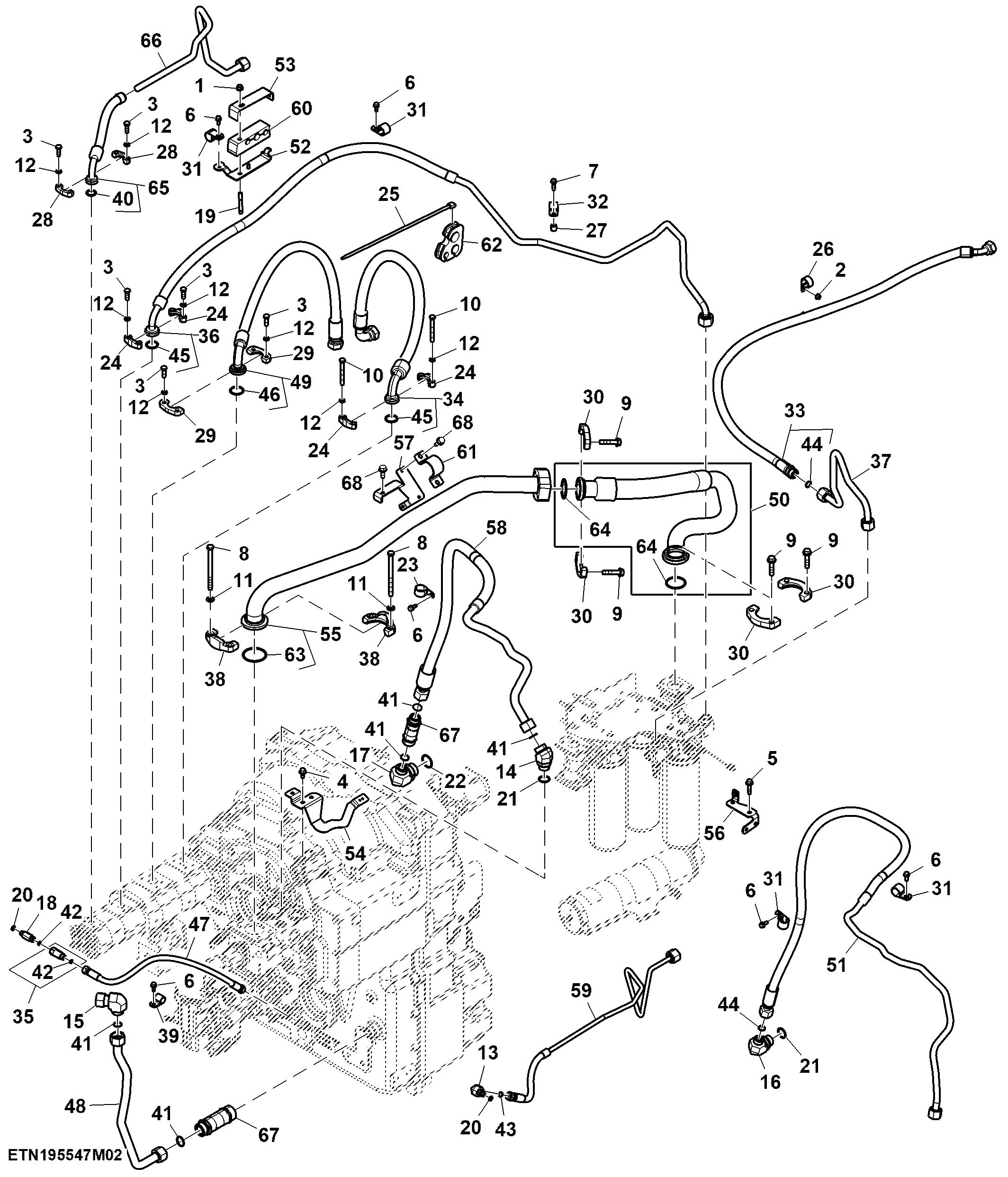

Oil Lines, Double Reduction Axle, W/ Rear PTO, Standard Flow Pump (2/2)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7296	1	Flange Nut	M10
2	14M7298	1	Flange Nut	M8
3	19M7662	12	Cap Screw	M10 X 30
4	19M7784	2	Screw	M10 X 20
5	19M7804	1	Screw	M10 X 40
6	19M7866	6	Screw	M8 X 20
7	19M7868	1	Screw	M8 X 30
8	19M7904	4	Cap Screw	M12 X 160
9	19M7791	8	Bolt	M12 X 40
10	19M8183	4	Cap Screw	M10 X 90
11	24M7047	4	Washer	13 X 24 X 2.500 mm
12	24M7106	16	Washer	10 X 18 X 2.500 mm
13	38H5023	1	Elbow Fitting	INCLUDES 51M7041
14	38H5206	1	Adapter Fitting	-
15	38H5207	1	Elbow Fitting	-
16	38H5264	1	Adapter Fitting	-
17	38H5401	1	Adapter Fitting	-
18	38H5503	1	Adapter Fitting	-
19	42M7129	1	Stud	-
20	51M7041	2	O-Ring	11.300 X 2.200 mm
21	51M7048	2	O-Ring	29.600 X 2.900 mm
22	51M7049	1	O-Ring	38.600 X 2.900 mm
23	AT121321	1	Hose Clamp	-
24	H61354	4	Flange Fitting	-
25	N189220	1	Tie Band	-
26	R109479	1	Clamp	-
27	R244801	1	Spacer	-
28	R29424	2	Flange Fitting	-
29	R29867	2	Flange Fitting	-
30	R37023	4	Flange Fitting	-
31	R46667	4	Clamp	-
32	R73291	1	Clamp	-
33	RE567487	1	Hydraulic Hose	Rear Axle Lube Supply
34	RE580134	1	Hydraulic Hose	Transmission Scavenge Pump Return
35	RE583681	1	Check Valve	-
36	TA21637	1	Oil Line	Pump Outlet Axle Supply
37	RE594813	1	Line	Rear Axle Lube
38	T195864	2	Flange Fitting	-
39	T24959	1	Clamp	-
40	T59014	1	O-Ring	-
41	T76938	5	O-Ring	-
42	T77613	2	O-Ring	-
43	T77857	1	O-Ring	-
44	T77858	2	O-Ring	-
45	T78313	2	O-Ring	-
46	T78393	1	O-Ring	-
47	TA25913	1	Hydraulic Hose	Pump Load Sense
48	TA20912	1	Oil Line	Transmission Cooler to Cooler Bypass
49	TA14136	1	Line	Charge Pump Supply
50	TA21892	1	Oil Line	Filter Return to Pump
51	TA17754	1	Line	Case Drain to Reservoir
52	TA17777	1	Bracket	-
53	TR121742	1	Bracket	-
54	TA17802	1	Bracket	-
55	TA21893	1	Oil Line	Charge Supply Line
56	TA18322	1	Bracket	-
57	TA18342	1	Bracket	-
58	TA20911	1	Hydraulic Hose	Cooler Bypass to Reservoir
59	TA18895	1	Oil Line	Low Pressure Manifold Return
60	TR116971	1	Block Clamp	-
61	TR118289	1	Bracket	-
62	TR118398	1	Block Clamp	-
63	U12331	1	O-Ring	-
64	U46457	2	O-Ring	-
65	TA19663	1	Hydraulic Hose	Front Axle Scavenge Pump Outlet
66	TA19664	1	Oil Line	Front Axle Scavenge Pump Outlet
67	TA20833	2	Check Valve	INCLUDES T76938
68	R557817	3	Screw	-

Oil Lines, Double Reduction Axle, W/ Rear PTO, Standard Flow Pump (2/2)
