Открытый узел

Line, Rear PTO, PST, Double Reduction

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R341446	1	Hydraulic Hose	Clutch Return
2	TA22598	1	Hydraulic Hose	Pump Inlet
3	N205415	1	Clamp	-
4	38H5092	1	Nut	13/16"
5	38H5009	1	Adapter Fitting	-
6	51M7041	3	O-Ring	11.300 X 2.200 mm
7	RE224072	2	Hose Clamp	-
8	R46414	1	Clamp	-
9	RE566793	1	Hydraulic Hose	Clutch Vent
10	RE566862	1	Hydraulic Hose	Drop Box Return
11	19M7800	1	Screw	M8 X 50
12	R305047	1	Block Clamp	-
13	RE567854	1	Oil Line	Drop Box Front Lube Supply Line, INCLUDES T77857
14	RE568603	1	Hydraulic Hose	Transmission to Clutch
15	RE568604	1	Hydraulic Hose	Clutch Pressure
16	R305041	1	Cover	-
17	19M7798	1	Screw	M8 X 40
18	14M7298	2	Flange Nut	M8
19	R184067	1	Clamp	-
20	R184062	1	Clamp	-
21	RE574965	1	Line	Rear Frame to PTO Drpbox
22	AR54815	1	Clamp	-
23	03M7186	1	Bolt	M8 X 30
24	38H5016	1	Elbow Fitting	-
25	R102944	1	Spacer	-
26	19M7865	1	Screw	M8 X 16
27	R553326	1	Stud	-
28	RE567836	1	Hydraulic Hose	Pump Return
29	RE567837	1	Hydraulic Hose	Drop Box Lube Supply, INCLUDES T77857
30	38H1005	1	Elbow Fitting	-
31	R26375	1	O-Ring	-
32	38H5002	1	Adapter Fitting	-
33	38H1160	1	Adapter Fitting	-
34	R26448	1	O-Ring	-
35	38H5003	1	Adapter Fitting	-
36	51M7043	1	O-Ring	15.300 X 2.200 mm
37	AH61472	1	Hose Fitting	-
38	U12547	1	O-Ring	-
39	TR121741	1	Adapter Fitting	-
40	T77858	1	O-Ring	-
41	51M7047	1	O-Ring	23.600 X 2.900 mm
42	T77857	5	O-Ring	-
43	T77613	3	O-Ring	-
44	AH77714	1	Clip	-

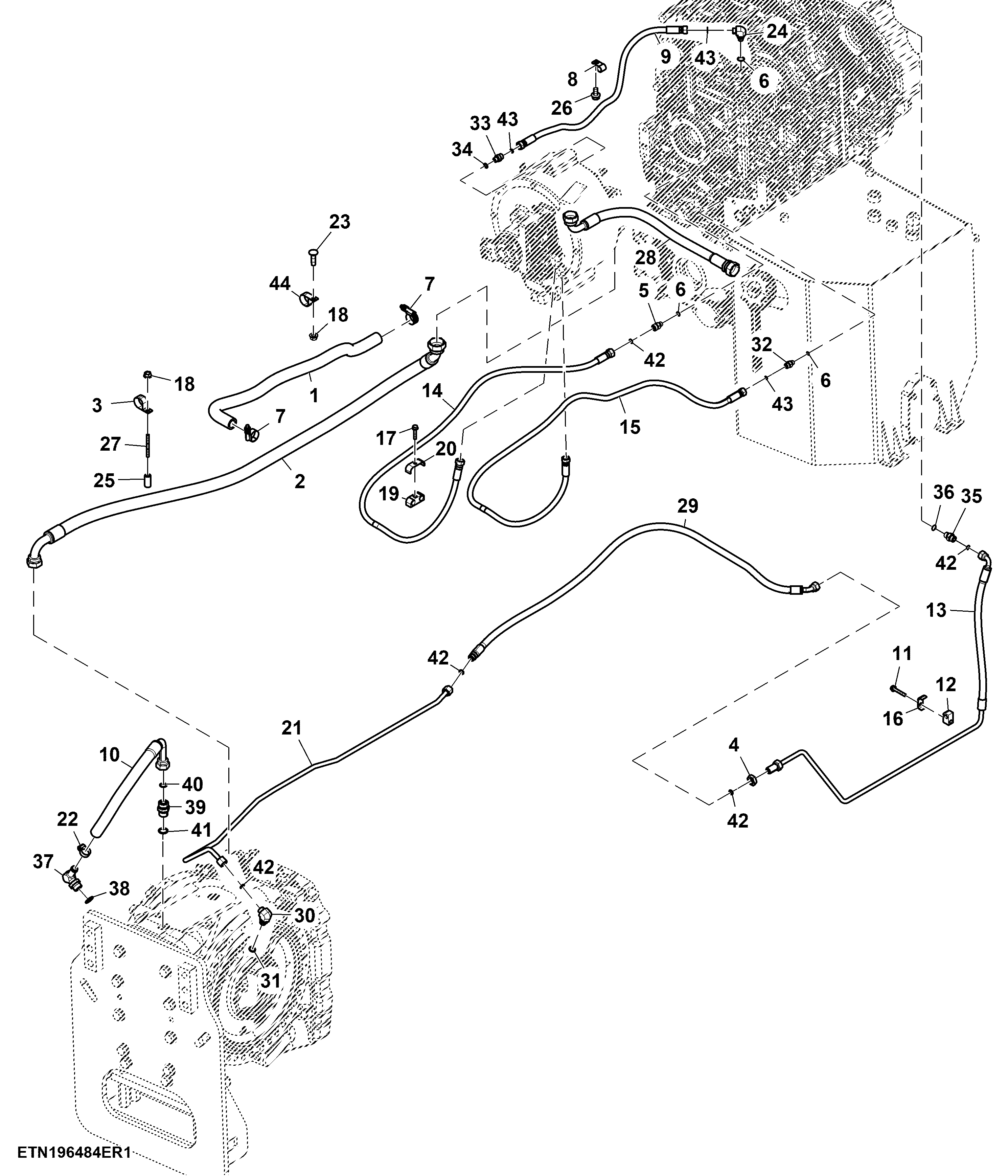

Line, Rear PTO, PST, Double Reduction

Нет текстового описания
