Light Kit, Trailering Vehicle Lights

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

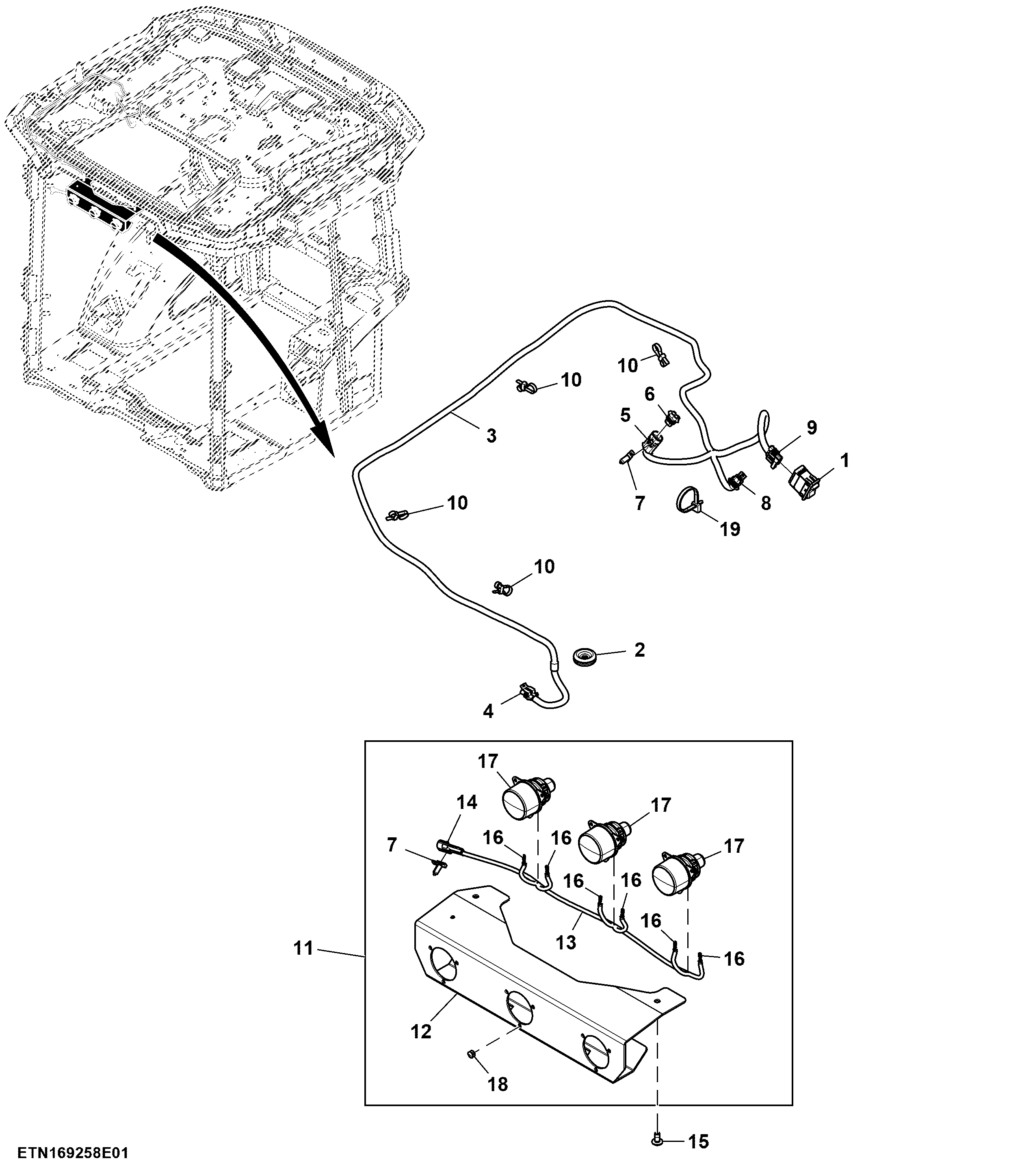

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE560198	1	Toggle/Rocker Switch	-
2	L100644	1	Grommet	-
3	RE595539	1	Wiring Harness	-
4	57M7254	1	Elec. Connector Housing	CIS Trailer Lights to Bracket Harness Interconnect, XX155
4	RWA11083	1	Repair Wire Assembly	Cavity A, B
4	57M9712	1	Elec. Connector Accessory	-
5	57M7256	1	Elec. Connector Housing	Power Mirror, XX174-3
5	57M9712	1	Elec. Connector Accessory	-
5	RWA11082	1	Repair Wire Assembly	Cavity A, B
6	57M7254	1	Elec. Connector Housing	Dust Cap
6	57M7259	2	Elec. Connector Seal	-
6	57M9712	1	Elec. Connector Accessory	-
7	57M8910	2	Clip	-
8	57M9712	1	Elec. Connector Accessory	-
8	57M7254	1	Elec. Connector Housing	Roof Harness Interconnect, XX174-2
8	RWA11083	1	Repair Wire Assembly	Cavity A, B
9	57M7255	1	Elec. Connector Housing	CIS Trailer Lights Switch, S128
9	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
9	57M7290	1	Elec. Connector Accessory	-
10	57M10421	5	Elec. Connector Accessory	-
11	RE594587	1	Light Kit	-
12	R569846	1	Bracket	-
13	RE560238	1	Wiring Harness	-
14	57M7256	1	Elec. Connector Housing	-
14	57M7289	1	Elec.Connect Locking Device	-
14	RWA11082	1	Repair Wire Assembly	Cavity A, B
15	R264173	2	Bolt	-
16	57M9714	6	Elec. Connector Terminal	-
17	AL213494	3	Lamp	-
18	L39134	9	Rivet	-
19	R44302	1	Tie Band	-

Light Kit, Trailering Vehicle Lights

Нет текстового описания
