Открытый узел

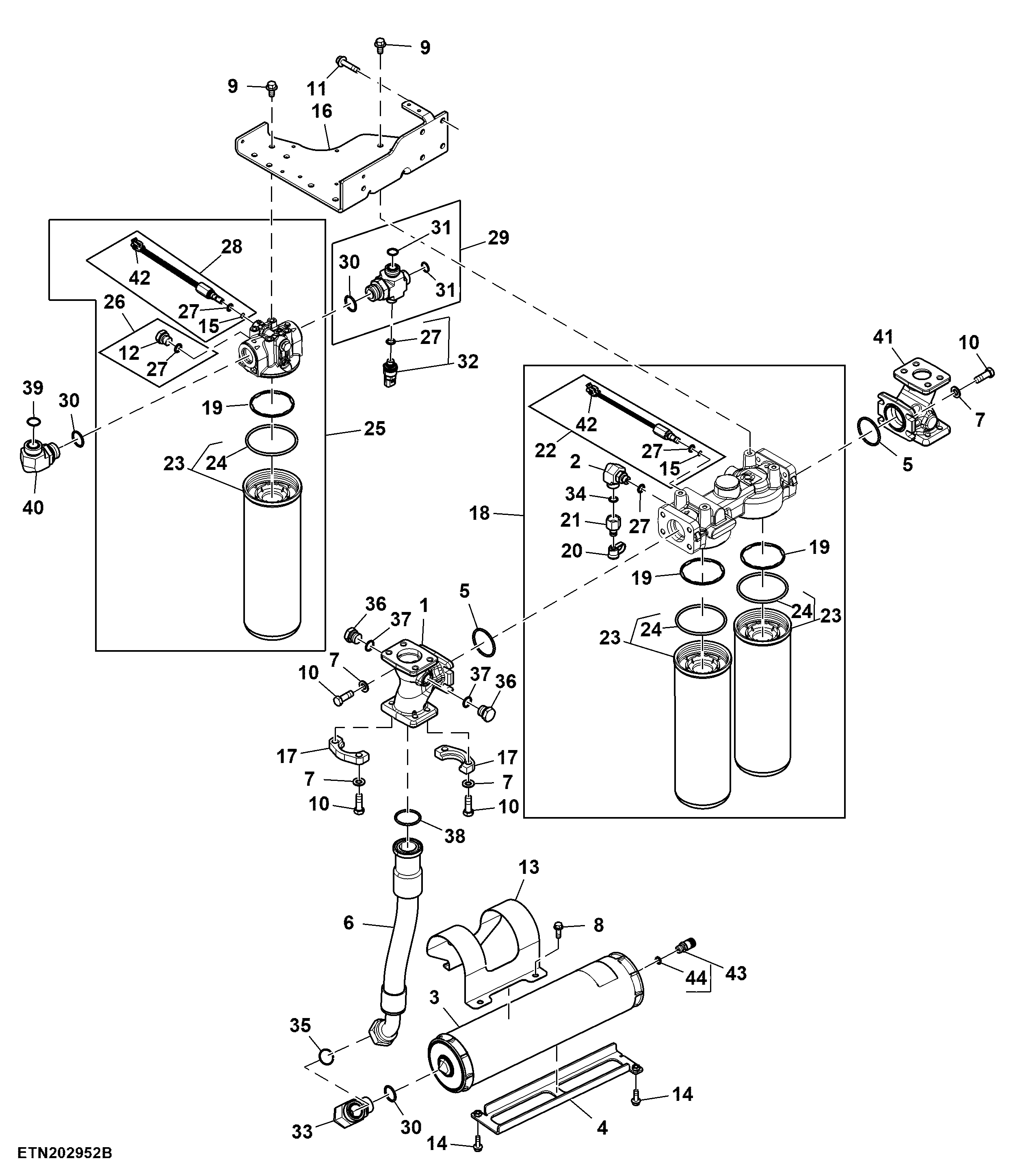

Hydraulic Filter, Double Reduction Axle, High Flow Pump

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R546363	1	Flange Fitting	-
2	38H5023	2	Elbow Fitting	INCLUDES 51M7041
3	TA12585	1	Hydraulic Accumulator	INCLUDES AT196760
4	RE576777	1	Support	-
5	51M7066	2	O-Ring	56.744 X 3.531 mm
6	RE569827	1	Hydraulic Hose	Scraper HF Charge Accumulator, INCLUDES 51M7065
7	24M7623	12	Washer	13 X 24 X 2.500 mm
8	19M7867	2	Screw	M8 X 25
9	19M7784	8	Screw	M10 X 20
10	19M7403	12	Cap Screw	M12 X 35
11	19M7805	4	Screw	M10 X 45
12	R107768	1	Drain Plug	-
13	R571911	1	Clamp	-
14	19M8327	2	Screw	M8 X 25
15	R10093	2	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
16	TA11224	1	Bracket	-
17	X51H-24	2	Flange Fitting	-
18	RE590268	1	Hydraulic Filter	-
19	R564922	3	Ring	-
20	R77175	2	Cover	-
21	RE43774	2	Diagnostic Coupling	-
22	RE573829	1	Pressure Switch	Filter Restriction
23	RE577612	3	Filter Element	-
24	R568323	3	O-Ring	-
25	RE590270	1	Filter Head	-
26	RE46684	1	Fitting Plug	-
27	51M7041	6	O-Ring	11.300 X 2.200 mm
28	RE587015	1	Sensor	Filter Restriction
29	RE594819	1	Fitting	-
30	51M7048	3	O-Ring	29.600 X 2.900 mm
31	T77858	2	O-Ring	-
32	RE584414	1	Pressure Sensor	Transmission Oil Pressure Sensor
33	38H5149	1	Elbow Fitting	-
34	T77857	2	O-Ring	-
35	T78612	1	O-Ring	-
36	64M1007	2	Drain Plug	-
37	51M7045	2	O-Ring	19.300 X 2.200 mm
38	51M7065	1	O-Ring	47.219 X 3.531 mm
39	T76938	1	O-Ring	-
40	38H5020	1	Elbow Fitting	-
41	R546362	1	Flange Fitting	-
42	57M7328	2	Elec. Connector Housing	-
42	57M7289	2	Elec.Connect Locking Device	-
43	AT196760	1	Valve Kit	-
44	T26209	1	Ring	-

Hydraulic Filter, Double Reduction Axle, High Flow Pump

Нет текстового описания
