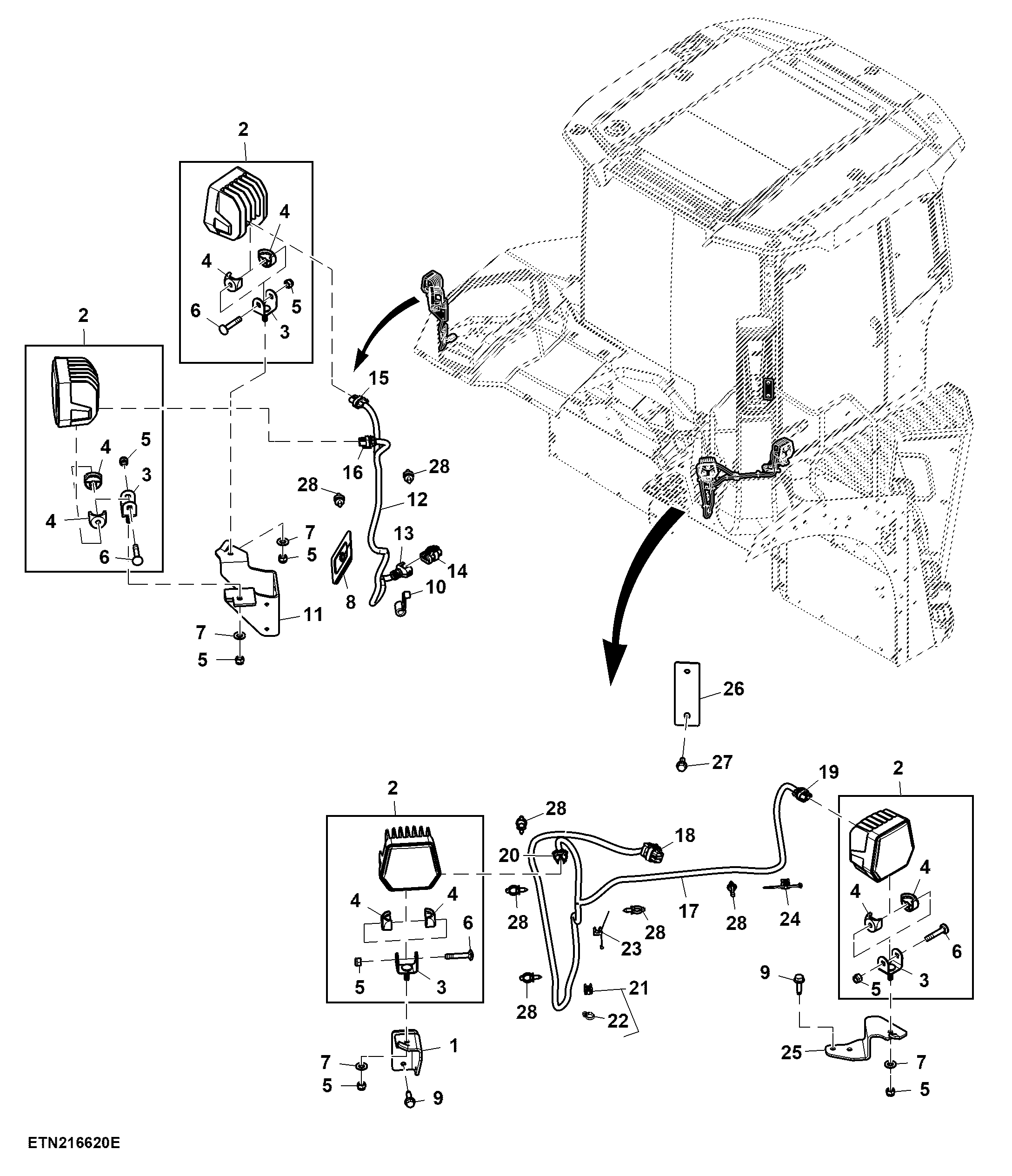

Front Midbody Flood Lights, 4 LED, T3/ FT4/ Stage 5 Engine

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TR109390	1	Bracket	-
2	RE593795	4	Floodlamp	-
3	R571006	4	Mounting Parts	-
4	R571007	8	Mounting Parts	-
5	14M7847	8	Lock Nut	M8
6	03M7369	4	Bolt	M8 X 45
7	24M7271	4	Washer	10.500 X 20 X 2 mm
8	TR117118	1	Grommet	-
9	R563788	4	Screw	-
10	TR110462	1	Clamp	-
11	TR119734	1	Bracket	-
12	TA19454	1	Wiring Harness	Right Midbody Work Light, INCLUDES (2) RE258807
13	57M15917	1	Elec. Connector Accessory	-
14	57M9780	1	Elec. Connector Housing	Worklights To ATD Interconnect, XX401-2
15	57M8839	1	Elec. Connector Housing	Light Work Beltline Front Outer Right, XE225
15	57M8129	1	Elec. Connector Terminal	-
16	57M8839	1	Elec. Connector Housing	Light Work Beltline Front Inner Right, XE128
16	57M8129	1	Elec. Connector Terminal	-
17	TA19455	1	Wiring Harness	Left A Post Light Extension, INCLUDES (7) RE258807, AH225366, AH225363, AH225364
18	57M9786	1	Elec. Connector Housing	Left Midbody Lights To Roof Interconnect, XX172-2
19	57M8839	1	Elec. Connector Housing	Light Work Beltline Front Outer Left, XE226
19	57M8129	1	Elec. Connector Terminal	-
20	57M8839	1	Elec. Connector Housing	Light Work Beltline Front Inner Left, XE129
20	57M8129	1	Elec. Connector Terminal	-
21	AH225364	1	Clip	-
22	R44302	1	Tie Band	-
23	AH225366	1	Clip	-
24	AH225363	1	Clip	-
25	TR119735	1	Bracket	-
26	R570507	1	Cover	-
27	19M8331	2	Screw	M8 X 20
28	RE258807	9	Tie Band	-

Front Midbody Flood Lights, 4 LED, T3/ FT4/ Stage 5 Engine
