Открытый узел

Wiring Harness, Selective Control Valve, 6 Rear SCV, W/ Hitch

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA20869	1	Chassis Wiring Harness	-
2	57M13605	1	Elec. Connector Housing	Mains Chassis Harness / Rear Chassis Harness Interconnect, XX301-2
2	RWA11126	1	Repair Wire Assembly	Cavity D4, E4, F4, C4, C7, C8, C9, D8, D9, D7, C5, C6, D5, D6, F9, F8, F7, E8, E9, E7, F6, F5, E5, C10, D1, C1, C2, C3, D2, D3, C11, C12, F10, D10, E10, E1, F1, F2, F3, E2, E3, E12, E11, D11, D12, F11, F12
2	RWA11128	1	Repair Wire Assembly	Cavity A1, A2, A3, G3, G2, G1
3	57M13948	1	Elec. Connector Accessory	-
4	57M8170	1	Elec. Connector Accessory	Implement Bus Breakaway Connector Power Break at Gudgeon, XX302-2
5	57M8924	1	Elec. Connector Housing	Differential Lock, XY666
5	57M8633	1	Elec. Connector Accessory	-
5	RWA11097	1	Repair Wire Assembly	Cavity B, A
6	57M13340	1	Elec. Connector Housing	Rear Chassis Harness / Rear Lights Harness Interconnect, XX321-1
6	RWA11170	1	Repair Wire Assembly	Cavity 1
6	RWA11042	1	Repair Wire Assembly	Cavity 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14
6	RWA11045	1	Repair Wire Assembly	Cavity 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25
7	57M13343	1	Elec. Connector Accessory	-
8	57M9821	1	Elec. Connector Housing	Rear Chassis Harness / Rockshaft & Draft Sensor Jumper Interconnect, XX707-2
8	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
9	57M15918	1	Elec. Connector Accessory	-
10	57M9940	1	Elec. Connector Accessory	-
11	57M9817	1	Elec. Connector Housing	-
12	57M9784	1	Elec. Connector Housing	Rear Chassis to Rear Facing SCV Light Kit Interconnect, XX704-1
12	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3
13	57M15917	1	Elec. Connector Accessory	-
14	57M9780	1	Elec. Connector Housing	-
15	RWA11137	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8
15	57M10299	1	Elec. Connector Housing	Trailer Lights, XX705-1
16	RE12363	1	Electrical Connector Assy	Implement Switch, XS549
16	RWA11147	1	Repair Wire Assembly	Cavity A, B
17	R78053	1	Electrical Connector Assy	Cap
18	57M9498	1	Elec. Connector Housing	SCV <service-part>1</service-part>, XA701
18	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
19	57M9498	1	Elec. Connector Housing	SCV <service-part>2</service-part>, XA702
19	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
20	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
20	57M9498	1	Elec. Connector Housing	SCV <service-part>3</service-part>, XA703
21	57M9498	1	Elec. Connector Housing	SCV <service-part>4</service-part>, XA704
21	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
22	57M9498	1	Elec. Connector Housing	SCV <service-part>5</service-part>, XA705
22	57M9500	1	Elec. Connector Accessory	-
22	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
23	57M9498	1	Elec. Connector Housing	SCV <service-part>6</service-part>, XA706
23	57M9500	1	Elec. Connector Accessory	-
23	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
24	57M9498	1	Elec. Connector Housing	Hitch Control Valve Unit, XA800
24	RWA11111	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
24	57M9500	1	Elec. Connector Accessory	-
25	57M11897	7	Elec. Connector Accessory	-
26	57M11354	3	Elec. Connector Housing	-
27	57M9786	1	Elec. Connector Housing	Rear Camera, XA991
27	RWA11027	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
28	57M14988	1	Elec. Connector Accessory	-
29	57M11336	1	Elec. Connector Accessory	-
30	57M9789	1	Elec. Connector Housing	Rear Chassis to 7 &amp; 8 SCV Jumper Interconnect, XX706-1
30	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
31	57M15920	1	Elec. Connector Accessory	-
32	57M9786	1	Elec. Connector Housing	Cap
33	57M16249	1	Elec. Connector Housing	Implement Connector, XA917-1
33	RWA11118	1	Repair Wire Assembly	Cavity 2, 4
34	57M8635	1	Elec. Connector Housing	Implement CAN, XA917-2
34	57M8016	1	Elec.Connect Locking Device	-
34	RWA11029	1	Repair Wire Assembly	Cavity 2, 4
35	RE577929	1	Wiring Harness	-
36	57M8872	1	Elec. Connector Terminal	Ground, XGND3B
37	RWA10614	1	Repair Wire Assembly	Cavity 1, 2
37	57M9726	1	Elec. Connector Housing	Fuel Level Sensor, B692
37	57M9837	1	Elec. Connector Accessory	-
38	57M9784	1	Elec. Connector Housing	Chassis Interface, X344B
38	57M9838	1	Elec. Connector Accessory	-
38	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3
39	57M9939	1	Elec. Connector Accessory	-
40	57M8872	1	Elec. Connector Terminal	Ground, XGND3A
41	57M12127	2	Clamp	-
42	57M12125	1	Clamp	-
43	57M10198	7	Elec. Connector Housing	-
44	H224073	8	Tie Band	-
45	RE258807	14	Tie Band	-
46	19M7302	2	Cap Screw	M6 X 8
47	AN209168	1	Swivel	-
48	H224072	1	Clamp	-
49	M84971	2	Nut	-
50	19M7866	5	Screw	M8 X 20
51	14M7273	1	Nut	M8
52	TR110276	1	Bracket	-
53	57M12741	1	Elec. Connector Accessory	-
54	57M12126	1	Clamp	-

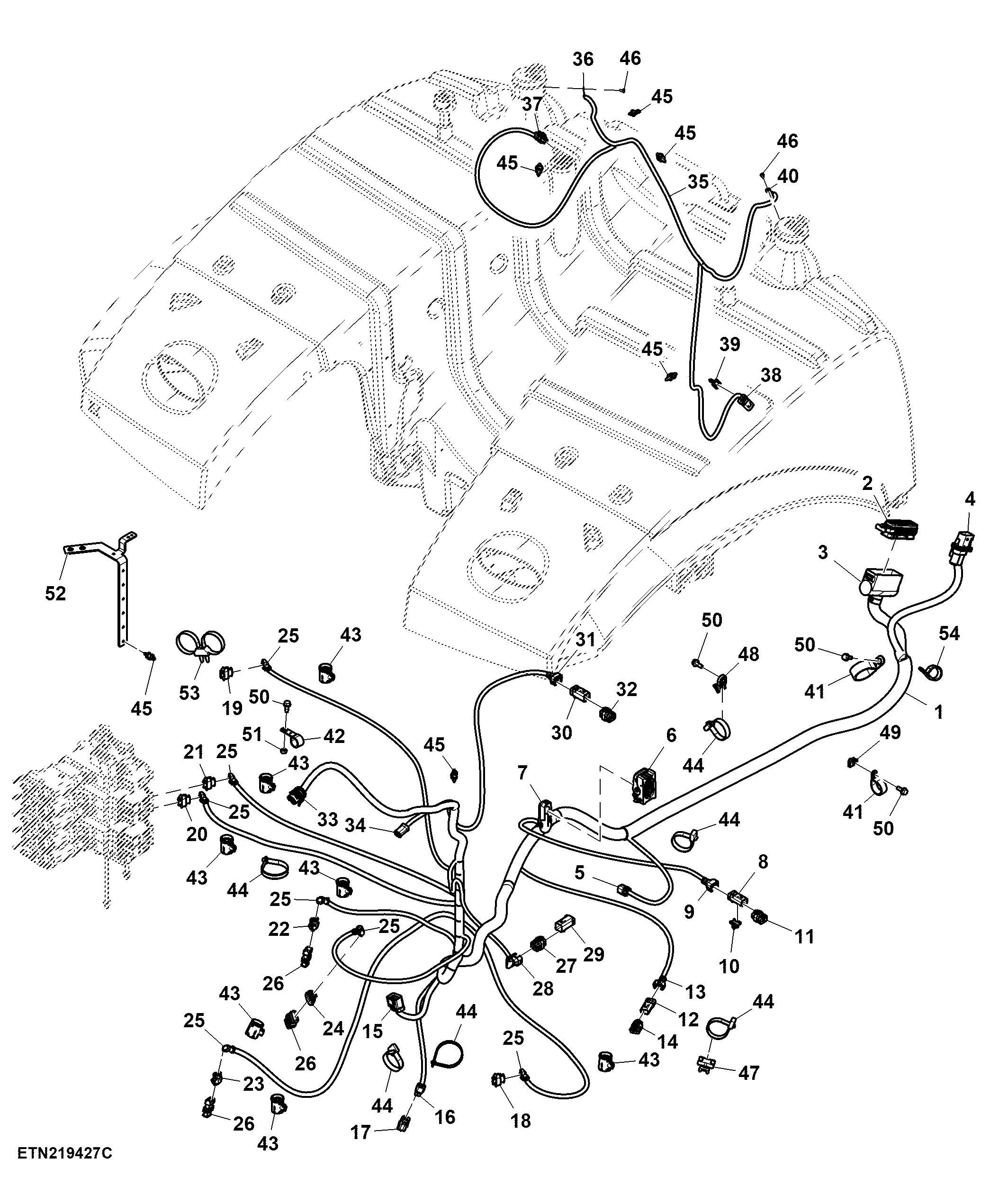

Wiring Harness, Selective Control Valve, 6 Rear SCV, W/ Hitch
