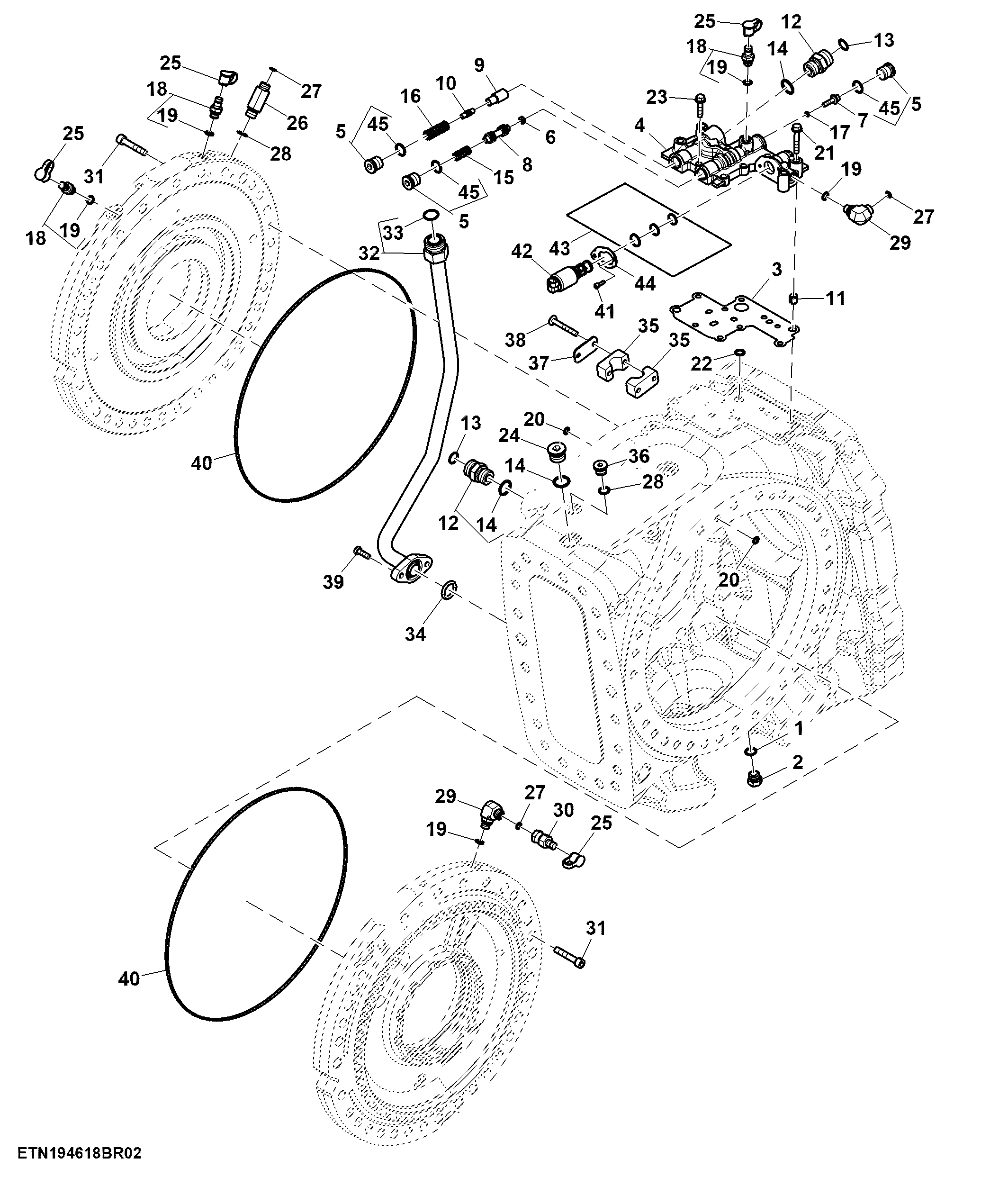

Rear Differential Case, Double Reduction (2/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26375	1	O-Ring	-
2	AH229778	1	Drain Plug	-
3	R331227	1	Gasket	-
4	R550444	1	Housing	-
5	RE162743	3	Fitting Plug	-
6	R539154	1	Sealing Washer	-
7	R539146	1	Spool Valve	-
8	R539147	1	Spool Valve	-
9	R218648	1	Spool Valve	-
10	R212714	1	Pin	-
11	34M7190	2	Spring Pin	14 X 14 mm
12	38H5005	2	Adapter Fitting	-
13	T77858	2	O-Ring	-
14	51M7047	3	O-Ring	23.600 X 2.900 mm
15	R273398	1	Compression Spring	-
16	R346607	1	Spring	-
17	51M7052	1	O-Ring	6.071 X 1.626 mm
18	RE190805	3	Diagnostic Coupling	-
19	51M7041	6	O-Ring	11.300 X 2.200 mm
20	51M7040	6	O-Ring	9.300 X 2.200 mm
21	19M8319	4	Screw	M8 X 50
22	51M7096	1	O-Ring	13.300 X 2.200 mm
23	19M7897	6	Screw	M8 X 35
24	64M1022	1	Drain Plug	-
25	R77175	5	Cover	-
26	38H5423	1	Adapter Fitting	-
27	T77613	4	O-Ring	-
28	51M7043	2	O-Ring	15.300 X 2.200 mm
29	38H5016	3	Elbow Fitting	INCLUDES (3) 51M7041
30	RE60701	2	Diagnostic Coupling	-
31	19M10343	4	Socket Head Screw	M10 X 55
32	RE581008	1	Oil Line	Scavenge Oil Tube
33	T76938	1	O-Ring	-
34	R105416	1	O-Ring	-
35	H142721	2	Clamp	-
36	64M1019	1	Drain Plug	-
37	T162005	1	Strap	-
38	RE580920	2	Screw	-
39	19M7163	2	Cap Screw	M8 X 25
40	R562852	2	Sealing Ring	-
41	19M9478	2	Screw	M5 X 16
42	RE211157	1	Solenoid Valve	Differential Lock, XY666
43	RE47392	1	O-Ring Kit	-
44	R211082	1	Clamp	-
45	51M7045	3	O-Ring	19.300 X 2.200 mm

Rear Differential Case, Double Reduction (2/2)

Нет текстового описания
