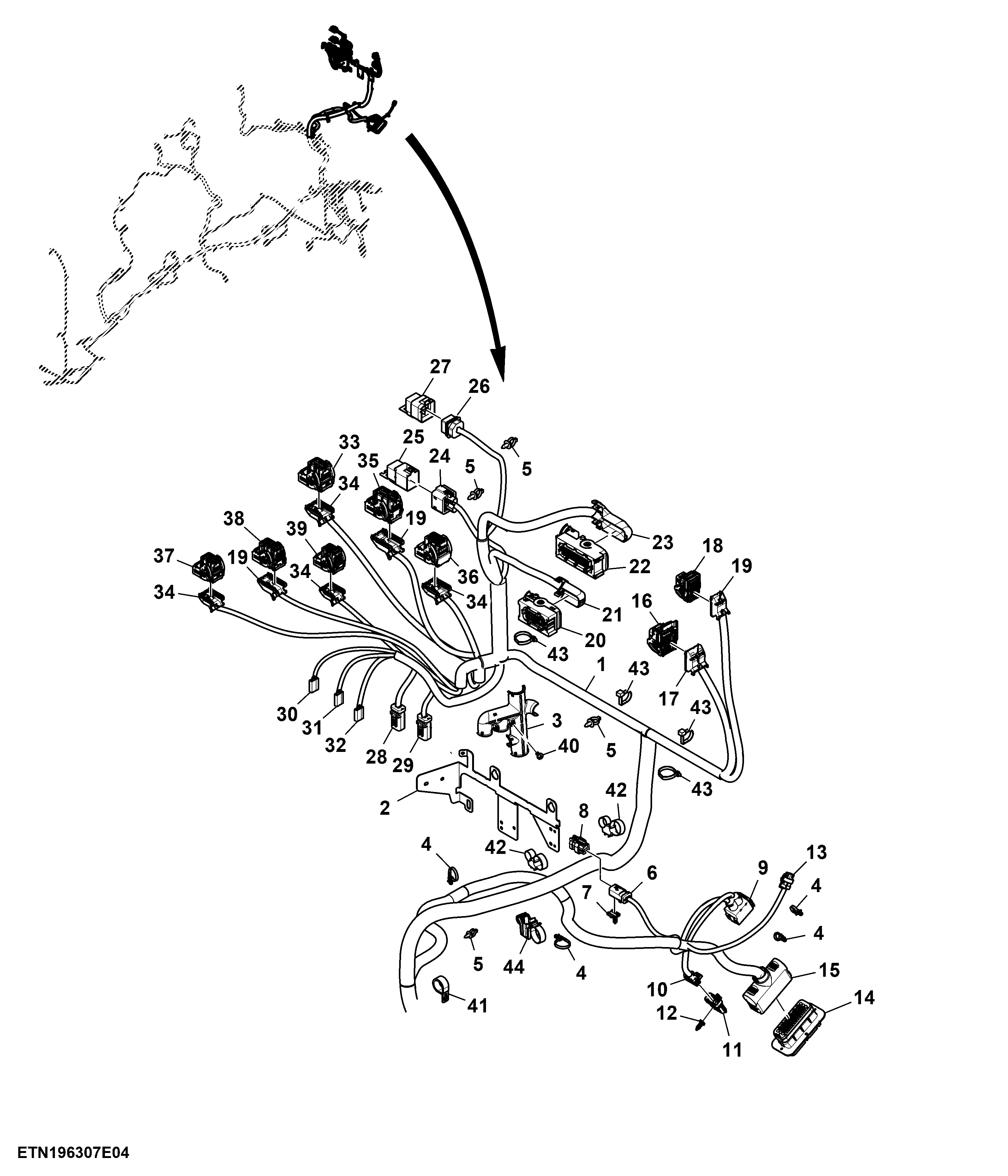

Wiring Harness, Chassis, W/ ACS™, 13.6 L FT4 / Stage 5 Engine (4/4)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TA20840	1	Chassis Wiring Harness	-
2	-	1	Part 2	ORDER TA20840
3	-	1	Part 3	ORDER TA20840
4	57M10233	4	Tie Band	-
5	RE258807	4	Tie Band	-
6	57M9789	1	Elec. Connector Housing	Chassis to PTO Interconnect, XX303-1
6	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6
7	57M9940	1	Elec. Connector Accessory	-
8	57M9786	1	Elec. Connector Housing	XX303-1
8	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6
9	57M8200	1	Elec. Connector Terminal	Cavity 1, 2
9	57M12313	1	Elec. Connector Seal	-
9	57M8169	1	Elec. Connector Housing	Rear Chassis, XX302-1
10	57M7262	1	Elec. Connector Housing	Chassis to Autoload Interconnect, XX116-1
10	CB01489384	1	Elec. Connector Accessory	-
10	RWA11083	1	Repair Wire Assembly	Cavity G, E, D, F, A, B, C, J, K, H
11	57M7265	1	Elec. Connector Housing	X116
11	57M12072	1	Elec. Connector Accessory	-
12	57M9555	1	Clip	-
13	57M9780	1	Elec. Connector Housing	Chassis to Fuel Level Sender, XX344-1
13	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
14	RWA11129	1	Repair Wire Assembly	Cavity A1, A2, A3, G1, G2, G3
14	RWA11127	1	Repair Wire Assembly	Cavity C1, C2, C3, C4, C5, C6, C7, C8, C9, C10, C11, C12, D1, D2, D3, D4, D5, D6, D7, D8, D9, D10, D11, D12, E1, E2, E3, E4, E5, E8, E10, E11, E12, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
14	57M14781	1	Elec. Connector Housing	Interconnect Rear Chassis, XX301-1
15	57M13948	1	Elec. Connector Accessory	-
16	57M10329	1	Elec. Connector Housing	Cab Controller J3, XA107-3
16	RWA11034	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5
16	RWA11032	1	Repair Wire Assembly	Cavity 6, 17, 18, 29, 30, 41, 42, 53
16	RWA11030	1	Repair Wire Assembly	Cavity 10, 11, 15, 36, 43
17	57M10401	1	Elec. Connector Accessory	-
18	57M10615	1	Elec. Connector Housing	Cab Controller J1, XA107-1
18	RWA11030	1	Repair Wire Assembly	Cavity A1, H3, H4, B1, G1, F4, E2, E4, E1
18	RWA11032	1	Repair Wire Assembly	Cavity L2, M2, M3, M4, M1
19	57M10613	3	Elec. Connector Housing	-
20	57M13340	1	Elec. Connector Housing	Chassis to Cab Interconnect 2, XX501-1
20	RWA11042	1	Repair Wire Assembly	Cavity 3, 4, 5, 6, 7, 8, 14
20	RWA11045	1	Repair Wire Assembly	Cavity 26, 15, 16, 17, 18, 19, 20, 21, 23, 24, 25
21	57M13343	1	Elec. Connector Accessory	-
22	57M8730	1	Elec. Connector Housing	Chassis to Cab Interconnect 1, XX500-1
22	RWA11042	1	Repair Wire Assembly	Cavity 14, 21, 22, 45, 46, 47, 48, 34, 35, 56, 49, 30, 12, 27, 26, 29, 28, 38, 39, 41, 8, 11, 2, 1, 7, 5, 4
22	RWA11045	1	Repair Wire Assembly	Cavity 60
23	57M8738	1	Elec. Connector Accessory	-
24	57M10213	1	Elec. Connector Cable Seal	Cavity 5
24	RWA11174	1	Repair Wire Assembly	Cavity 1, 2
24	57M8238	1	Elec. Connector Seal	Cavity 3
24	57M8233	1	Electrical Connector Assy	K1 Relay, XKE100
24	57M10210	1	Elec. Connector Terminal	Cavity 3, 5
25	AL156697	1	Relay	-
26	57M7555	1	Elec. Connector Housing	K1 Relay, XKE01
26	RWA11166	1	Repair Wire Assembly	Cavity 1, 4
26	RWA11093	1	Repair Wire Assembly	Cavity 2, 5
27	57M12655	1	Elec. Connector Accessory	-
28	57M9821	1	Elec. Connector Housing	Front Camera, XX141-2
28	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
29	57M9821	1	Elec. Connector Housing	Rear Camera, XX140-2
29	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
30	R77476	1	Electrical Connector Assy	Washer Pump Right, XM03
30	RWA11076	1	Repair Wire Assembly	Cavity B, A
31	R77476	1	Electrical Connector Assy	Washer Pump Rear, XM02
31	RWA11076	1	Repair Wire Assembly	Cavity B, A
32	R77476	1	Electrical Connector Assy	Washer Pump Front, XM01
32	RWA11076	1	Repair Wire Assembly	Cavity B, A
33	57M10609	1	Elec. Connector Housing	XMC/XCS J1 Connector, XA985-1
33	RWA11030	1	Repair Wire Assembly	Cavity A2, A4, B2, B4, C2, C4, E2, F2, F3
33	RWA11032	1	Repair Wire Assembly	Cavity G1, G4, H3, H4
34	57M10604	4	Elec. Connector Housing	-
35	RWA11030	1	Repair Wire Assembly	Cavity A1, H1, A2, C2, C3, F1, F4, A4, C4, K4, H3, J2, J1, H4, E1, E2, K2, J3, B1, G1
35	RWA11032	1	Repair Wire Assembly	Cavity L1, L4, L3, L2, M3, M2, M4, M1
35	57M10615	1	Elec. Connector Housing	XA985-2
36	57M10607	1	Elec. Connector Housing	XMC/XCS J3 Connector, XA985-3
36	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B4, C1, C3, C4, D1, D2, D3, E3, F1, F3, F4
36	RWA11032	1	Repair Wire Assembly	Cavity G1, G2, H1, H2
37	57M10611	1	Elec. Connector Housing	XMC/XCS J3 Connector, XA986-3
37	RWA11030	1	Repair Wire Assembly	Cavity A1, A4, B1, B4, C1, C3, C4, D2, D3, D4, E2, E3, F1, F3, F4
37	RWA11032	1	Repair Wire Assembly	Cavity G2, H1, H2
38	RWA11030	1	Repair Wire Assembly	Cavity A1, H1, A2, C2, C3, F1, D2, F4, A4, F2, K4, H3, J1, E1, G2, B4, E2, G4, J4, K2, J3, B1, D3, G1
38	RWA11032	1	Repair Wire Assembly	Cavity L1, L4, L3, L2, M3, M2, M4, M1
38	57M10614	1	Elec. Connector Housing	XMC/XCS J2 Connector, XA986-2
39	57M10605	1	Elec. Connector Housing	XMC/XCS J1 Connector, XA986-1
39	RWA11030	1	Repair Wire Assembly	Cavity A1, A2, B1, B2, C4, D2, D4, E1, E3, E4, F1, F3, F4
39	RWA11032	1	Repair Wire Assembly	Cavity G1, G4, H3, H4
40	21M7400	2	Screw	M6 X 10
41	57M13310	1	Clamp	-
42	T252445	2	Clamp	-
43	R44302	9	Tie Band	-
44	HXE53002	2	Clamp	-

Wiring Harness, Chassis, W/ ACS™, 13.6 L FT4 / Stage 5 Engine (4/4)
