Wiring Harness, Chassis, 13.6 L FT4/ Stage 5 Engine(3/3)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
1	57M9780	1	Elec. Connector Housing	Chassis to Transmission Interconnect, XX331-1
2	57M15803	1	Elec. Connector Accessory	-
3	57M9789	1	Elec. Connector Housing	Chassis to PTO Interconnect, XX303-1
3	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6
3	57M9786	1	Elec. Connector Housing	-
4	57M8169	1	Elec. Connector Housing	Rear Chassis, XX302-1
5	57M7262	1	Elec. Connector Housing	Chassis to Autoload Interconnect, XX116-1
5	CB01489384	1	Elec. Connector Accessory	-
5	RWA11083	1	Repair Wire Assembly	Cavity G, E, D, F, A, B, C, J, K, H
6	57M9555	1	Clip	-
7	57M9780	1	Elec. Connector Housing	Chassis to Fuel Level Sender, XX344-1
7	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3
8	57M14781	1	Elec. Connector Housing	Interconnect Rear Chassis, XX301-1
9	57M13948	1	Elec. Connector Accessory	-
10	57M10329	1	Elec. Connector Housing	Cab Controller J3, XA107-3
11	57M10615	1	Elec. Connector Housing	Cab Controller J1, XA107-1
12	57M13340	1	Elec. Connector Housing	Chassis to Cab Interconnect 2, XX501-1
13	57M13343	1	Elec. Connector Accessory	-
14	RWA11042	1	Repair Wire Assembly	Cavity 14, 47, 48, 34, 35, 56, 60, 30, 12, 43, 44, 27, 26, 29, 28, 38, 39, 41, 11, 2, 1, 7, 5, 4
14	57M11957	1	Elec. Connector Accessory	-
14	57M8730	1	Elec. Connector Housing	Chassis to Cab Interconnect 1, XX500-1
15	57M7555	1	Elec. Connector Housing	K1 Relay, XKE01
15	57M15722	1	Elec. Connector Accessory	-
15	RWA11166	1	Repair Wire Assembly	Cavity 1, 4
15	RWA11166	1	Repair Wire Assembly	Cavity 2, 5
16	57M12655	1	Elec. Connector Accessory	-
17	57M8233	1	Electrical Connector Assy	K1 Relay, XKE100
17	RWA11174	1	Repair Wire Assembly	Cavity 1, 2
18	AL156697	1	Relay	-
19	57M10611	1	Elec. Connector Housing	XMC/XCS J3 Connector, XA980-3
19	RWA11030	1	Repair Wire Assembly	Cavity C3, C4, D3
20	57M10604	2	Elec. Connector Housing	-
21	57M10614	1	Elec. Connector Housing	XMC/XCS J2 Connector, XA980-2
21	RWA11030	1	Repair Wire Assembly	Cavity A1, H1, A2, C2, C3, F1, F4, A4, C4, F2, H2, J1, E1, G2, G3, E2, G4, K1, J4, K2, J3, B1, D3, G1
21	RWA11032	1	Repair Wire Assembly	Cavity L1, L4, L3, L2, M3, M2, M4, M1
22	RWA11032	1	Repair Wire Assembly	Cavity G1, G4, H3, H4
22	RWA11030	1	Repair Wire Assembly	Cavity A2, A4, B2, B4, C4, E2, F2, F4
22	57M10605	1	Elec. Connector Housing	XMC/XCS J1 Connector, XA980-1
23	57M9821	1	Elec. Connector Housing	Rear Camera, XX140-2
23	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
24	57M9821	1	Elec. Connector Housing	Front Camera, XX141-2
24	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4
25	R77476	1	Electrical Connector Assy	Washer Pump Front, XM01
25	RWA11076	1	Repair Wire Assembly	Cavity B, A
26	R77476	1	Electrical Connector Assy	Washer Pump Rear, XM02
26	RWA11076	1	Repair Wire Assembly	Cavity B, A
27	RWA11076	1	Repair Wire Assembly	Cavity B, A
27	R77476	1	Electrical Connector Assy	Washer Pump Right, XM03
28	57M8901	1	Elec. Connector Terminal	Chassis Ground, XGND16
29	57M8919	1	Elec. Connector Housing	Road Wheel Angle Sensor, XB252
29	RWA11097	1	Repair Wire Assembly	Cavity B, C, D
30	57M11854	1	Elec. Connector Housing	AT/ACS_Conn, XX204-1
30	RWA11042	1	Repair Wire Assembly	Cavity 1, 2, 5, 7, 6, 9
31	57M10297	1	Elec. Connector Housing	Hydraulic Trailer Brake, XX790-1
31	RWA11137	1	Repair Wire Assembly	Cavity 9, 10
32	57M10298	1	Elec. Connector Housing	-
33	AH225366	2	Clip	-
34	HXE53002	1	Clamp	-
35	57M12093	1	Elec. Connector Accessory	-
36	R44302	1	Tie Band	-
37	57M13310	1	Clamp	-
38	57M13298	1	Clamp	-
39	TA16248	1	Chassis Wiring Harness	-
40	57M10613	2	Elec. Connector Housing	-
41	57M8738	1	Elec. Connector Accessory	-
42	57M9940	1	Elec. Connector Accessory	-
43	57M7265	1	Elec. Connector Housing	-
43	57M12072	1	Elec. Connector Accessory	-
44	57M11374	1	Elec. Connector Accessory	-
45	57M10362	1	Clamp	-
46	57M10401	1	Elec. Connector Accessory	-
47	-	1	Part 73	ORDER TA20845
48	-	1	Part 74	ORDER TA20845
49	21M7400	2	Screw	M6 X 10

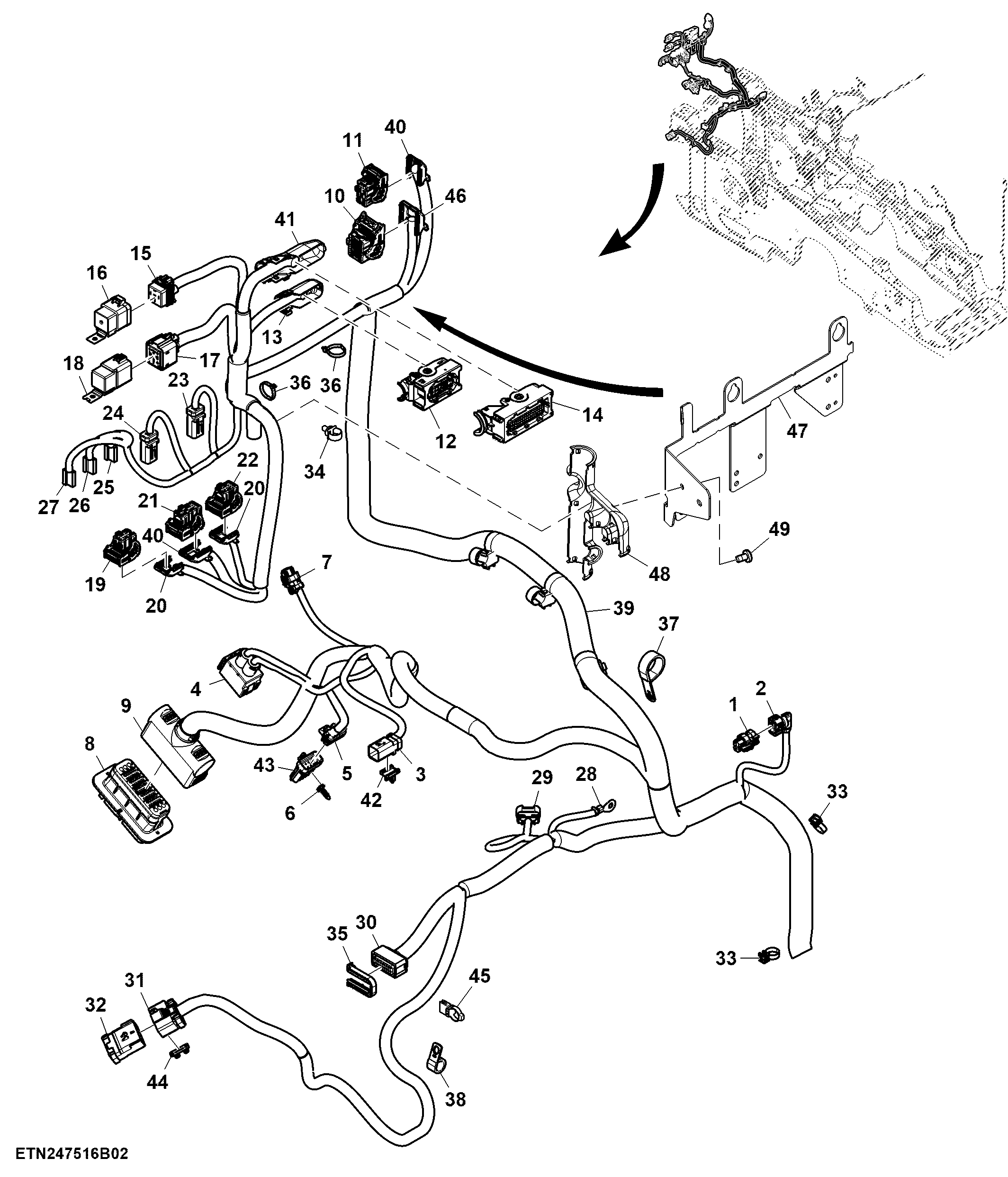

Wiring Harness, Chassis, 13.6 L FT4/ Stage 5 Engine(3/3)
