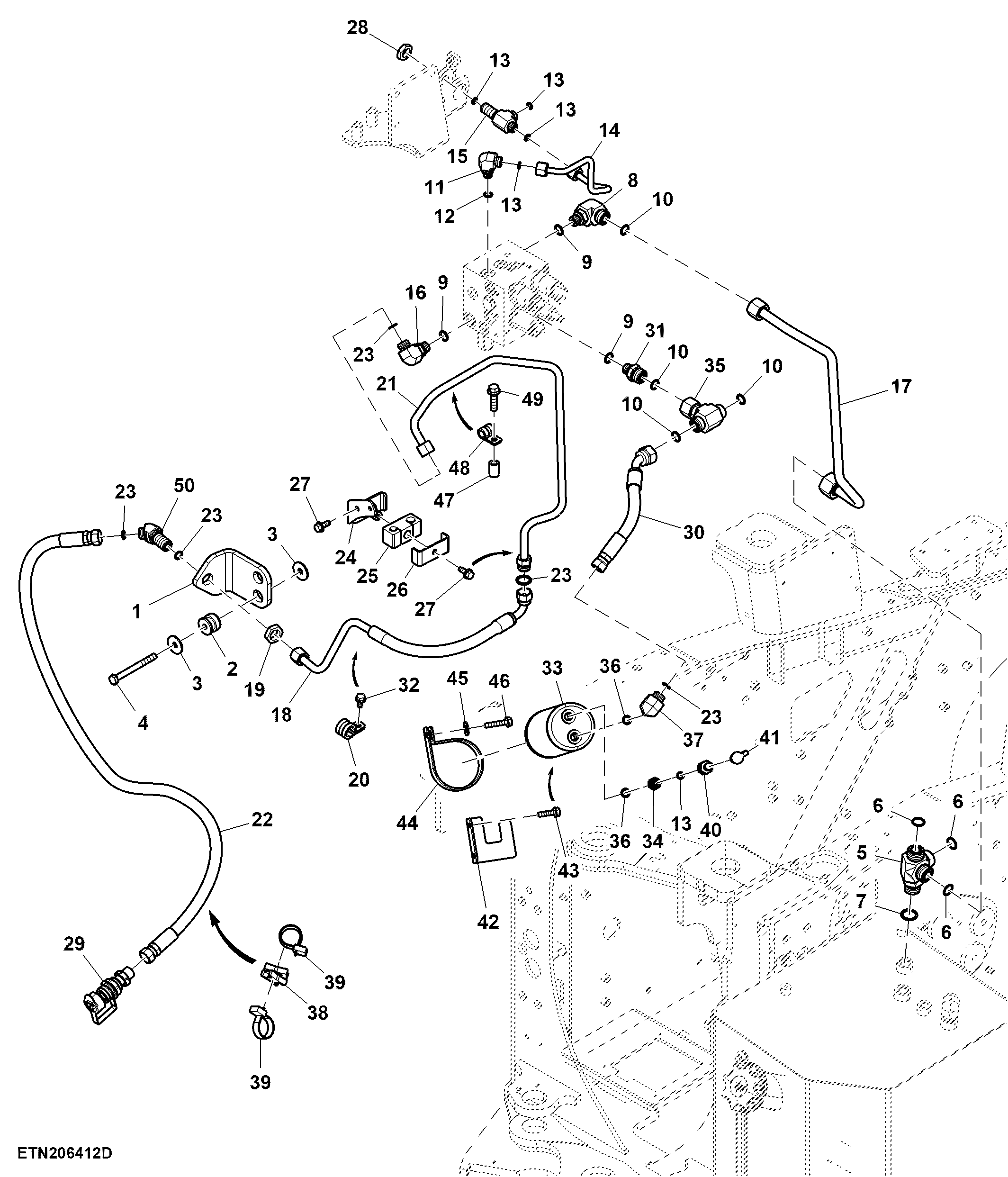

Hydraulic Trailer Brake Lines, W/ Manual Steering (1/2)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TR110337	1	Bracket	-
2	R565664	2	Isolator	-
3	24M7101	4	Washer	11 X 34 X 3 mm
4	19M8241	2	Cap Screw	M10 X 100
5	RE585466	1	Fitting	INCLUDES (3) T77858, 51M7047
6	T77858	3	O-Ring	-
7	51M7047	1	O-Ring	23.600 X 2.900 mm
8	38H5024	1	Elbow Fitting	-
9	51M7043	3	O-Ring	15.300 X 2.200 mm
10	T77932	4	O-Ring	-
11	38H5016	1	Elbow Fitting	INCLUDES 51M7041
12	51M7041	1	O-Ring	11.300 X 2.200 mm
13	T77613	5	O-Ring	-
14	RE587606	1	Oil Line	Rear Brake Signal Line
15	38H5186	1	Tee Fitting	-
16	38H5017	1	Elbow Fitting	-
17	RE588467	1	Oil Line	Trailer Brake Tank Line
18	TA11853	1	Oil Line	Trailer Brake Signal
19	38H5092	1	Nut	13/16"
20	R566080	1	Clamp	-
21	TA17788	1	Oil Line	Signal Hydraulic Trailer Brake Valve To Connection, INCLUDES T77857
22	TA21743	1	Oil Line	Trailer Brake Signal To Coupler
23	T77857	5	O-Ring	-
24	TA14125	1	Bracket	-
25	TR111602	1	Clamp	-
26	TR111657	1	Plate	-
27	19M7866	3	Screw	M8 X 20
28	38H5091	1	Nut	11/16"
29	RE580317	1	Hyd. Quick-Connect Coupler	-
30	RE588702	1	Hydraulic Hose	Attenuator Hose
31	R563896	1	Adapter Fitting	-
32	19M7865	1	Screw	M8 X 16
33	AR75693	1	Attenuator	-
34	38H1160	1	Adapter Fitting	-
35	38H5216	1	Tee Fitting	-
36	R26448	2	O-Ring	-
37	38H1314	1	Elbow Fitting	-
38	AN209168	1	Swivel	-
39	H224073	2	Tie Band	-
40	RE60701	1	Diagnostic Coupling	-
41	R77175	1	Cover	-
42	R564374	1	Bracket	-
43	19M7868	2	Screw	M8 X 30
44	R35794	3	Clamp	-
45	24M7047	3	Washer	13 X 24 X 2.500 mm
46	19M7798	3	Screw	M8 X 40
47	28H3389	1	Spacer	0.423" X 0.675" X 1"
48	T269640	1	Clamp	-
49	19M7804	1	Screw	M10 X 40
50	38H5396	1	Adapter Fitting	-

Hydraulic Trailer Brake Lines, W/ Manual Steering (1/2)
