Chassis Wiring Harness, Driving Lights Extension (For EU and EAEU)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M9357	2	Screw	M8 X 16
2	R551099	4	Grommet	-
3	R258352	2	Grommet	-
4	14M7396	2	Lock Nut	M8
5	19M7868	2	Screw	M8 X 30
6	TR121651	1	Bracket	-
7	RE577295	1	Wiring Harness	Fender Lights, INCLUDES (3) AH225364, 57M9939
8	57M9796	1	Elec. Connector Housing	Rear Lights Wheel Harness, X601B
8	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 8
9	57M15921	1	Elec. Connector Accessory	-
10	57M9939	2	Elec. Connector Accessory	-
11	AH225364	8	Clip	-
12	57M8839	1	Elec. Connector Housing	Right Rear Fender Flood Light, E109
12	RWA10688	1	Repair Wire Assembly	Cavity A, B
12	57M8129	1	Elec. Connector Terminal	-
13	57M10473	1	Elec. Connector Housing	Right Fender Turn Signal, E104
13	RWA11179	1	Repair Wire Assembly	Cavity 1, 3
14	57M7687	1	Elec. Connector Housing	Right Tail Brake Light, E114
14	57M7290	1	Elec. Connector Accessory	-
14	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
15	57M8839	1	Elec. Connector Housing	Right Rear Fender Outer Flood Light, E108
15	RWA10688	1	Repair Wire Assembly	Cavity A, B
15	57M8129	1	Elec. Connector Terminal	-
16	RE305396	1	Wiring Harness	-
17	57M8780	1	Elec. Connector Housing	Trailer Connector, X160/X162
18	R125964	1	Bracket	-
19	R26941	1	Grommet	-
20	37M7230	3	Screw	-
21	57M10300	1	Elec. Connector Housing	Chassis Harness
21	RWA11136	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7, 8
22	57M8815	1	Elec. Connector Housing	Flood Implement, X112
22	RWA11076	1	Repair Wire Assembly	Cavity 1
23	RE577294	1	Wiring Harness	INCLUDES (5) AH225364, 57M9939
24	57M9804	1	Elec. Connector Housing	Rear Lights Wheel Harness, X600B
24	RWA11025	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 7, 8, 9, 10, 11, 12
25	57M9844	1	Elec. Connector Accessory	-
26	RWA11089	1	Repair Wire Assembly	Cavity A, B
26	57M8129	1	Elec. Connector Terminal	-
26	57M8839	1	Elec. Connector Housing	Left Rear Fender Flood Light, E110
27	57M10473	1	Elec. Connector Housing	Left Fender Turn Signal, E103
27	RWA11179	1	Repair Wire Assembly	Cavity 1, 3
28	57M7687	1	Elec. Connector Housing	Left Tail Brake Light, E113
28	57M7290	1	Elec. Connector Accessory	-
28	RWA11083	1	Repair Wire Assembly	Cavity A, B, C
29	57M8839	1	Elec. Connector Housing	Left Rear Fender Outer Flood Light, E107
29	57M8129	1	Elec. Connector Terminal	-
29	RWA11089	1	Repair Wire Assembly	Cavity A, B
30	57M7291	1	Electrical Connector Assy	-
30	RWA11083	1	Repair Wire Assembly	Cavity A, B, C, D, E, F
30	57M7260	1	Elec. Connector Housing	External Raise/Lower Switch, S312
31	57M7263	1	Elec. Connector Housing	-
32	TA20868	1	Wiring Harness	INCLUDES (10) RE258807, 57M10362, R44302
33	57M9792	1	Elec. Connector Housing	Rear Lights Harness/ Rear Fender Lights Harness, XX702-1
34	RE258807	10	Tie Band	-
35	57M13341	1	Elec. Connector Housing	Rear Chassis Harness/ Rear Lights Harness Interconnect, XX321-2
36	57M13343	1	Elec. Connector Accessory	-
37	57M10362	1	Clamp	-
38	57M8924	1	Elec. Connector Housing	Secondary Brake Off Solenoid, XY703
39	57M11380	1	Elec. Connector Accessory	-
40	57M10517	1	Elec. Connector Housing	Secondary Brake Valve, XY702
40	57M8022	1	Elec.Connect Locking Device	-
41	57M9786	1	Elec. Connector Housing	Rear Lights Harness/ Rear Light Bar Harness Interconnect, XX711-1
42	57M11336	1	Elec. Connector Accessory	-
43	57M15934	1	Elec. Connector Accessory	-
44	57M9780	1	Elec. Connector Housing	Secondary Brake Pressure, XB260
45	57M15917	1	Elec. Connector Accessory	-
46	57M7254	1	Elec. Connector Housing	Backup Alarm, XX014-1
46	57M9712	1	Elec. Connector Accessory	-
47	57M11253	1	Elec. Connector Housing	-
47	57M9712	1	Elec. Connector Accessory	-
48	57M9800	1	Elec. Connector Housing	Rear Lights Harness/ Left Fender Lights Harness, XX701-1
49	57M13344	1	Elec. Connector Accessory	-
50	R44302	9	Tie Band	-
51	57M15921	1	Elec. Connector Accessory	-
52	57M14431	1	Elec. Connector Accessory	-

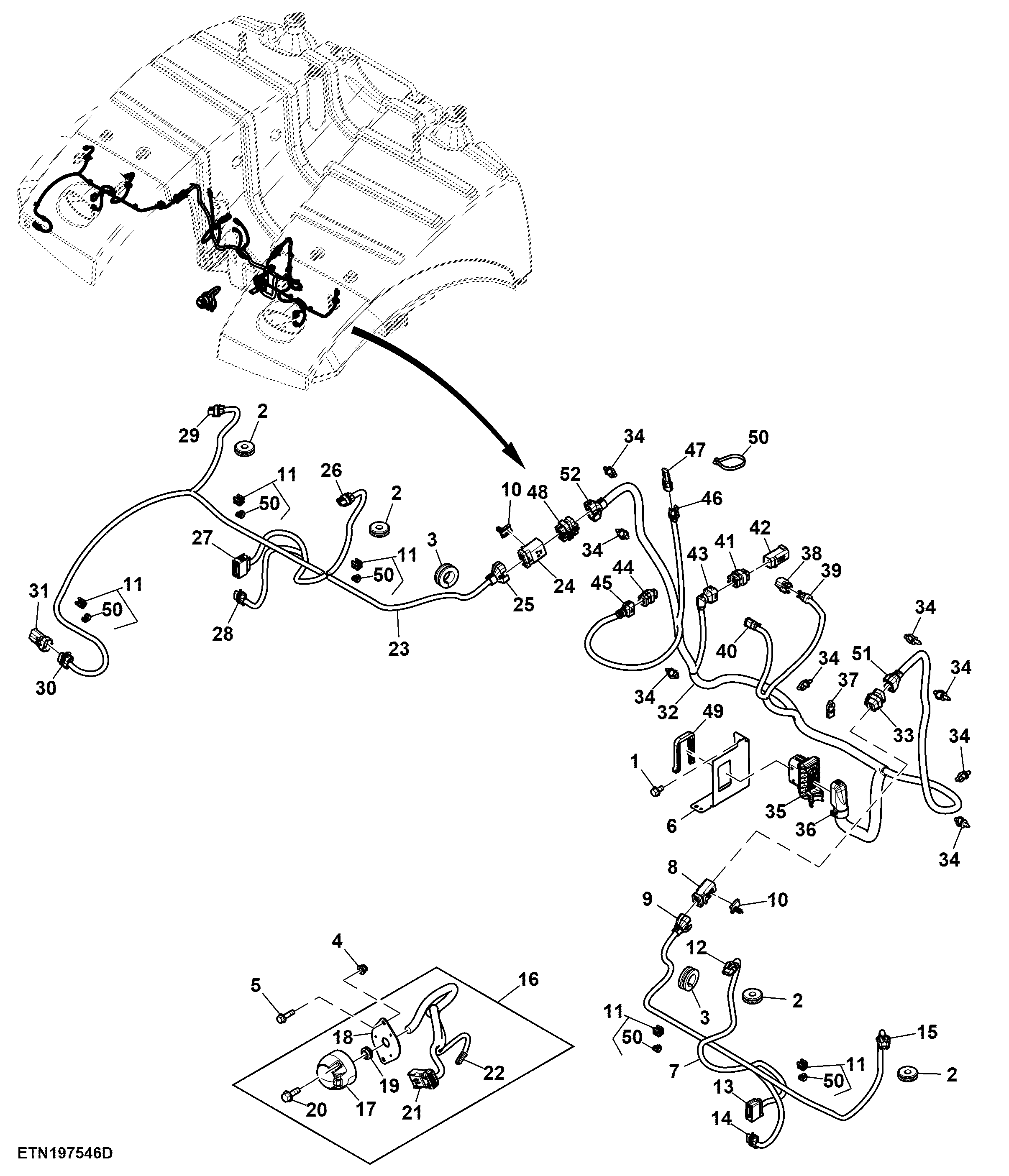

Chassis Wiring Harness, Driving Lights Extension (For EU and EAEU)
