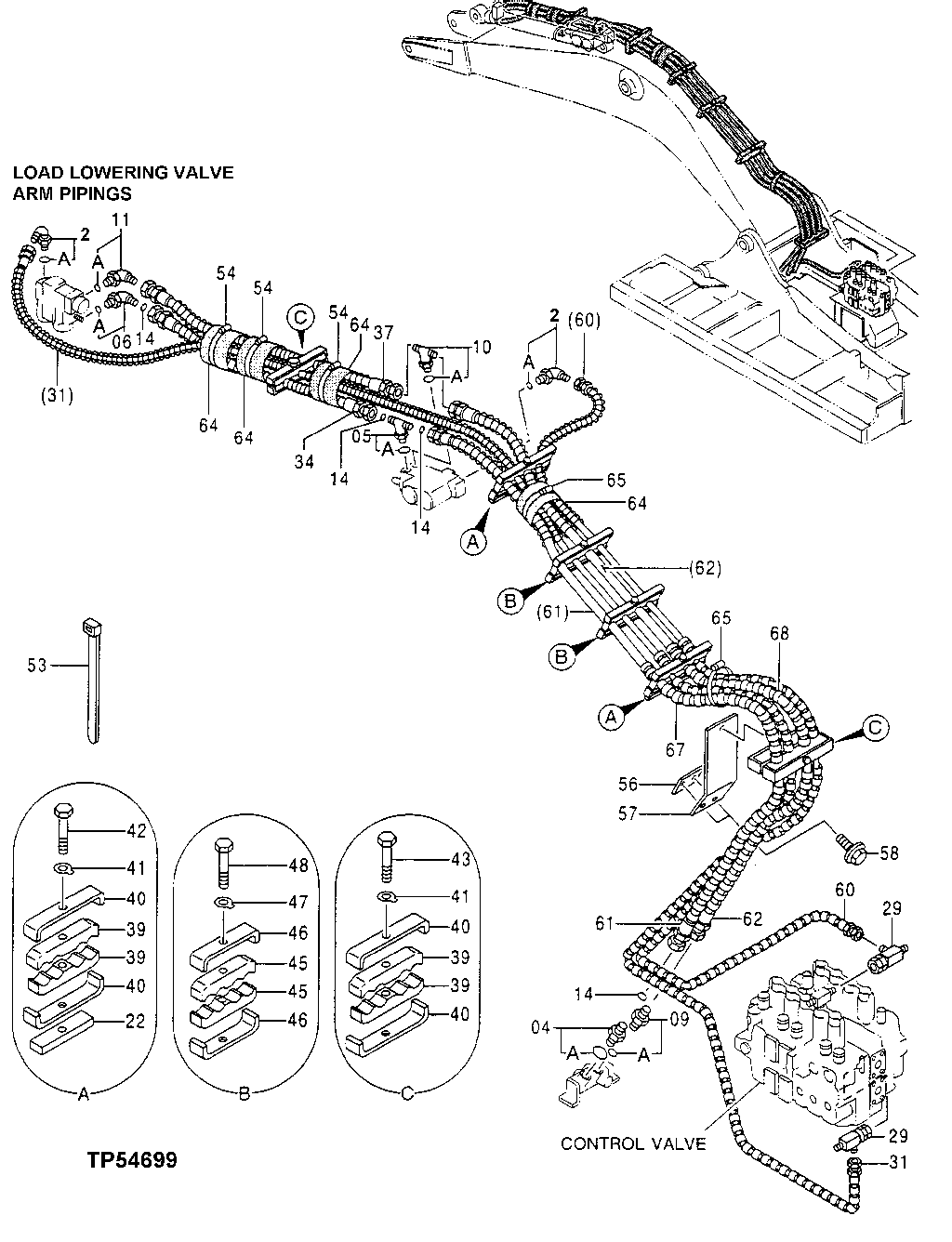

LOAD LOWERING VALVE ARM CYLINDER KIT

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SUB FOR AT171168)(ARM CYLINDER LOAD LOWERING)
2	A852333	2	Elbow Fitting	(SUB FOR TH101047 ) (SUB FOR 4154671)
4	AT318016	1	Adapter Fitting	(SUB FOR 4189537, TH110496)
5	4227004	1	Tee Fitting	(SUB FOR AT175246)
6	4157562	1	Elbow Fitting	(SUB FOR TH109540)
9	X8-10F5OX	1	Adapter Fitting	(SUB FOR TH101006)
10	4251988	1	Tee Fitting	(SUB FOR AT175247)
11	4219345	1	Elbow Fitting	(SUB FOR AT130819)
14	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
22	-	2	Part 17	(AT175248 NOT AVAILABLE FOR SERVICE)
29	4246672	2	Tee Fitting	(SUB FOR AT200991)
31	4356490	1	Hydraulic Hose	(SUB FOR AT175249)
34	4356518	1	Hydraulic Hose	(SUB FOR AT175250)
37	4356520	1	Hydraulic Hose	(SUB FOR AT175251)
39	4335756	8	Hose Clamp	(SUB FOR AT175252)
40	4335755	8	Clamp	(SUB FOR AT175253)
41	A590412	4	Washer	(SUB FOR TH101846)
42	19M7753	2	Cap Screw	M12 X 70
43	19M7364	2	Cap Screw	M12 X 80
45	4321237	4	Hose Clamp	(SUB FOR AT175254)
46	4287587	4	Clamp	(SUB FOR AT175255)
47	A590410	2	Washer	(SUB FOR AT175256)
48	19M8081	2	Cap Screw	M10 X 80
53	H77698	7	Tie Band	-
54	TY22486	3	Hose Clamp	(SUB FOR AT175257 OR 4351924)
56	4238980	1	Strap	(SUB FOR AT175258)
57	4356570	1	Bracket	(SUB FOR AT175263)
58	12H301	2	Lock Washer	1/2"
58	19M7403	2	Cap Screw	M12 X 35
60	4357900	1	Hydraulic Hose	(SUB FOR AT175264)
61	4357950	1	Hydraulic Hose	(SUB FOR AT175265)
62	4357951	1	Hydraulic Hose	(SUB FOR AT175266)
64	4155962	4	Isolator	400 mm (15.748"), (SUB FOR AT131714)
65	TY22485	2	Hose Clamp	(SUB FOR AT175267 OR 4351923)
67	4358014	1	Structural Tube	(SUB FOR AT175268)
68	4358013	1	Structural Tube	(SUB FOR AT175269)
2A	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32")
4A	TH101926	1	O-Ring	28.700 X 3.500 mm (1.130" X 0.138")
5A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
6A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
9A	4506418	1	O-Ring	17.800 X 2.400 mm (0.701" X 3/32"), (SUB FOR U46489)
10A	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32")
11A	CH11570	1	O-Ring	13.800 X 2.400 mm (0.543" X 3/32")

LOAD LOWERING VALVE ARM CYLINDER KIT
