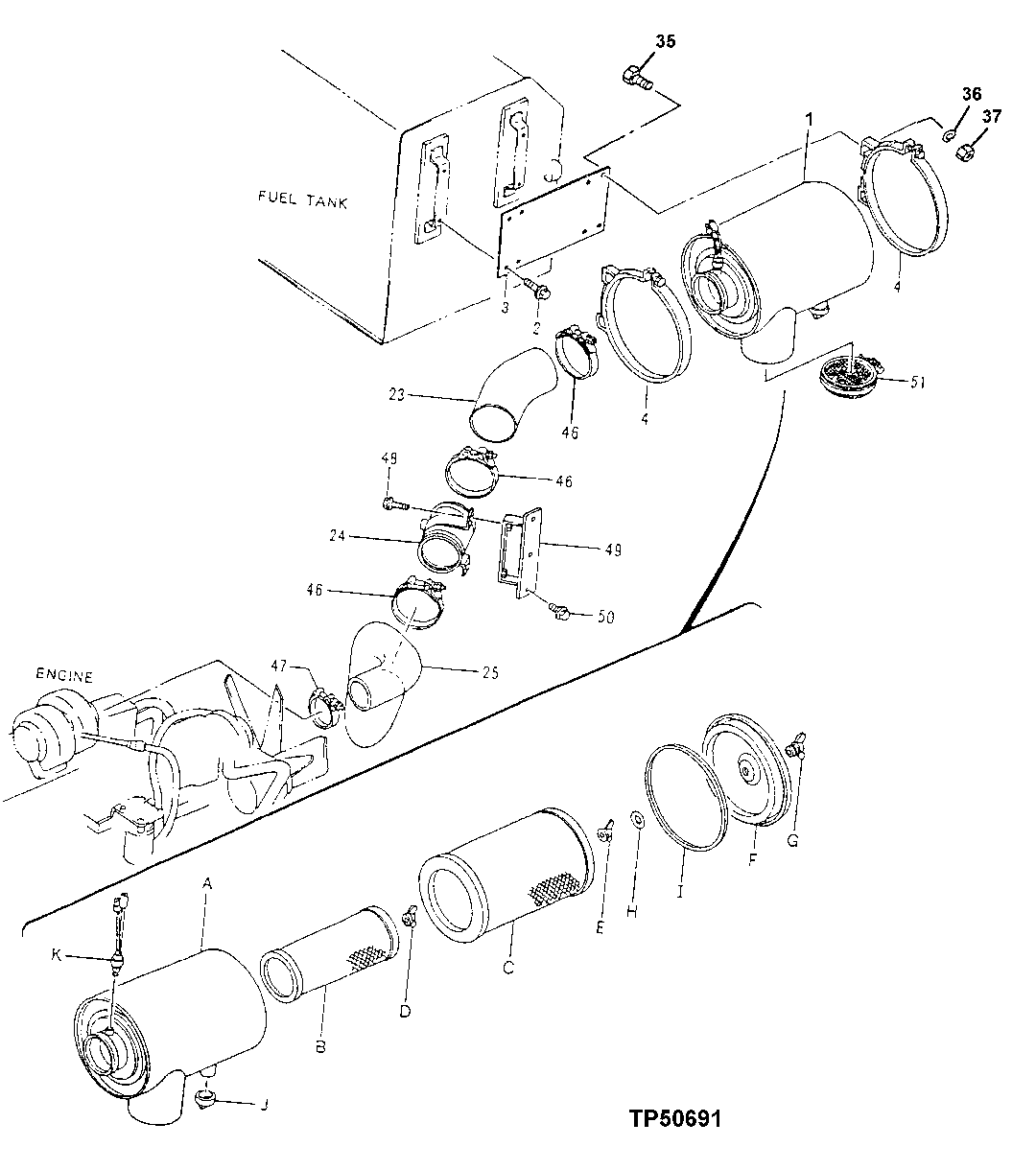

AIR CLEANER (SN 007001- ) (007001 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4220786	1	Air Cleaner	(SUB FOR AT179377)
2	19M7402	4	Cap Screw	M10 X 25
2	12M7066	8	Lock Washer	10 mm
2	19M7402	8	Cap Screw	M10 X 25
3	4386878	1	Plate	(SUB FOR AT178199 ) (SUB FOR AT217136)
4	4221470	2	Clamp	(SUB FOR AT178200)
23	4377218	1	Hose	(SUB FOR AT178201)(AIR)
24	8067486	1	Air Intake Stack	(SUB FOR AT178202)(AIR)
25	AT178203	1	Hose	(AIR)
35	19M7402	4	Cap Screw	M10 X 25
36	12M7066	4	Lock Washer	10 mm
37	14M7274	4	Nut	M10
46	AT53440	3	Clamp	(SUB FOR AT53438, THIS APPLICATION)
47	AT56657	1	Hose Clamp	(SUB FOR RE19429, THIS APPLICATION)
48	19M8011	2	Cap Screw	M12 X 30
48	24M7047	2	Washer	13 X 24 X 2.500 mm
48	12H301	2	Lock Washer	1/2"
49	8067490	1	Bracket	(SUB FOR AT178204)
50	12M7058	3	Lock Washer	12 mm, (SUB FOR 12M7067)
50	24H1748	3	Washer	1/2" X 1-1/4" X 0.105"
50	19M8011	3	Cap Screw	M12 X 30
51	4330083	1	Screen	(SUB FOR AT202329)
1A	-	1	Part 2	(NOT AVAILABLE FOR SERVICE)
1B	AT179370	1	Filter Element	(INNER)
1C	AT179371	1	Filter Element	(OUTER)
1D	4337642	1	Nut	(SUB FOR AH20849, THIS APPLICATION ) (SUB FOR AT166137)
1E	4257360	1	Nut	(SUB FOR AT200998)
1F	4297292	1	Cover	(SUB FOR AT201034)
1G	AR73234	1	Wing Nut	11.125 mm (7/16"), (SUB FOR AR73234, THIS APPLICATION)
1H	P46402	1	Snap Ring	-
1I	4257362	1	Gasket	(SUB FOR AT200999)
1J	4152863	1	Flow Control Hyd. Valve	(SUB FOR TH111700)
1K	4224238	1	Indicator	(SUB FOR AT131922)

AIR CLEANER (SN 007001- ) (007001 - )
