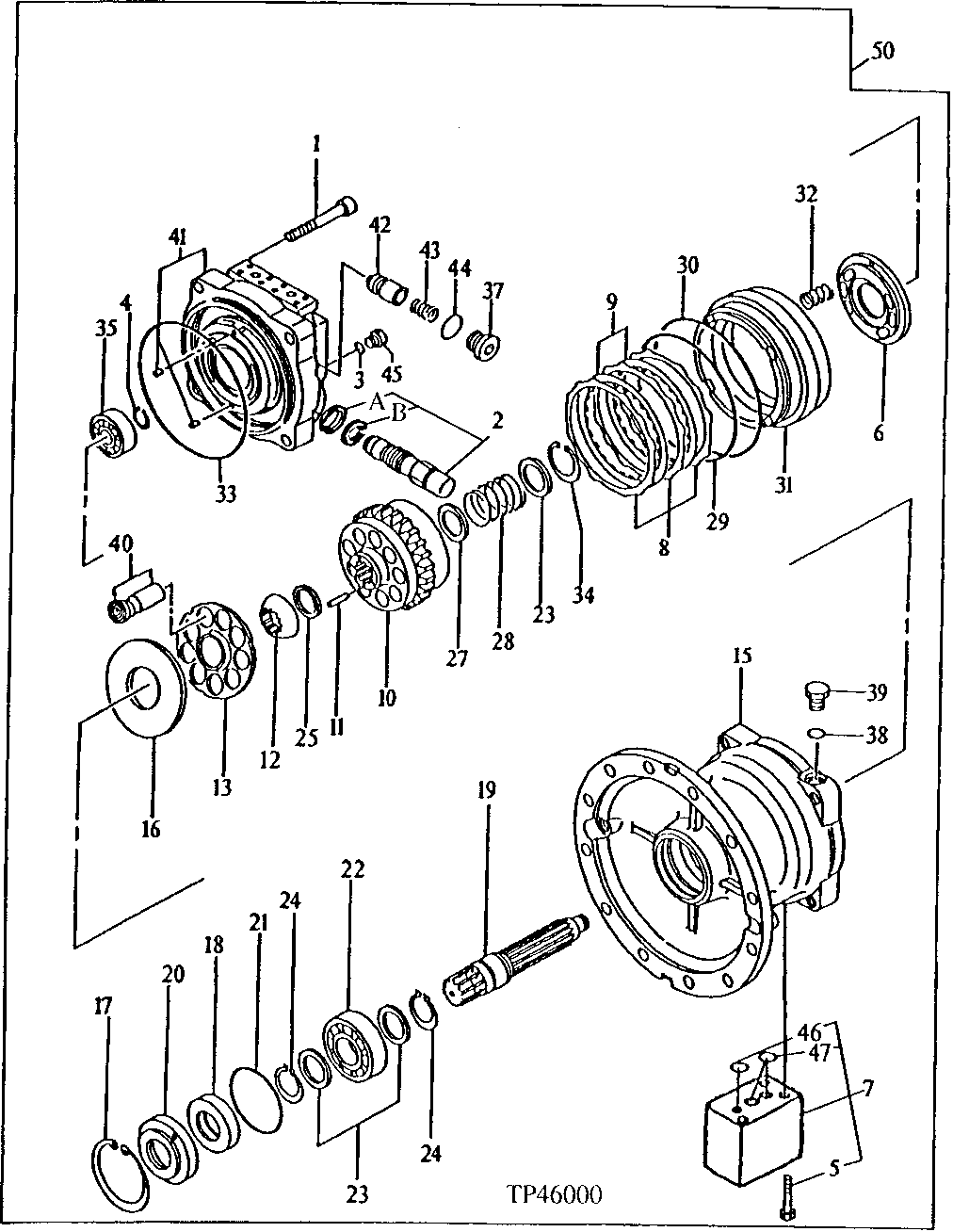

SWING MOTOR (SERIAL NO. 005054- ) [03J19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	0365318	4	Screw	(SUB FOR AT128294)
2	4278501	2	Pressure Relief Valve	(SUB FOR AT130948)
3	M800650	2	Packing	-
4	40M7195	1	Snap Ring	(SUB FOR 40M1828)
5	19M7685	3	Cap Screw	M6 X 70
6	0365315	1	PLATE	(SUB FOR AT128291)
7	0365303	1	Flow Control Hyd. Valve	(SUB FOR TH112031)
8	0365333	3	Plate	(SUB FOR AT128305)
9	0365332	2	Plate	(SUB FOR AT128304)
10	0365307	1	Cylinder	(SUB FOR AT128283)
11	0365310	12	Pin	(SUB FOR AT128286)
12	0365308	1	Bushing	(SUB FOR AT128284)
13	0365313	1	Pressed Flanged Housing	(SUB FOR AT128289)
15	0401201	1	HOUSING	(SUB FOR AT130949)
16	0365314	1	Washer	(SUB FOR AT128290)
17	40M7118	1	Snap Ring	-
18	0353318	1	Seal	(SUB FOR AT132386)
19	0365305	1	Shaft	(SUB FOR AT128281)
20	0365317	1	Cover	(SUB FOR AT128293)
21	AT264319	1	O-Ring	(SUB FOR T110447)
22	0365323	1	Cylindrical Roller Bearing	(SUB FOR AT128298)
23	0365312	3	Washer	(SUB FOR AT128288)
24	40M7047	2	Snap Ring	-
25	0365311	1	Washer	(SUB FOR AT128287)
27	0365312	1	Washer	(SUB FOR AT128288)
28	0365309	1	Spring	(SUB FOR AT128285)
29	4S00219	1	O-Ring	(SUB FOR AT128303)
30	0308623	1	O-Ring	(SUB FOR TH109953)
31	0365329	1	PISTON	(SUB FOR AT128302)
32	0365331	20	Spring	(SUB FOR TH112060)
33	4S00614	1	O-RING	(SUB FOR AT130950, AT132162, 0125431 OR 4323631)
34	40M7201	1	Snap Ring	-
35	0365324	1	Bearing	(SUB FOR TH112052)
37	15M7027	2	Drain Plug	-
38	M800650	1	Packing	-
39	0236014	1	Fitting Plug	(SUB FOR TH102650)
40	0365301	9	PISTON	(SUB FOR AT128278)
41	0365302	1	Housing	(SUB FOR AT128279)
42	0236006	2	Plunger	(SUB FOR TH102635)
43	0236009	2	Spring	(SUB FOR TH102638)
44	AT264347	2	O-Ring	(SUB FOR TH112055, TH100136, 4506428)
45	0236014	2	Fitting Plug	(SUB FOR TH102650)
46	4506406	1	O-Ring	5.800 X 1.900 MM (0.228" X 0.075") (SUB FOR T150997) (SUB FOR TH104587)
47	CH10568	2	Packing	(SUB FOR T150996)
50	4246413EX	1	HYDRAULIC MOTOR REMAN	(SUB FOR AT130874) (USE IF AVAILABLE) (IF AT130874 NOT AVAILABLE, SUB AT217355)
50	4246413EX	1	HYDRAULIC MOTOR REMAN	(REMANUFACTURED) (SUB FOR AT130874) (SUB FOR AT217355)
2A	A811030	1	O-Ring	29.400 X 3.100 MM (1.157" X 0.122") (SUB FOR TH101300)
2B	4284569	1	Back-Up Ring	(SUB FOR AT168851)

SWING MOTOR (SERIAL NO. 005054- ) [03J19]
