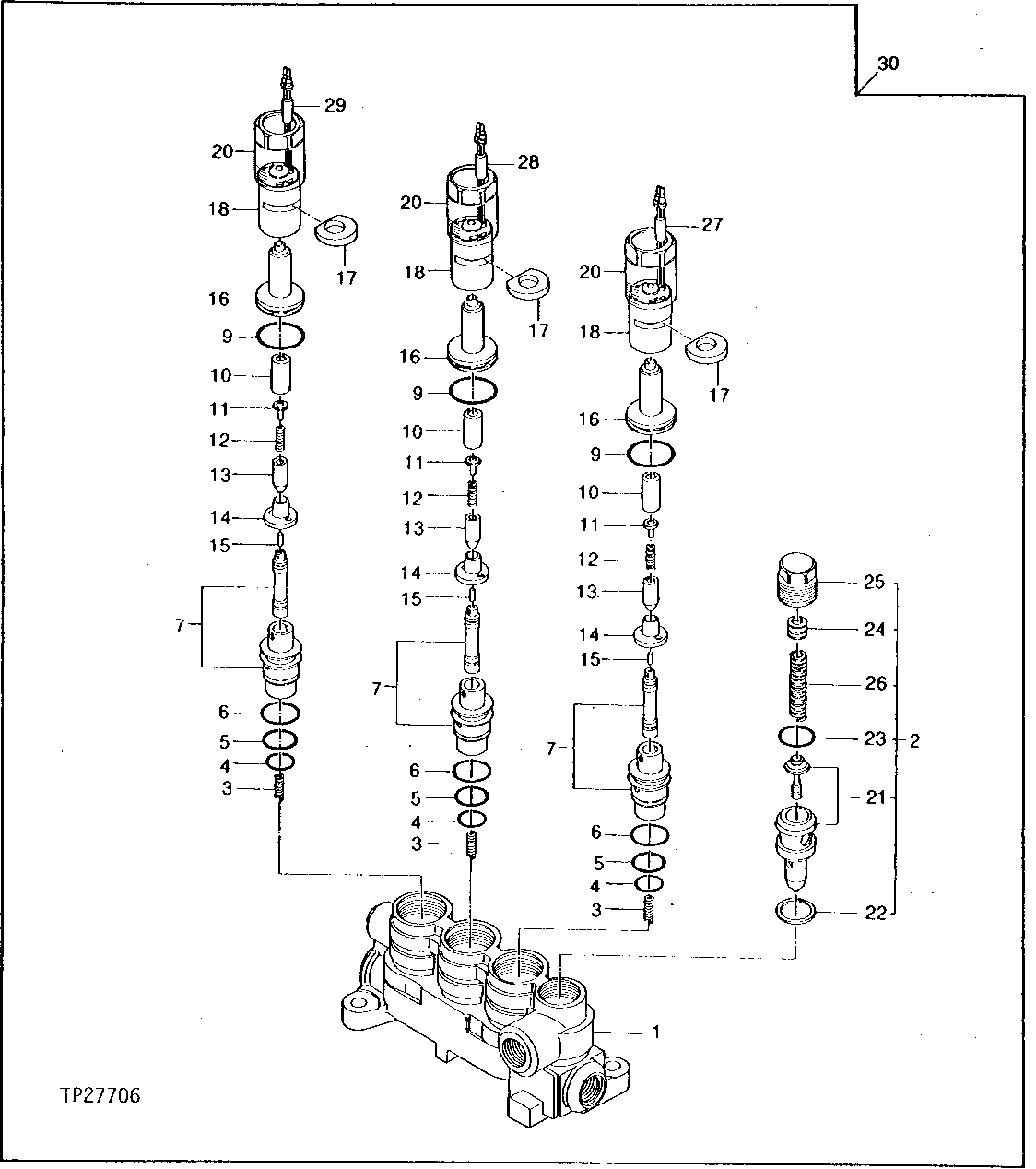

SOLENOID VALVE (FOR AUTO IDLE AND PUMP CONTROL WITH PILOT PRESSURE REGULATOR) [03E23]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SUB AT131812) ( TH109249 NO LONGER AVAILABLE)
2	-	1	Part 2	PILOT PRESSURE REGULATOR ( TH109250 NO LONGER AVAILABLE)
3	0308711	3	Spring	(SUB FOR TH109259)
4	CH11570	3	O-Ring	-
5	985099	3	O-Ring	(SUB FOR TH101479)
6	AT264333	3	O-Ring	(SUB FOR TH100096)
7	-	3	Part 7	( TH109260 NO LONGER AVAILABLE)
9	0308713	3	O-Ring	(SUB FOR TH109261)
10	-	3	Part 9	( 0308714 NO LONGER AVAILABLE) (SUB FOR TH109262)
10	4488303	3	Line	-
11	4488306	3	Valve Seat	(SUB FOR TH109263, 0308715 OR 4605187)
12	4488310	3	Spring	(SUB FOR TH109264 OR 0308716)
13	0308717	3	PLUNGER	(SUB FOR TH109265)
14	0308718	3	Stop	(SUB FOR TH109266)
15	4488302	3	Rod	(SUB FOR 0308719) (SUB FOR TH109267)
16	-	3	Part 16	(SUB AT131812) ( TH109268 NO LONGER AVAILABLE)
17	4488304	3	Spacer	(SUB FOR TH109269 OR 0308721)
18	0308722	3	Solenoid	(SUB FOR TH109270)
20	0308724	3	Screw	(SUB FOR TH109272)
21	-	1	Part 20	( TH109251 NO LONGER AVAILABLE)
22	4487648	1	Gasket	(SUB FOR TH109252 OR 0308704)
23	4487138	1	O-Ring	(SUB FOR TH109253 OR 0308705)
24	-	1	Part 23	(K) (SUB AT146246) ( TH109254 NO LONGER AVAILABLE)
24	-	1	Part 24	(K) (SUB AT146246) ( TH109255 NO LONGER AVAILABLE)
24	-	1	Part 25	(K) (SUB AT146246) ( TH109256 NO LONGER AVAILABLE)
25	-	1	Part 26	( TH109257 NO LONGER AVAILABLE)
26	0308710	1	Spring	(SUB FOR TH109258)
27	-	1	Part 28	( TH109273 NO LONGER AVAILABLE) (SUB STANDARD ELECTRICAL VINYL TAPE CUT TO LENGTH)
28	-	1	Part 29	( TH109274 NO LONGER AVAILABLE) (SUB STANDARD ELECTRICAL VINYL TAPE CUT TO LENGTH)
29	-	1	Part 30	( TH109275 NO LONGER AVAILABLE) (SUB STANDARD ELECTRICAL VINYL TAPE CUT TO LENGTH)
30	4207082	1	SOLENOID VALVE	(SUB FOR AT131812)

SOLENOID VALVE (FOR AUTO IDLE AND PUMP CONTROL WITH PILOT PRESSURE REGULATOR) [03E23]

Нет текстового описания
