SEAT AND SEAT SUPPORT [02B17]

SEAT AND SEAT SUPPORT [02B17]

SEAT AND SEAT SUPPORT [02B17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

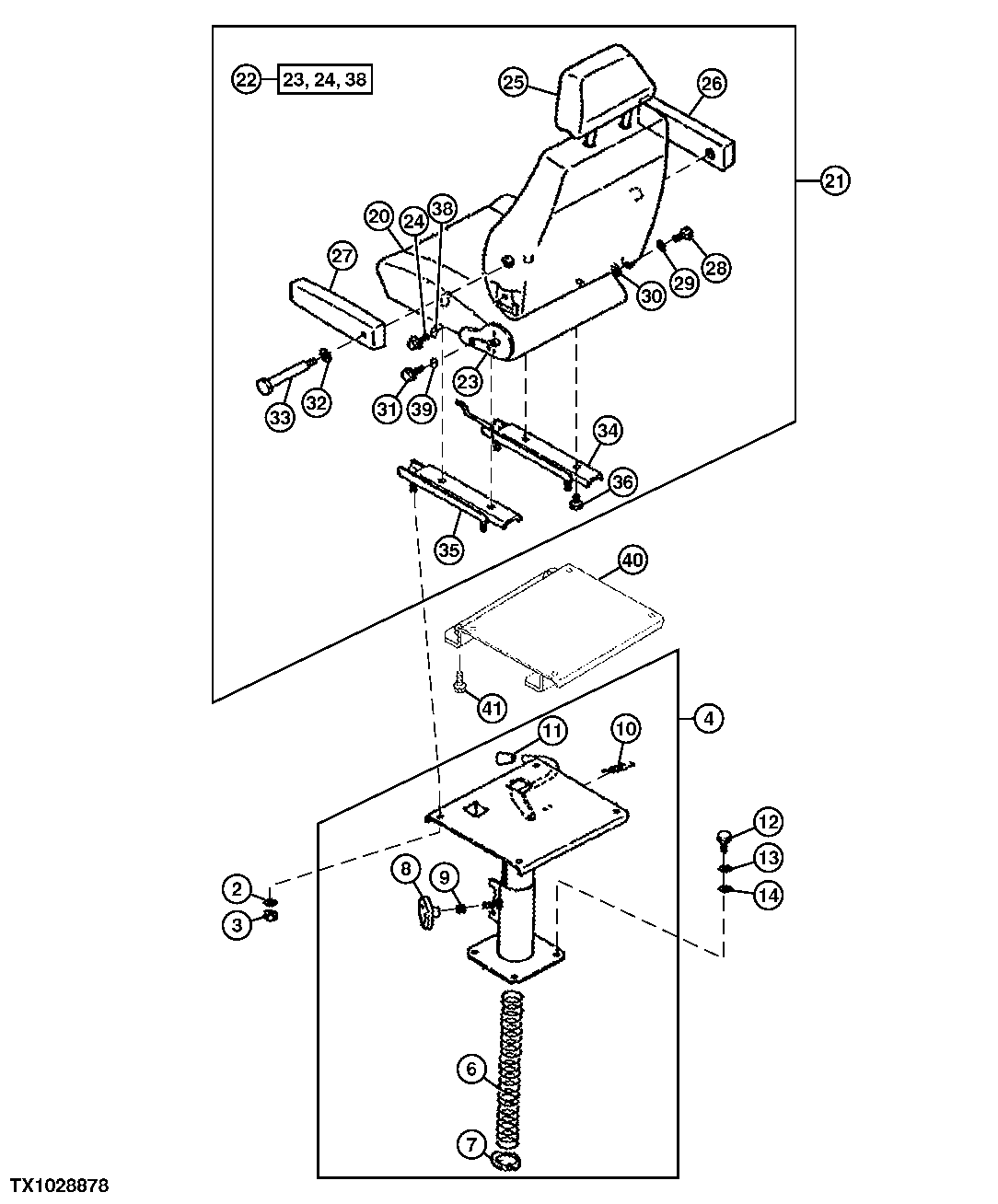

SEAT AND SEAT SUPPORT [02B17]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	12M7056	4	Lock Washer	8 MM, (SUB FOR 12M7065)
3	14M7273	4	Nut	M8
4	4178550	1	Stand	(SUB FOR TH108740)
6	4206087	1	SPRING	(SUB FOR TH108741)
7	3039222	1	PLATE	(SUB FOR TH108742)
8	3039223	1	KNOB	(SUB FOR TH108743)
9	3039221	1	Spring	(SUB FOR TH108744)
10	3030268	1	EXTENSION SPRING	(SUB FOR TH101616)
11	3030267	1	GRIP	(SUB FOR TH101615)
12	19M7402	4	Cap Screw	M10 X 25
13	12M7066	4	Lock Washer	10 MM
14	24M7028	4	Washer	10.500 X 20 X 2 MM
20	0368101	1	CUSHION	(SUB FOR AT126054)
21	-	1	Part 14	( 4230833 NLA) (VINYL) (WITH HEADREST) (SUB FOR TH112076) (SUB 4679327 ALONG WITH (4) 19M7139, (4) 24M7055, (1) 8112099)
21	-	1	Part 15	(VINYL) (WITHOUT HEADREST) ( AT168202 NO LONGER AVAILABLE)
21	4679327	1	Seat Assembly	(VINYL) (WITH HEADREST) (SUB FOR 4230833) (ALONG WITH (4) 19M7139 AND (4) 24M7055)
22	0368102	1	SEAT BACK	(SUB FOR AT126055) (USE WITH TH112076 SEAT WITH HEADREST)
22	0368102	1	SEAT BACK	(SUB FOR AT168203, 4331470 OR AT126055) (USE WITH AT168202 SEAT WITHOUT HEADREST)
23	0340803	1	ADJUSTER	(SUB FOR TH111648)
24	19M7402	2	Cap Screw	M10 X 25, (SUB FOR TH104152, ALONG WITH 12M7066)
25	0368103	1	HEAD RESTRAINT	(SUB FOR AT126056) (FOR USE WITH TH112076 SEAT)
26	0368104	1	ARM	RIGHT, (SUB FOR AT126057)
27	0368105	1	ARM	LEFT, (SUB FOR AT126058)
28	0262709	1	BOLT	(SUB FOR TH104153)
29	0262710	1	WASHER	(SUB FOR TH104154)
30	12M7056	1	Lock Washer	8 MM, (SUB FOR TH104155) (SUB FOR 12M7065)
31	19M7402	2	Cap Screw	M10 X 25, (SUB FOR TH104152, ALONG WITH 12M7066)
32	0262710	2	WASHER	(SUB FOR TH104154)
33	0340807	2	BOLT	RIGHT, (SUB FOR TH111652)
34	0368106	1	ADJUSTER	LEFT, (SUB FOR AT126059)
35	0304003	1	ADJUSTER	(SUB FOR TH107001)
36	0340808	4	SCREW	(SUB FOR TH111653)
37	AT37833	1	SEAT BELT	(NOT ILLUSTRATED) (ALSO ORDER T103486) WHOLEGOODS
37	T103486	1	BOLT	(NOT ILLUSTRATED)
38	12M7066	2	Lock Washer	10 MM
39	12M7066	2	Lock Washer	10 MM
40	8112099	1	Bracket	-
41	-	4	Part 38	( J260820 NLA)
41	19M7139	4	Cap Screw	(SUB FOR J900820)
41	24M7055	4	Washer	(SUB FOR A590108)
