RETURN HOSES AND LINES [03G11]

RETURN HOSES AND LINES [03G11]

RETURN HOSES AND LINES [03G11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

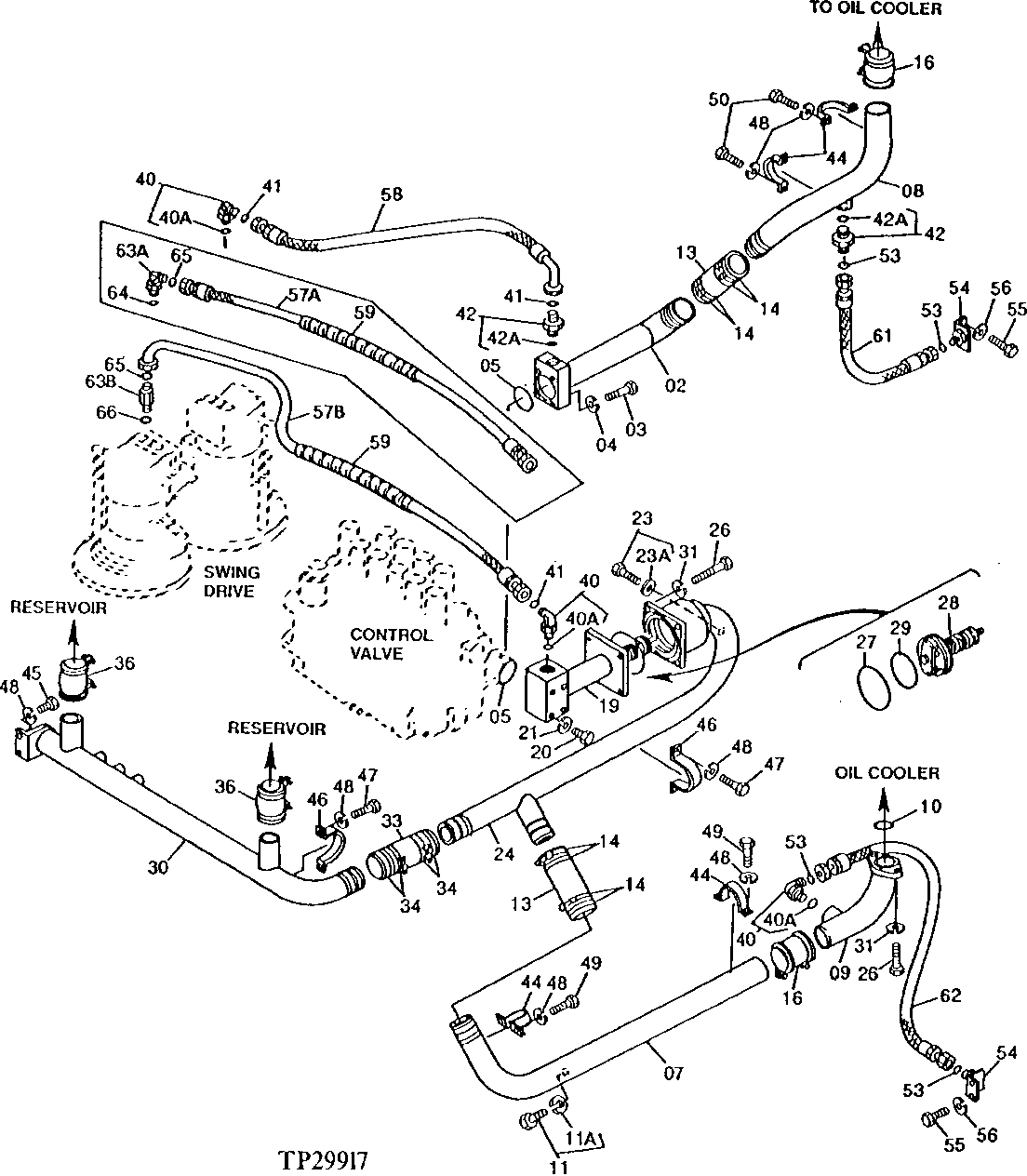

RETURN HOSES AND LINES [03G11]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	8045108	1	LINE	(SUB FOR AT132111)
3	19M8566	4	Cap Screw	M14 X 75, (SUB FOR AT131542)
4	12H317	4	Lock Washer	9/16"
5	CH11572	2	Packing	-
7	8045109	1	LINE	(SUB FOR AT132112)
8	8045110	1	LINE	(SUB FOR AT132583)
9	8039295	1	LINE	(SUB FOR AT132113)
10	CH11571	1	Packing	-
11	AT318013	1	Drain Plug	(SUB FOR 4093624) (SUB FOR TH103949) (SUB FOR TH102536)
13	4094001	2	Hose	(SUB FOR TH103728)
14	AT39141	8	Hose Clamp	(SUB FOR TH108308 OR AH104837, THIS APPLICATION)
16	4067833	2	Coupling	(SUB FOR TH101934)
16	4196261	2	Seal	(SUB FOR TH106968)
19	8039297	1	OIL LINE	(SUB FOR AT132077)
20	J901403	4	Bolt	(SUB FOR AT131541)
21	12H317	4	Lock Washer	9/16"
23	4154693	1	Fitting Plug	(SUB FOR AT132493)
24	8044303	1	LINE	(SUB FOR AT132580)
26	19M7493	6	Cap Screw	M12 X 40
27	CH17213	1	Packing	-
28	4433094	1	FLOW CONTROL HYD. VALVE	(SUB FOR AT131808)
29	CH13522	1	Packing	-
30	8041635	1	LINE	(SUB FOR AT132090)
31	12H301	6	Lock Washer	1/2"
33	4167091	1	Hose	(SUB FOR AT131686) (SUB FOR TH101901)
34	AT50923	4	Hose Clamp	-
36	4067833	2	Coupling	(SUB FOR TH101934)
36	4196261	2	Seal	(SUB FOR TH106968)
40	A853388	3	Elbow Fitting	(SUB FOR TH108325 OR 4198799)
41	T76938	3	O-Ring	(SUB FOR TH108326)
42	4189535	2	Adapter Fitting	(SUB FOR AT114853)
44	4053865	4	Clamp	(SUB FOR TH103646)
45	19M8324	2	Cap Screw	M10 X 16
46	4000909	2	Clamp	(SUB FOR TH101935)
47	19M7662	4	Cap Screw	M10 X 30
48	12M7066	14	Lock Washer	10 MM
49	19M7662	4	Cap Screw	M10 X 30
50	19M7662	4	Cap Screw	M10 X 30
53	T76938	4	O-Ring	(SUB FOR TH108326)
54	9730687	2	BRACKET	(SUB FOR AT132141)
55	19M7872	4	Cap Screw	M12 X 25
56	12H301	4	Lock Washer	1/2"
58	AT131931	1	HYDRAULIC HOSE - FABRICATE	-
59	-	1	Part 50	(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR TH100996 OR AT138222)
61	AT131987	1	HYDRAULIC HOSE - FABRICATE	1-7/16" X 950 MM (37-1/2") X 1-7/16"
62	AT131988	1	HYDRAULIC HOSE - FABRICATE	1-7/16" X 1 100 MM (43-1/4") X 1-7/16"
64	TH101926	1	O-Ring	-
65	T76938	1	O-Ring	-
66	TH101926	1	O-Ring	-
11A	M800650	1	Packing	-
23A	970860	1	O-Ring	(SUB FOR TH104634)
40A	TH101926	1	O-Ring	-
42A	TH101926	1	O-Ring	-
57A	4252493	1	ADAPTER FITTING	(SUB FOR 4227091) (ALSO ORDER AT130888)
57B	AT130888	1	HYDRAULIC HOSE - FABRICATE	1-7/16" X 1 100 MM (43-1/4") X 1-7/16"
63A	A853388	1	Elbow Fitting	(SUB FOR TH108325 OR 4198799)
63B	4252493	1	ADAPTER FITTING	(SUB FOR AT130887)
