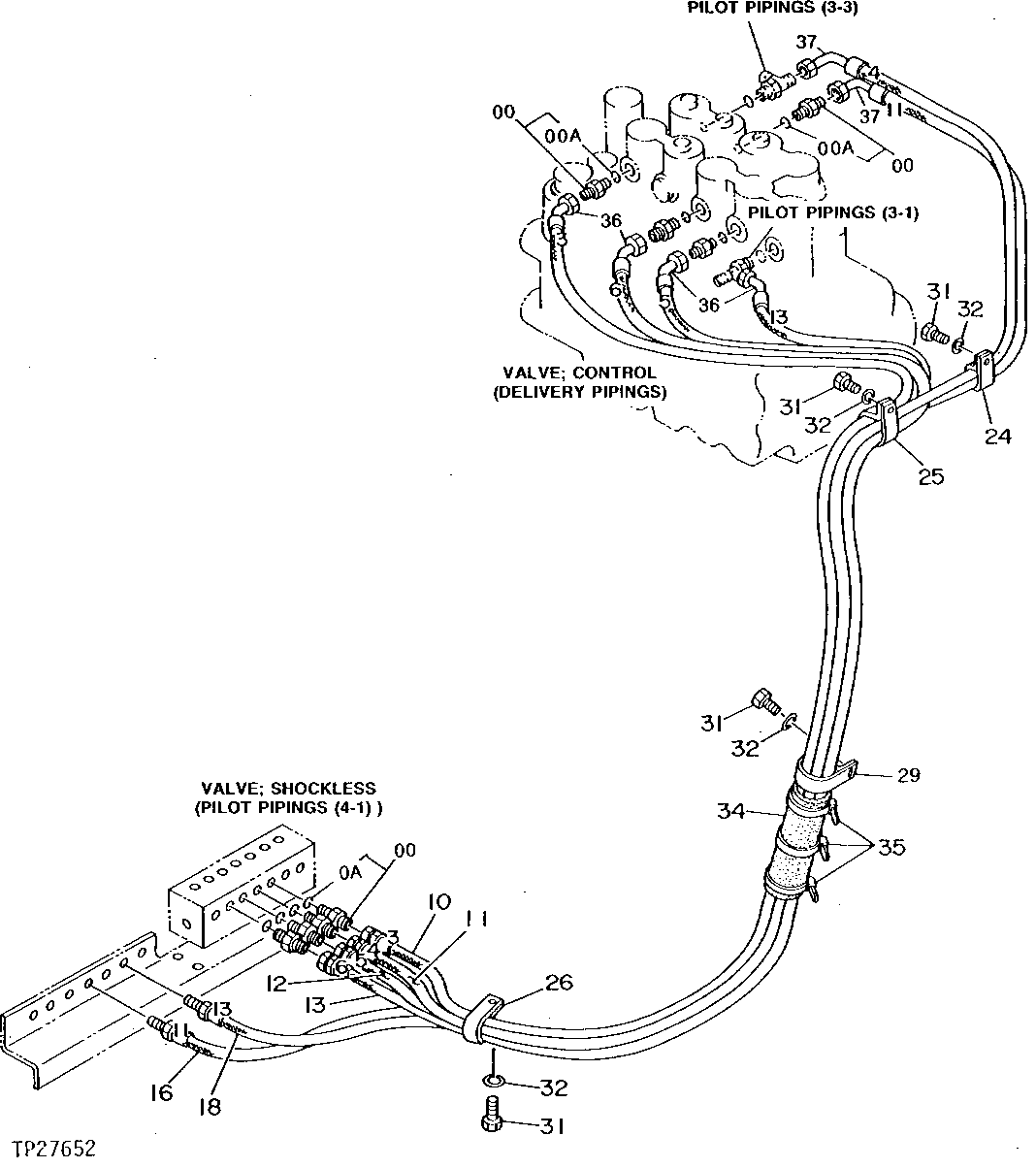

PILOT HYDRAULIC HOSES AND LINES [03I03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4200466	8	Adapter Fitting	(SUB FOR TH108320)
10	AH89075	1	Hydraulic Hose	(SUB FOR 4217359 ALONG WITH AU43156)
11	AA36172	1	HYDRAULIC HOSE	(SUB FOR 4217361 ALONG WITH AE24616)
12	AT130684	1	Hydraulic Hose	(SUB FOR 4217362 ALONG WITH AU43156)
13	AH89075	1	Hydraulic Hose	(SUB FOR 4217363 ALONG WITH AU43156)
16	AA36172	1	HYDRAULIC HOSE	(SUB FOR 4217368 ALONG WITH AE24616, R27238 AND 14H832)
16	R27238	1	Fitting	-
16	14H832	1	Nut	9/16"
18	R27238	1	Fitting	-
18	14H832	1	Nut	9/16"
18	AT130684	1	Hydraulic Hose	(SUB FOR 4217370 ALONG WITH AU43156, R27238 AND 14H832)
24	M45242	1	Clamp	(SUB FOR TH108321) (SUB FOR 4190292)
25	XCL-29	1	Hose Clamp	(SUB FOR TH110522 OR 4193848)
26	XCL-29	1	Hose Clamp	(SUB FOR AT131725, TH110522 OR 4193848)
29	R134002	1	Clamp	(SUB FOR TH111255) (SUB FOR 4193816)
31	19M8324	4	Cap Screw	M10 X 16
32	12M7066	4	Lock Washer	10 MM
34	4155962	1	Isolator	(SUB FOR AT131714)
35	H77698	3	Tie Band	-
36	AU43156	4	Elbow Fitting	-
37	AE24616	2	Elbow Fitting	-
0A	CH11570	1	O-Ring	-

PILOT HYDRAULIC HOSES AND LINES [03I03]
