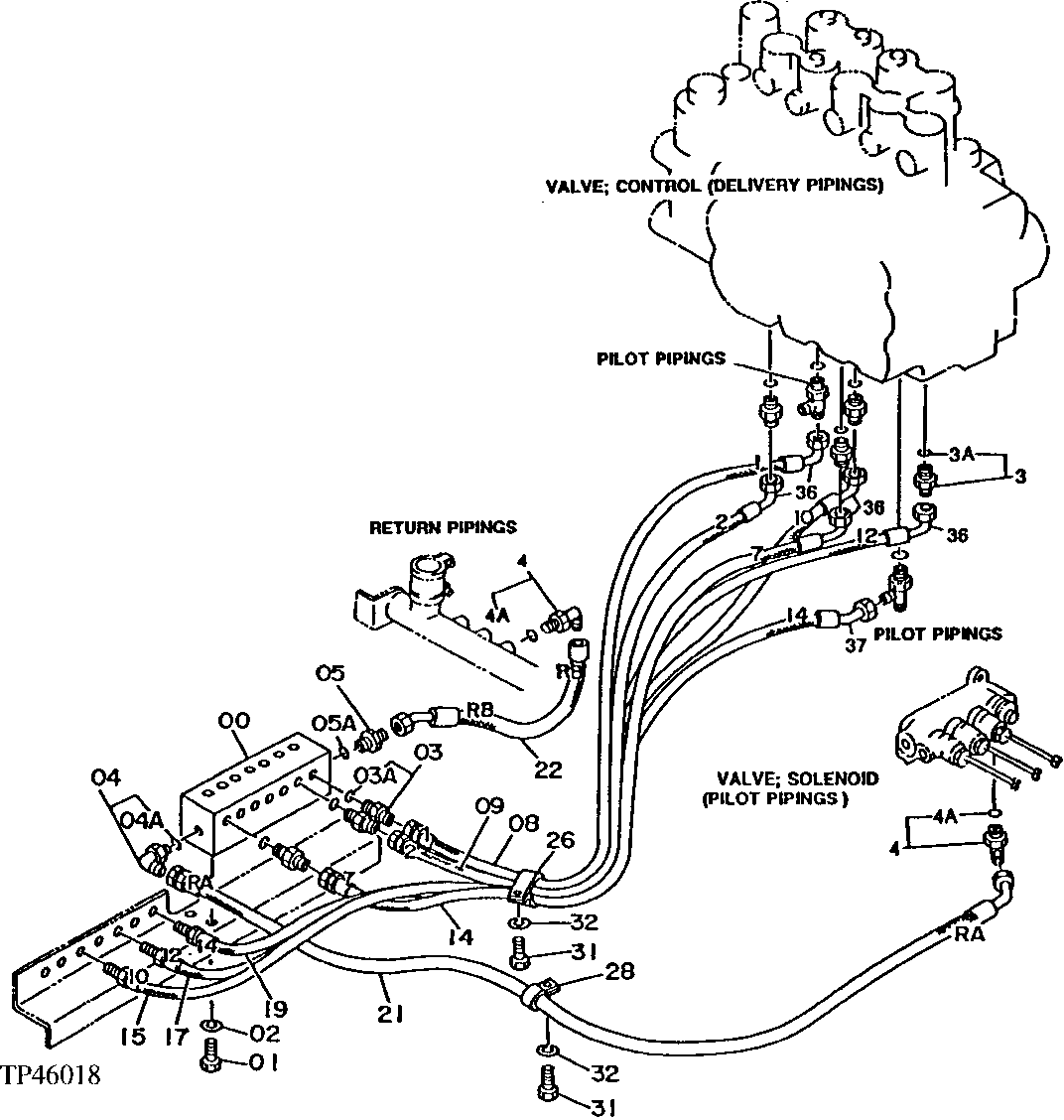

PILOT HYDRAULIC HOSES AND LINES [03I01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4224218	1	HYD ACTUATED CONTROL VALVE	(SUB FOR AT131919)
1	19M7938	4	Cap Screw	M10 X 20
2	12M7066	4	Lock Washer	10 MM
3	4200466	7	Adapter Fitting	(SUB FOR TH108320)
4	4154672	3	Elbow Fitting	(SUB FOR TH101008)
5	X8-10F5OX	1	Adapter Fitting	(SUB FOR TH110204 OR TH101006 ALONG WITH U46489)
8	AE42000	1	Hydraulic Hose	(SUB FOR 4217358 ALONG WITH AE24616)
9	AH99310	1	Hydraulic Hose	(SUB FOR 4217359 ALONG WITH AE24616)
14	AH99310	1	Hydraulic Hose	(SUB FOR 4217364 ALONG WITH AE24616)
15	14H832	1	Nut	9/16"
15	R27238	1	Fitting	-
15	AT130683	1	Hydraulic Hose	(SUB FOR 4217367) (ALSO ORDER R27238, 14H832 AND AE24616)
17	AT130683	1	Hydraulic Hose	(SUB FOR 4217369) (ALSO ORDER R27238, 14H832 AND AE24616)
17	R27238	1	Fitting	-
17	14H832	1	Nut	9/16"
19	AE42000	1	Hydraulic Hose	(SUB FOR 4217371 ALONG WITH AU43156, R27238 AND 14H832)
19	R27238	1	Fitting	-
19	14H832	1	Nut	9/16"
21	AT131875	1	HYDRAULIC HOSE - FABRICATE	(RA)
22	AT131877	1	HYDRAULIC HOSE - FABRICATE	(RB)
26	XCL-29	1	Hose Clamp	(SUB FOR AT131725, TH110522 OR 4193848)
28	T28949	1	Clamp	(SUB FOR TH108458 OR 4190274)
31	19M8324	2	Cap Screw	M10 X 16
32	12M7066	2	Lock Washer	10 MM
36	AE24616	5	Elbow Fitting	-
37	AU43156	1	Elbow Fitting	-
3A	CH11570	1	O-Ring	-
4A	4506418	1	O-Ring	(SUB FOR U46489)
5A	4506418	1	O-Ring	(SUB FOR U46489)

PILOT HYDRAULIC HOSES AND LINES [03I01]
