PILOT CONTROL VALVE (DIGGING FUNCTIONS) (VALVE SERIAL NO. -128882) [03E13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-	1	Part 1	( TH109211 NO LONGER AVAILABLE)
1	4201915	2	Spring	(SUB FOR TH109212)
2	4166686	2	Compression Spring	(SUB FOR TH109213)
3	4195421	2	Compression Spring	(SUB FOR TH109214)
4	4186544	2	Compression Spring	(SUB FOR TH109215)
5	4177777	4	Spacer	(SUB FOR TH109216)
6	4173208	20	Shim	(SUB FOR TH109217)
7	4179257	2	Guide	(SUB FOR TH109219) PORTS ONE AND THREE
8	4177896	2	Guide	(SUB FOR TH109218) PORTS TWO AND FOUR
11	-	2	Part 12	(SUB (2) 9104359, (2) 9104360 AND 4284175) PORTS ONE AND THREE ( 9089809 NO LONGER AVAILABLE)
12	-	2	Part 18	(SUB (2) 9104359, (2) 9104360 AND 4284175) PORTS TWO AND FOUR ( 9089808 NO LONGER AVAILABLE)
13	-	1	Part 24	( 4184930 NO LONGER AVAILABLE) (SUB 4284175, ALONG WITH (2) 9104359 AND (2) 9104360)
14	19M8440	2	Screw	M10 X 25
15	4184929	4	Piston	(SUB FOR TH109228)
16	CH11562	1	O-Ring	-
17	CH11571	1	Packing	-
18	4184954	1	Plate	(SUB FOR TH109229)
19	19M8168	1	Screw	M12 X 25
24	4285209	1	Universal Joint	(SUB FOR TH109230)
25	4184931	1	CAM	(SUB FOR TH109231)
26	4182067	1	Jointer	(SUB FOR TH109232)
30	AT189840	1	Hyd/Pilot Cntl Valve Reman	(USE AT131277 IF AVAILABLE) ( TH111710 NO LONGER AVAILABLE) (SUB FOR AT131277)
0A	-	1	Part 2	-
0B	-	4	Part 3	-
11A	-	1	Part 13	-
11B	4240150	1	Seal	(SUB FOR TH111960)
11C	U46166	1	O-Ring	-
11D	-	1	Part 16	-
11E	4240151	1	Seal	(SUB FOR TH109224)
12A	-	1	Part 19	-
12B	4240150	1	Seal	(SUB FOR TH111960)
12C	U46166	1	O-Ring	-
12D	-	1	Part 22	-
12E	4240151	1	Seal	(SUB FOR TH109224)

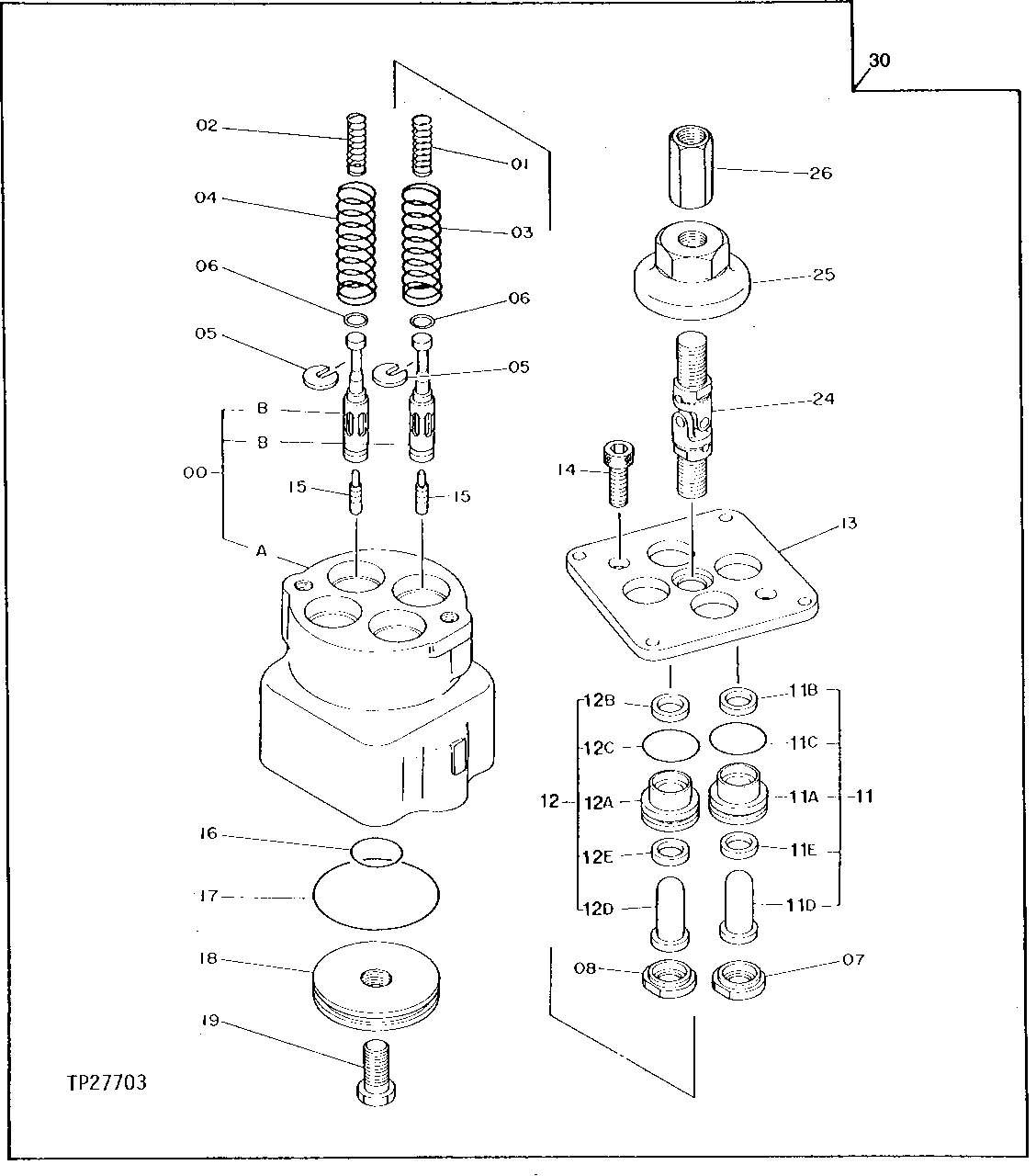

PILOT CONTROL VALVE (DIGGING FUNCTIONS) (VALVE SERIAL NO. -128882) [03E13]
