Открытый узел

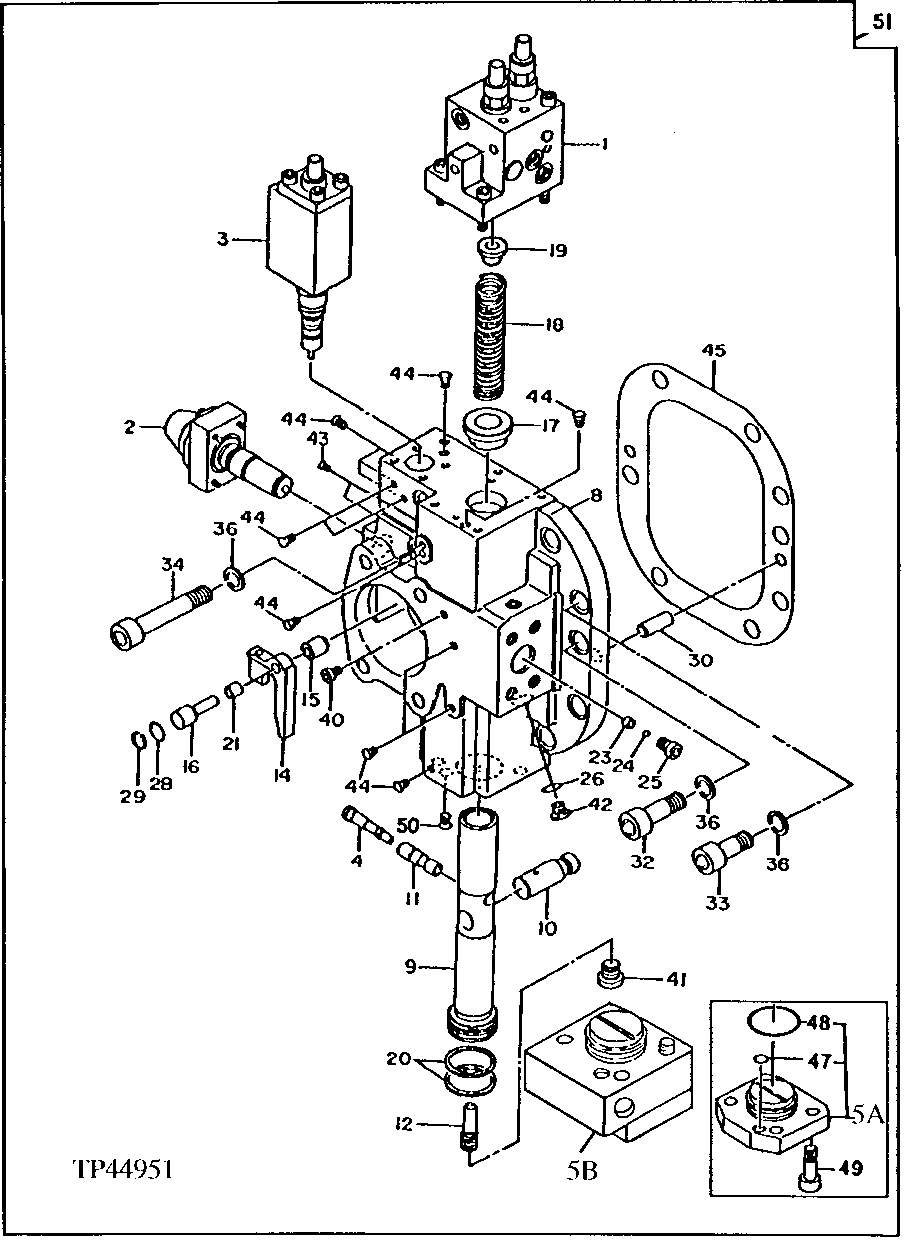

MAIN PUMP REGULATOR [02D15]

MAIN PUMP REGULATOR [02D15]

MAIN PUMP REGULATOR [02D15]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

MAIN PUMP REGULATOR [02D15]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4248178	1	REGULATOR	(SUB FOR AT132419)
2	4236048	1	CONTROL	(SUB FOR AT132408)
3	4236049	1	CONTROL	(SUB FOR AT132409)
4	-	1	Part 4	(SUB AT165396)
8	-	1	Part 7	(SUB AT165396)
9	-	1	Part 8	(SUB AT165396)
10	-	1	Part 9	(SUB AT165396)
11	-	1	Part 10	(SUB AT165396)
12	-	1	Part 11	(SUB AT165396)
14	0349801	1	HANGER	(SUB FOR AT132189)
15	0349802	1	BUSHING	(SUB FOR AT132190)
16	0349803	1	RETAINER	(SUB FOR AT132191)
17	0379301	1	RETAINER	(SUB FOR AT132394)
18	0349805	1	SPRING	(SUB FOR AT132192)
19	0349806	1	PLATE	(SUB FOR AT132193)
20	-	2	Part 18	(SUB AT165396)
21	0349807	1	SPACER	(SUB FOR AT132194)
23	0349808	1	GUIDE	(SUB FOR AT132195)
24	0349809	1	BALL	(SUB FOR AT132196)
25	0349810	1	PLUG	(SUB FOR AT132197)
26	M800650	1	Packing	-
28	CH14634	1	O-Ring	-
29	0349811	1	RING	(SUB FOR AT132198)
30	0254107	2	Pin	(SUB FOR TH104704)
32	0349812	1	BOLT	(SUB FOR AT132199)
33	M341850	6	Bolt	(SUB FOR AT132200) (SUB FOR AT131557)
34	0349814	1	BOLT	(SUB FOR AT132201)
36	0349815	8	WASHER	(SUB FOR AT132202)
40	0215015	1	Fitting Plug	(SUB FOR TH101443)
41	TH104732	1	Fitting Plug	(SUB FOR 0230126)
42	0215221	1	Pipe Plug	(SUB FOR TH101486)
43	-	1	Part 34	(SUB AT165396)
44	-	7	Part 35	(SUB AT165396)
45	0349817	1	PACKING	(SUB FOR AT132203)
47	CH17167	2	O-Ring	(ALSO APPLIES TO SERIAL NUMBERS 005339, 005340, 005341, 005343, 005345 AND 005346)
48	A811045R	1	O-Ring	(SUB FOR T74492 OR A811045) (ALSO APPLIES TO SERIAL NUMBERS 005339, 005340, 005341, 005343, 005345 AND 005346)
49	19M8041	4	Screw	M12 X 35, (SUB FOR AT127279) (ALSO APPLIES TO SERIAL NUMBERS 005339, 005340, 005341, 005343, 005345 AND 005346)
50	-	1	Part 40	(SUB AT165396)
51	4338135	1	REGULATOR	(SUB FOR AT132420) (SUB FOR AT165396) (ALSO APPLIES TO SERIAL NUMBERS 005339, 005340, 005341, 005343, 005345 AND 005346)
51	4338135	1	REGULATOR	(SUB FOR AT165396) (ALSO APPLIES TO SERIAL NUMBERS 005338, 005342 AND 005344)
5A	4337910	1	CAP	(SUB FOR AT132395) (SUB FOR AT164273) (ALSO APPLIES TO SERIAL NUMBERS 005339, 005340, 005341, 005343, 005345 AND 005346)
5B	4337908	1	COVER	(SUB FOR AT167093) (ALSO APPLIES TO SERIAL NUMBERS 005338, 005342 AND 005344)
