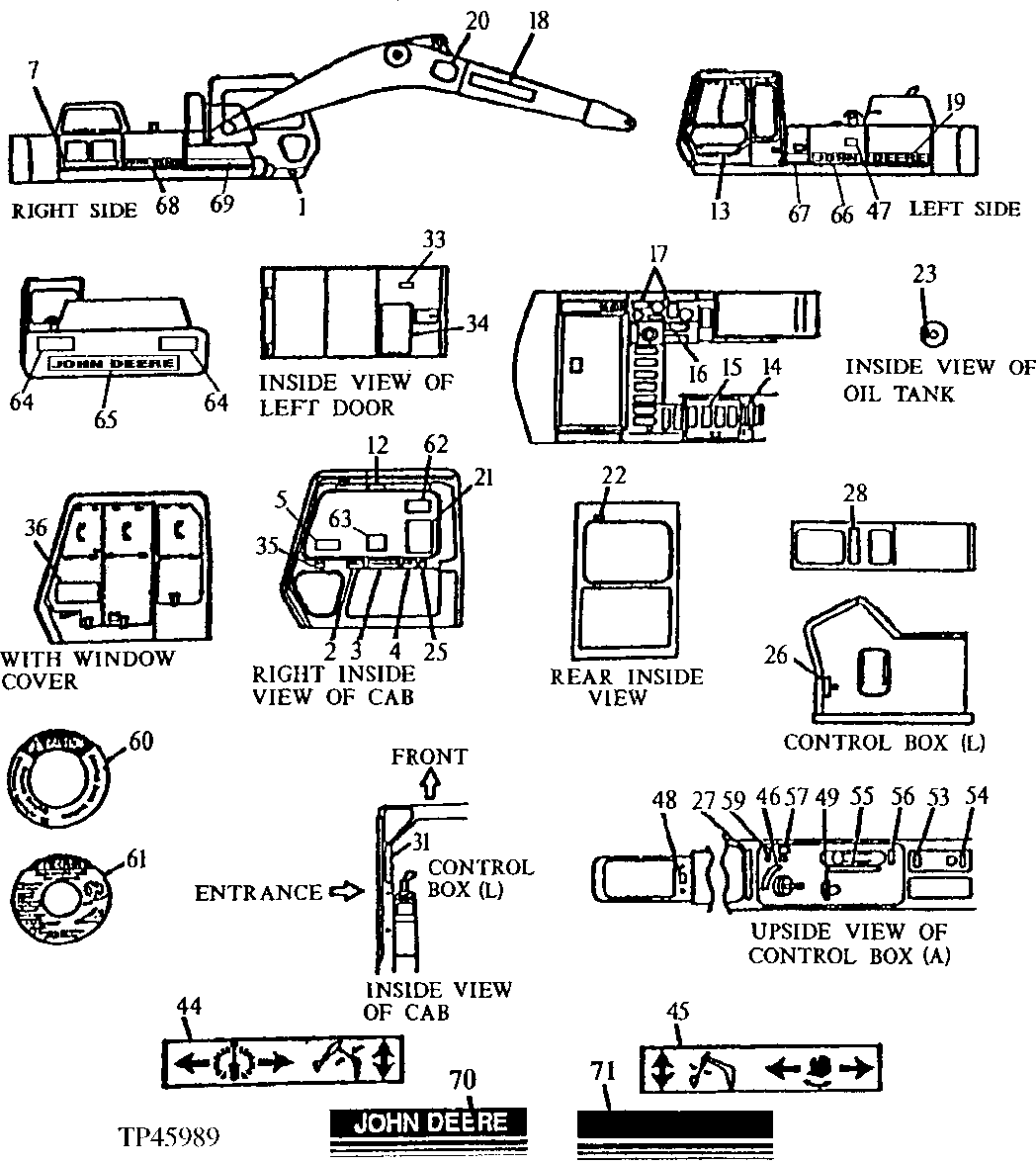

LABELS AND DECALS (SERIAL NO. 005361- ) [01G23]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	37H131	4	Screw	0.140" X 3/8"
2	T146667	1	Safety Sign	(SUB FOR T114392) (DANGER - ELECTROCUTION)
3	-	1	Part 4	(CAUTION - FRENCH) ( T138803 NO LONGER AVAILABLE)
3	T146666	1	Safety Sign	(CAUTION - ENGLISH) (SUB FOR T138801 OR T138835)
4	T107623	1	Label	ENGINE START AND STOP
5	T145372	1	Label	(BUCKET CLEARANCE)
7	T147093	1	LABEL	(STRIPE - RIGHT SIDE)
12	T146668	1	Safety Sign	WARNING, (SUB FOR T107627)
13	T119535	1	Label	(SUB FOR TH101411) (BUMPER)
14	H21259	2	Mat	ANTI-SKID, (SUB FOR TH110224)
15	H21259	17	Mat	ANTI-SKID
16	4252728	1	TAPE	ANTI-SKID, (SUB FOR AT132566)
17	H21259	2	Mat	ANTI-SKID
18	T147092	2	LABEL	(MODEL DESIGNATION)
19	T147098	1	Label	(DEERE - STRIPE LEFT SIDE)
20	JD5629	2	LABEL	LEAPING DEER
21	2028765	1	LABEL	LIFT CAPACITY, (SUB FOR T121725)
22	T146664	1	Safety Sign	WINDOW LOCK, (SUB FOR TH111901)
23	P63448	1	Label	OIL RESERVOIR FILL - PUMP BLEED, (SUB FOR T108113 OR AT155733)
25	T114427	1	Label	HEATER
25	T108114	1	LABEL	HEATER - AIR CONDITIONING
26	4149203	1	LABEL	GATE LOCK, (SUB FOR TH101569)
27	TH103404	1	Label	(RIGHT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)
28	TH103405	1	Label	(LEFT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)
31	H21259	1	Mat	ANTI-SKID
33	4241586	1	Label	(SUB FOR AT132146) (UP-DOWN FOR COUNTERWEIGHT REMOVAL)
34	2035490	1	LABEL	(SUB FOR T121724) (SUB FOR T145188) (PERIODIC MAINTENANCE)
35	4266386	1	Label	(SUB FOR T116735) (CAUTION - TRACK FRAME)
36	2025748	1	Label	WINDOW GUARD, (SUB FOR AT115040) (SEE VANDAL PROTECTION PAGE)
44	T159844	1	Label	(SUB FOR TH101630) (LEFT CONTROL LEVER - JOHN DEERE PATTERN) (YELLOW BACKGROUND)
45	T159843	1	Label	(SUB FOR TH103406) (RIGHT CONTROL LEVER - JOHN DEERE PATTERN) (YELLOW BACKGROUND)
46	4210026	1	Label	(SUB FOR T120640) IGNITION
47	4316863	1	LABEL	(SUB FOR AT158839) (OIL LEVEL)
48	4211092	1	Label	(SUB FOR TH110230) CHECK-BUZZER
49	4249734	1	LABEL	(SUB FOR AT128443) MODE SWITCH
53	4210039	1	LABEL	(SUB FOR TH111033) (ENGINE STOP)
54	4210040	1	Label	(SUB FOR T114455) START AID
55	4146722	1	LABEL	(SUB FOR TH100596) (THROTTLE - GRAPHIC)
56	4172040	1	Label	(SUB FOR T114454) THROTTLE
57	T108112	1	LABEL	PROPEL SPEED
59	4243261	1	LABEL	(SUB FOR AT128442) TRAVEL ALARM CANCEL
60	T147009	1	Label	(SUB FOR T108183) (RESERVOIR COVER)
61	T146671	1	Safety Sign	(SUB FOR T114488) (RADIATOR CAP)
62	AT131150	1	Label	(WARNING - REDUCED LIFT CAPACITIES)
63	AT131226	1	LABEL	(THUMB CONTROL, FOOT - FOR ROAD BUILDER UNIT)
63	AT131227	1	LABEL	(THUMB CONTROL, HAND - FOR ROAD BUILDER UNIT)
64	2035960R	2	SAFETY SIGN	(SUB FOR T114398, T147008 OR 2035960) (STAY CLEAR)
65	T147476	1	LABEL	(COUNTERWEIGHT - JOHN DEERE) (SUB FOR T147091, ALONG WITH T147475)
66	T147096	1	LABEL	(JOHN - STRIPE LEFT SIDE)
67	T147097	1	LABEL	(STRIPE LEFT SIDE)
68	T146531	1	Label	(SUB FOR T147094) (JOHN DEERE - STRIPE RIGHT SIDE)
69	T147095	1	LABEL	(STRIPE RIGHT SIDE)
71	T147475	1	LABEL	(COUNTERWEIGHT STRIPE) (SUB FOR T147091, ALONG WITH T147476)

LABELS AND DECALS (SERIAL NO. 005361- ) [01G23]
