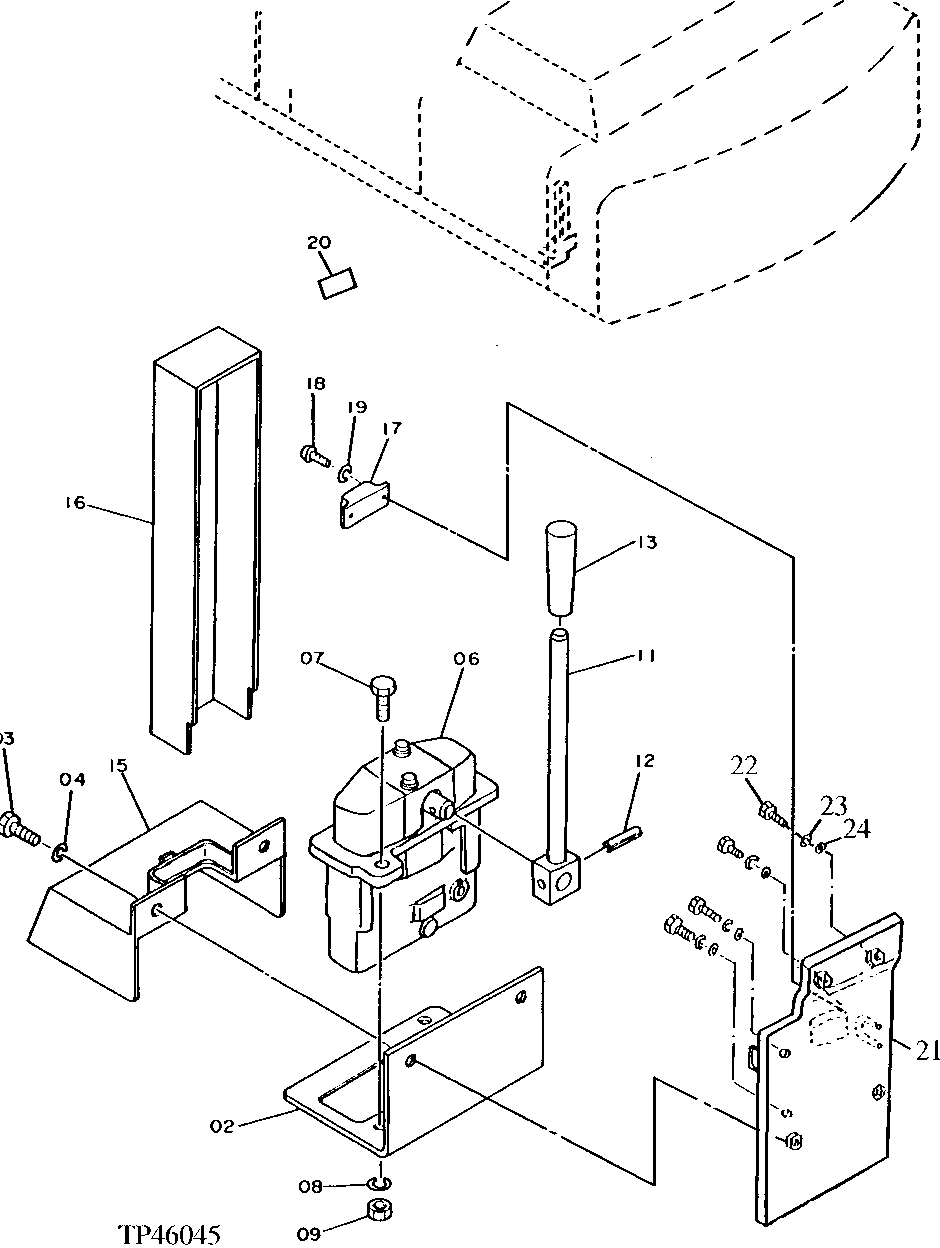

HYDRAULIC COUNTERWEIGHT REMOVAL CONTROL SYSTEM [03J03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	3046025	1	Bracket	(SUB FOR AT132476)
3	19M7402	2	Cap Screw	M10 X 25
4	12M7066	2	Lock Washer	10 MM
6	9074843	1	Hyd Actuated Control Valve	(SUB FOR AT128308) (SUB FOR TH110188)
7	19M7402	2	Cap Screw	M10 X 25
8	12M7066	2	Lock Washer	10 MM
9	14M7274	2	Nut	M10
11	9732429	1	Lever	(SUB FOR AT132598)
12	34M7134	1	Spring Pin	5 X 26 MM
13	4122424	1	Grip	(SUB FOR AT132489)
15	8044683	1	Cover	(SUB FOR AT132582)
16	4240984	1	Cover	(SUB FOR AT132549)
17	4240985	1	Catch	(SUB FOR AT132550)
18	21M7394	2	Screw	M3 X 10
19	12H233	2	Lock Washer	3.175 MM, (SUB FOR 12M7048)
20	4241586	1	Label	(SUB FOR AT132146) (UP-DOWN FOR COUNTERWEIGHT REMOVAL)
21	8046659	1	PLATE	(SUB FOR AT170011)
22	19M7872	4	Cap Screw	M12 X 25
23	12H301	4	Lock Washer	12.700 MM (1/2")
24	24M7047	4	Washer	13 X 24 X 2.500 MM (0.512" X 0.945" X 0.098")
25	AT131527	1	COUNTERWEIGHT	WHOLEGOODS (REMOVAL SYSTEM) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON OTHER PAGES)

HYDRAULIC COUNTERWEIGHT REMOVAL CONTROL SYSTEM [03J03]

Нет текстового описания
